Kemo electric fence Agricultural fence Working principle Current 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Pasture fence device FG 028
- For fence lengths of up to 5 km
- Pulse approx. 310 mJ, 12V
- Operation via car battery (car battery) or power supply
Technical specifications
- Power connection: 5.5 x 2.1 mm hollow plug
- High-voltage pulse sequence: approx. 2 s
- Output voltage: Max. approx. 8000 V/approx. 310 mJ
- Product type
Agricultural fence
- Suitable for
Inside/outside
- Working principle
Current
- Power supply
12 V
Rechargeable battery / mains
- Factory colour
Yellow
- Width
207 mm
- Height
93 mm
- Depth
158 mm
- Dim
(W x H x D) 207 x 93 x 158 mm
Documents & Downloads
Datasheet
Datasheet 1457253 Kemo electric fence Agricultural fence Working principle Current 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1457253 Kemo electric fence Agricultural fence Working principle Current 1 pc(s)
Description

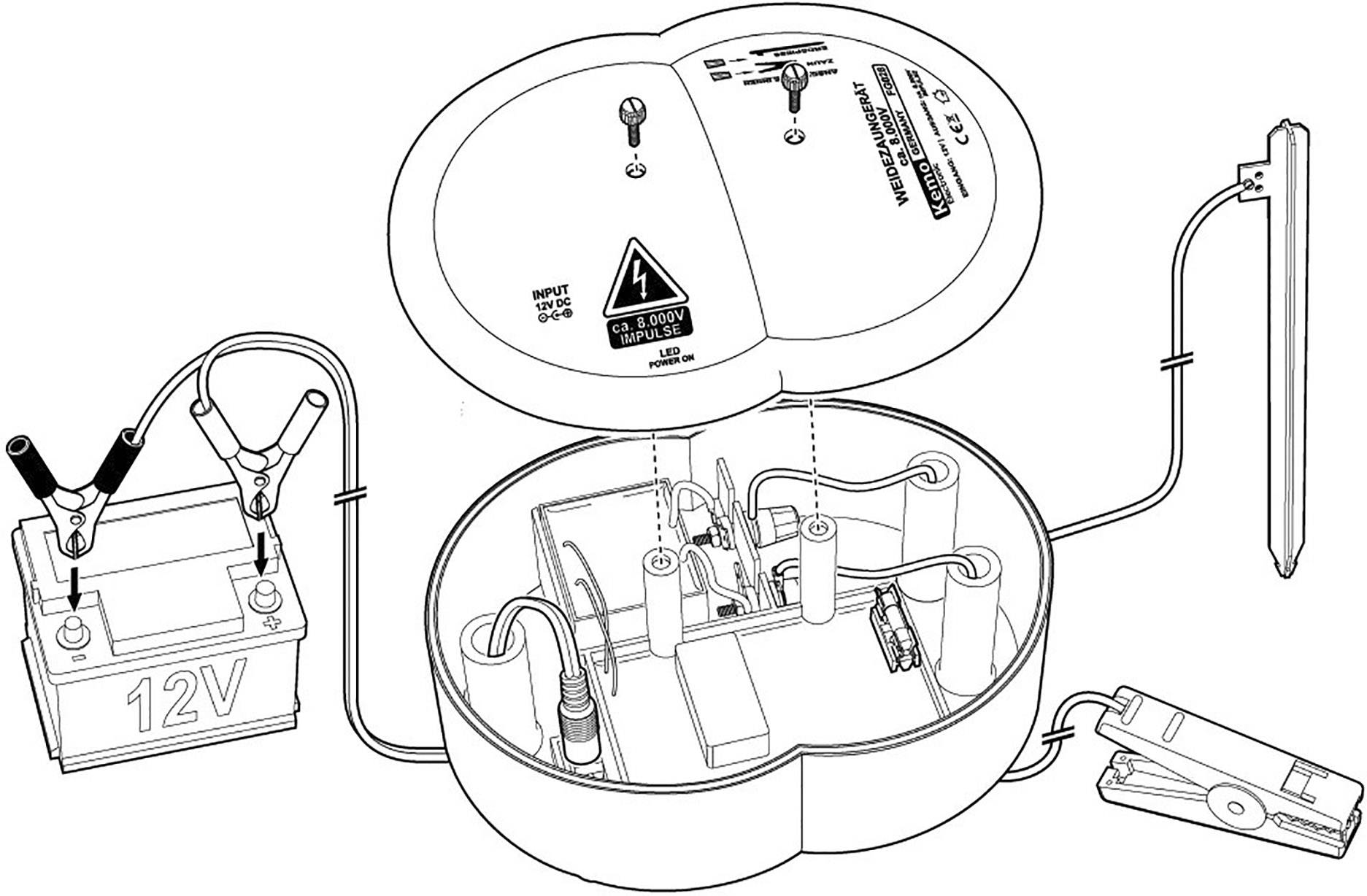

For pastures with larger animals (e.g. horses) with fence lengths of up to approx. 5 km (without vegetation). All connections are inside, thus well protected (the cables are routed through channels in the inside of the housing). Built-in deep discharge protection for 12 V battery. Very low power consumption (Ø approx. 45 mA). Connection cable for a car battery (battery not included) with a cable length of approx. 1.8 m with 2 connection clamps is included. Connection cable with clip for the electric fence is also included.
This text is machine translated.
This text is machine translated.
Features
- For fence lengths of up to 5 km
- Pulse approx. 310 mJ, 12V
- Low voltage disconnect
- Automatic cut-off at< 8.4 V battery voltage
- Operation via car battery (car battery) or power supply
- LED display
Scope of delivery
- Pasture fence device
- Connection cable with alligator clips 1.8 m
- Connection cable for electric fence
- User manual.
