Buy Kemo M034N Mono amp Component 6 V DC, 9 V DC, 12 V DC, 16 V DC 40 W 4 Ω

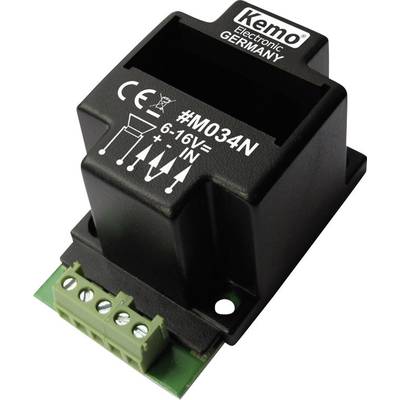

A black Kemo Electronic component with connection terminals, marked with 'M034N', for voltages ranging from 6 to 16 volts.

'Circuit diagram of an amplifier' shows connections: speaker, fuse, input, potentiometer. Operating voltage 6-16 V/DC.

1/2

Fast track dispatch on Mon, 14 Sep

78 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 24.36 / piece)

€ 24.36

plus VAT.

Report legal concerns

Highlights & Details

Kemo M034N Mono amp Component 6 V DC, 9 V DC, 12 V DC, 16 V DC 40 W 4 Ω

Extra cooling button is not required.
Secured against overheating and over charge

Technical specifications

4 - 8 O speaker connection
Frequency range of approximately 20 - 25000 Hz

Operating voltage: 6 - 16 V DC

Current consumption: 3000 mA

Output rating: 40 W

Version: Component

Dim: (L x W x H) 69 x 35 x 23 mm

Height: 23 mm

Length: 69 mm

Width: 35 mm

Impedance: 4 Ω

Output rating (max.): 40 W

Operating voltage: 6 V DC
9 V DC
12 V DC
16 V DC

Product type: Mono amp

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 191010 Kemo M034N Mono amp Component 6 V DC, 9 V DC, 12 V DC, 16 V DC 40 W 4 Ω

Conformity certificate

Conformity certificate 191010 Kemo M034N Mono amp Component 6 V DC, 9 V DC, 12 V DC, 16 V DC 40 W 4 Ω

Description

Sturdy amplifier module for multipurpose use as speaker-power amplifier. The module is cast moisture-proof and vibration-proof. The casting mass and module housing are made of a special highly heat conductive plastic. Which means that no additional heat sink is necessary. The module is electrically secured against overheating and overload.
