Kenwood JVC - Kenwood Electronics DMX5023DABS Schwarz 2 DIN 22 W NTSC PAL AAC FLAC MP3 Double DIN monitor receiver Andro
EAN:
Part number:
Item no:
Number
Total (€ 298.32 / piece)
€ 298.32
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Kenwood JVC - Kenwood Electronics DMX5023DABS Schwarz 2 DIN 22 W NTSC PAL AAC FLAC MP3 Double DIN monitor receiver

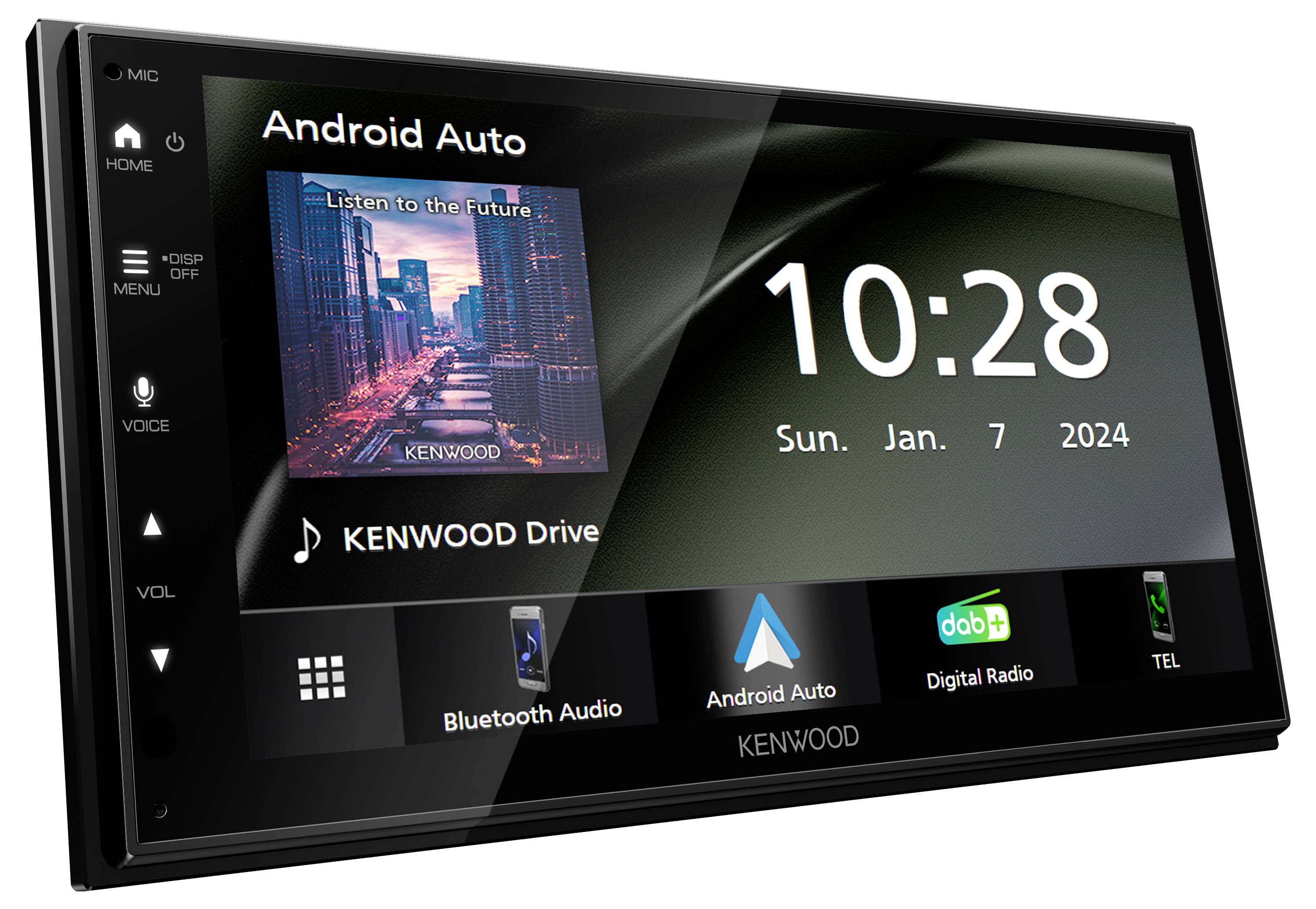

- 17.3 cm (6.8") high resolution WVGA double DIN monitor with capacitive high gloss touch panel
- Responsive touch panel control

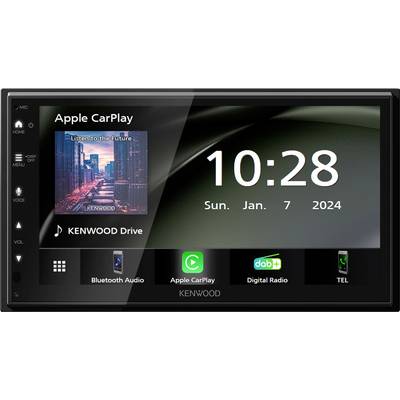

- Apple CarPlay and Android AUTO for connecting a compatible Smartphone via USB
- USB mirroring for mirrors iPhone/Android smartphones
- Spotify via CarPlay/Android auto
- Integrated digital radio receiver including automatic toggling between DAB and FM, slide show function
- Bluetooth module for handsfree (HFP 1.8) & A2DP (incl. AVRCP 1.6)
- Built-in microphone for convenient hands-free function, without additional cabling required
- Rear USB connection for audio and video data (MPEG1/2/4, H.264, MKV, WMV, JPEG and AAC, FLAC (192kHz/24bit), MP3, WAV & WMA
- IPod/iPhone* control via USB with up to 2.1 amp charging function

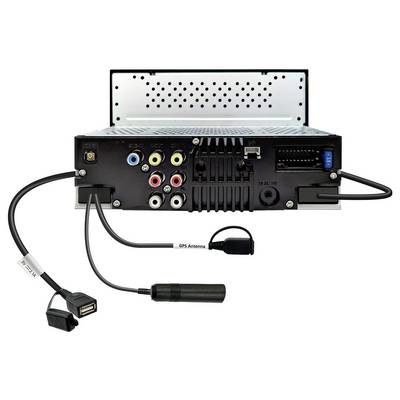

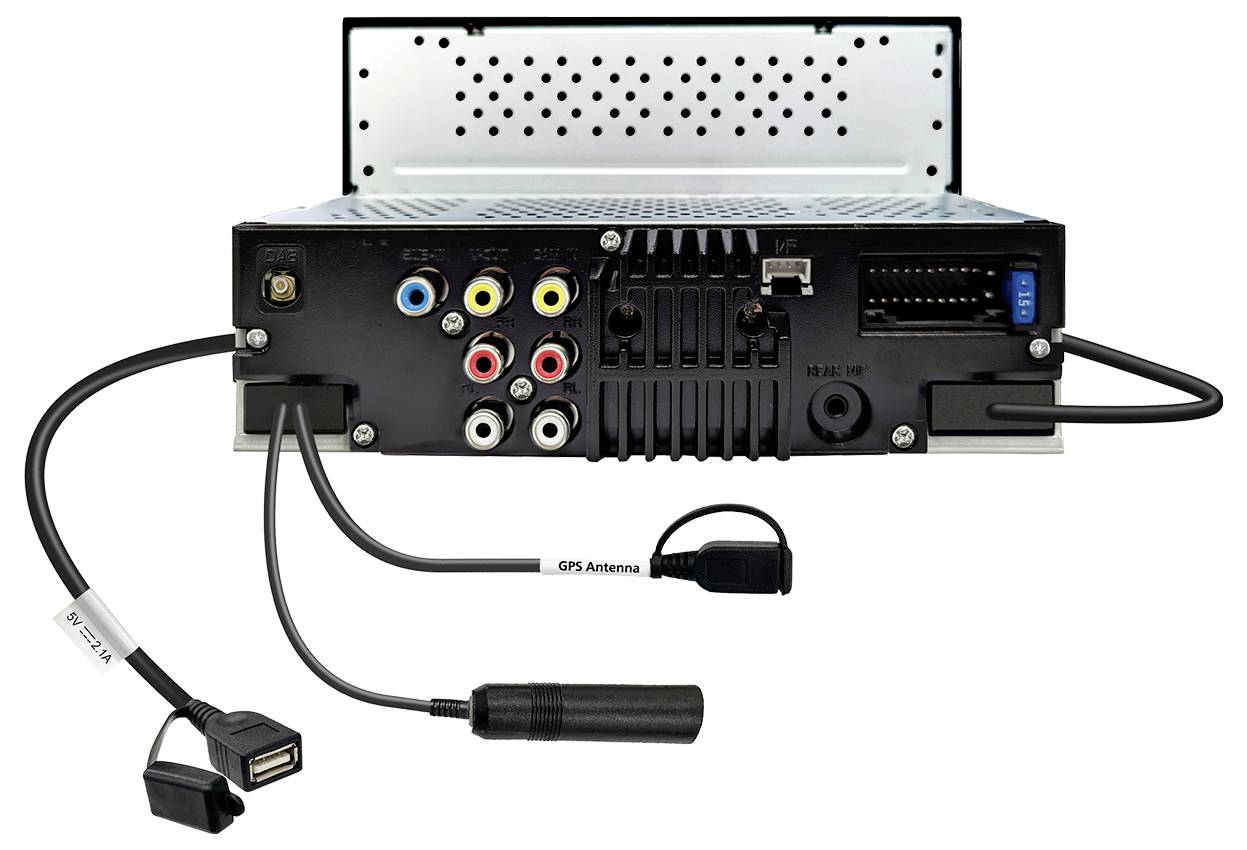

- Separate connection for rear-view camera
- Additional back-side connection for optional external cable microphone
- Very low installation depth (no CD-drive): In total 86 mm
- Adjustable parking guidelines can be displayed for rear-view camera
- Sound processor with 13-band graphic equalizer, time correction and digital frequency point
- 3 pre-amplifier outputs (front, rear, sub) with 2.5 volt
Technical specifications
- Operating voltage 14.4 V (10.5 ~ 16 V permissible)
- Dimensions (W x H x D) 178 x 100 x 86 mm
- Weight 1070 g. Weight (including cover and mounting frame) 1.07 kg
- Colour system of the external video input NTSC/PAL
- External video input level (cinch) 1 Vss / 75 Ohm
- Video output level (cinch) 1 Vss / 75 Ohm
- Screen size 6.8 inch wide
- Display system transparent TN LCD panel
- TFT Active Matrix Drive System Screen
- Number of pixels: 1843200 pixels (1024 (H) x 600 (V) x RGB
- Visible pixels 99.99%
- Pixel arrangement RGB strips arrangement Background lighting LED (Light Emitting Diode)
- Maximum power 50 W x 4
- Output power (DIN45324, +B=14.4 V) 22 W x 4
- Frequency range 20 Hz - 20 kHz
- Output level 2500 mV / 10 kOhm
- Impedance of the pre-amplifier output 1400 Ohm
- Loudspeaker impedance 4 ohms ~ 8 ohms
- Standard Bluetooth V5.0
- Transmission frequencies 2.402 - 2.48 GHz
- Output power +9 dBm (max.), Power class 1
- Max. Range approx. 10 m.
- HFP (Hands Free Profile) Yes, V 1.8 audio data transmission A2DP
- (Advanced Audio Distribution Profile) Yes, V 1.3
- Audio formats SBC/AAC AVRCP (Audio Video Remote Control Profile) Yes, V1.6
- PBAP (Phonebook Access Profile) Yes, V1.2
- Compatibility of USB version USB 2.0 high speed
- File system FAT 16/32 / exFAT / NTFS
- Max. current consumption: 2100 mA
- D/A-converter 24bit
- Product type
Double DIN monitor receiver
- Keypad illumination colour
White
- Playback of
AAC
WAV
FLAC
MP3
WMA
H.264
MKV
MPEG-4
MPEG-2
MPEG-1
Show more
- Interfaces
Bluetooth
USB A (USB 2.0)
- USB port
Yes
- Remote control
Optional
- Car stereo features
Android Auto™
Apple CarPlay
DAB+ tuner
Rearview camera connector
- Screen size diagonal (inches)
6.8 inch
- Vehicle voltage
12 V
- Screen size diagonal (cm)
17.3 cm
- Audio power (max.)
4 x 50 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3414529 Kenwood JVC - Kenwood Electronics DMX5023DABS Schwarz 2 DIN 22 W NTSC PAL AAC FLAC MP3 Double DIN monitor receiver Andro
Information
Information 3414529 Kenwood JVC - Kenwood Electronics DMX5023DABS Schwarz 2 DIN 22 W NTSC PAL AAC FLAC MP3 Double DIN monitor receiver Andro
Description
SHORT BODY
By omitting an integrated DVD drive the installation depth of the without drive "DMX" - Moniceiver could be reduced to only 86 millimeters and to a 1-DIN body. The compact design also fits into narrow installation slots and makes installation easier. Ideal for vehicles where space saving and easy integration are important.
INTEGRATED MICROPHONE
The integrated microphone enables a comfortable hands-free function, without additional cabling. This makes the installation much easier and saves
Time. For even better sound quality or specific requirements an additional connection at the rear offers the possibility of connecting an external cable microphone.

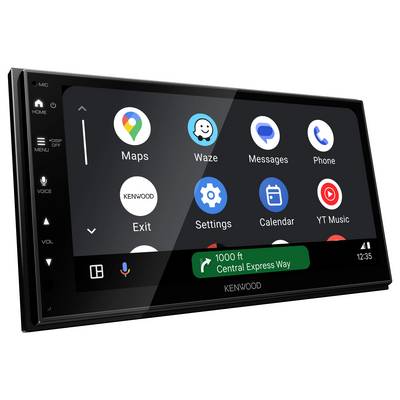

Apple CAR play / ANDROID CAR

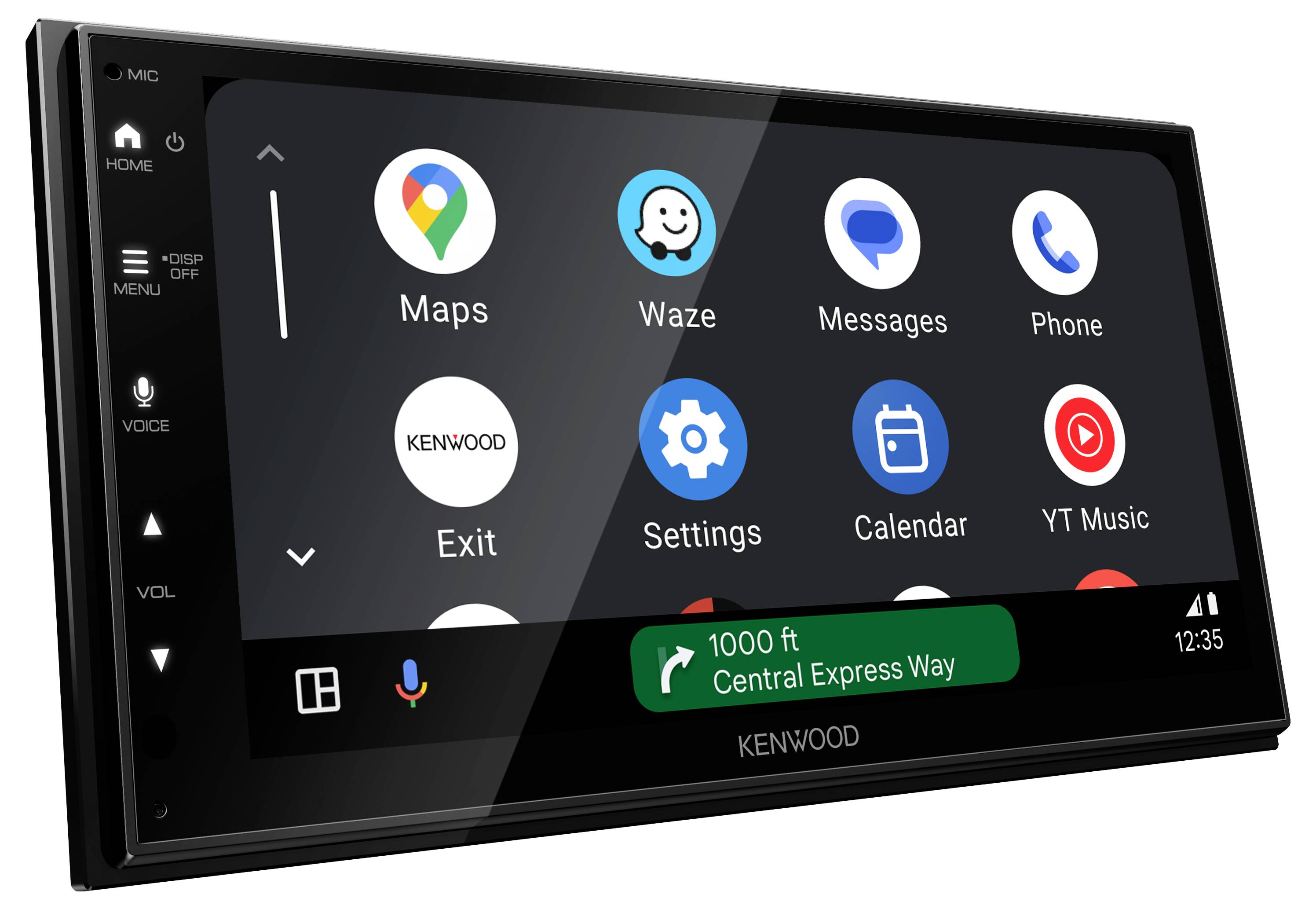

The DMX5023DABS offers both for iPhone and for Android users a comfortable possibility of using your smartphone in the car. With Apple CarPlay or Android AUTO, selected apps are displayed on the respective home screen and can be operated via touch screen or voice control.
This text is machine translated.
By omitting an integrated DVD drive the installation depth of the without drive "DMX" - Moniceiver could be reduced to only 86 millimeters and to a 1-DIN body. The compact design also fits into narrow installation slots and makes installation easier. Ideal for vehicles where space saving and easy integration are important.
INTEGRATED MICROPHONE
The integrated microphone enables a comfortable hands-free function, without additional cabling. This makes the installation much easier and saves
Time. For even better sound quality or specific requirements an additional connection at the rear offers the possibility of connecting an external cable microphone.
Apple CAR play / ANDROID CAR
The DMX5023DABS offers both for iPhone and for Android users a comfortable possibility of using your smartphone in the car. With Apple CarPlay or Android AUTO, selected apps are displayed on the respective home screen and can be operated via touch screen or voice control.
This text is machine translated.
Scope of delivery
- Removal tool
- Cover frame

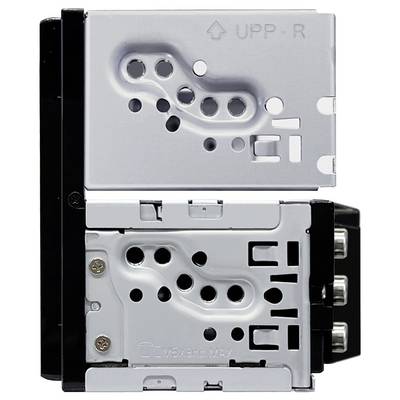

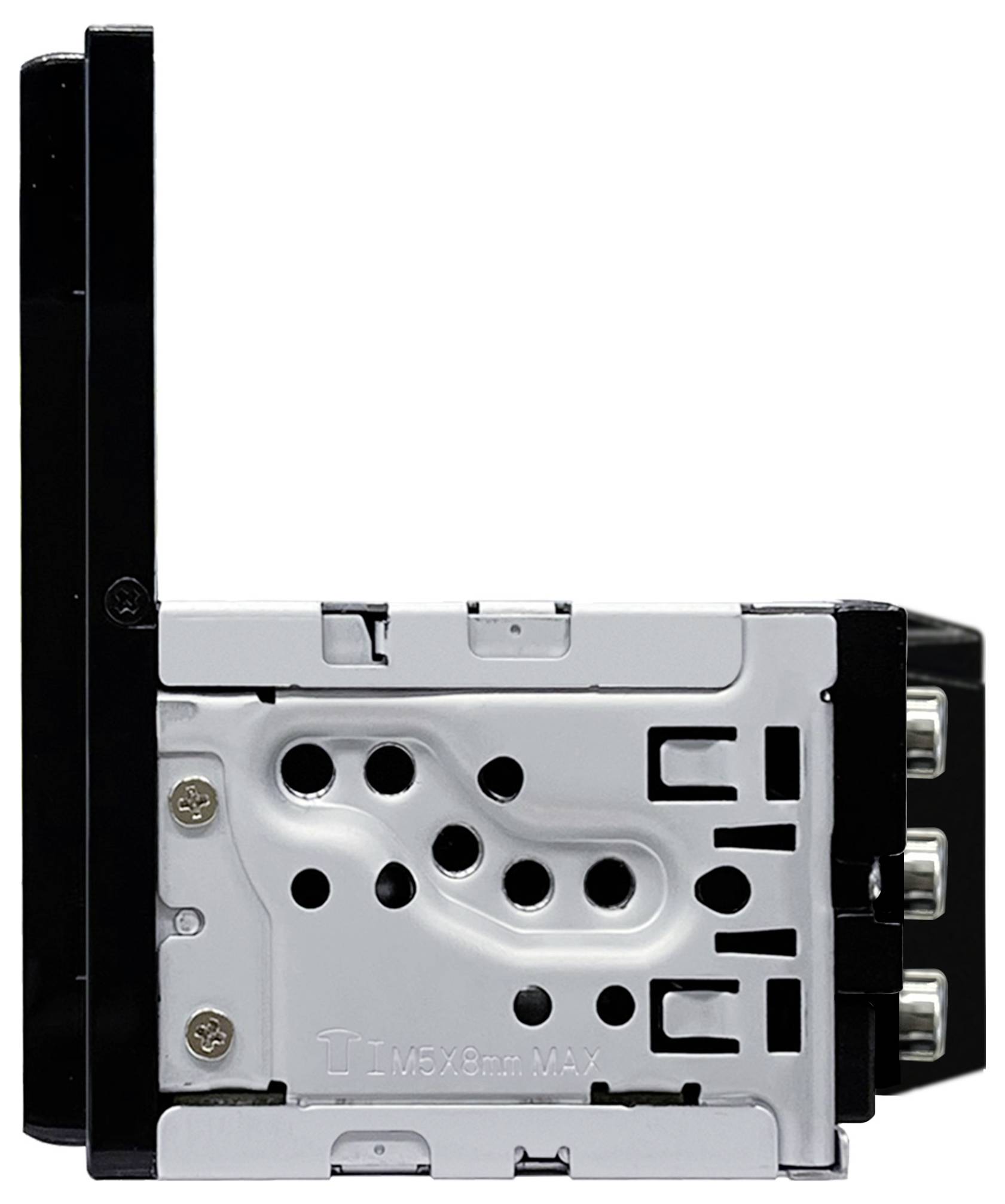

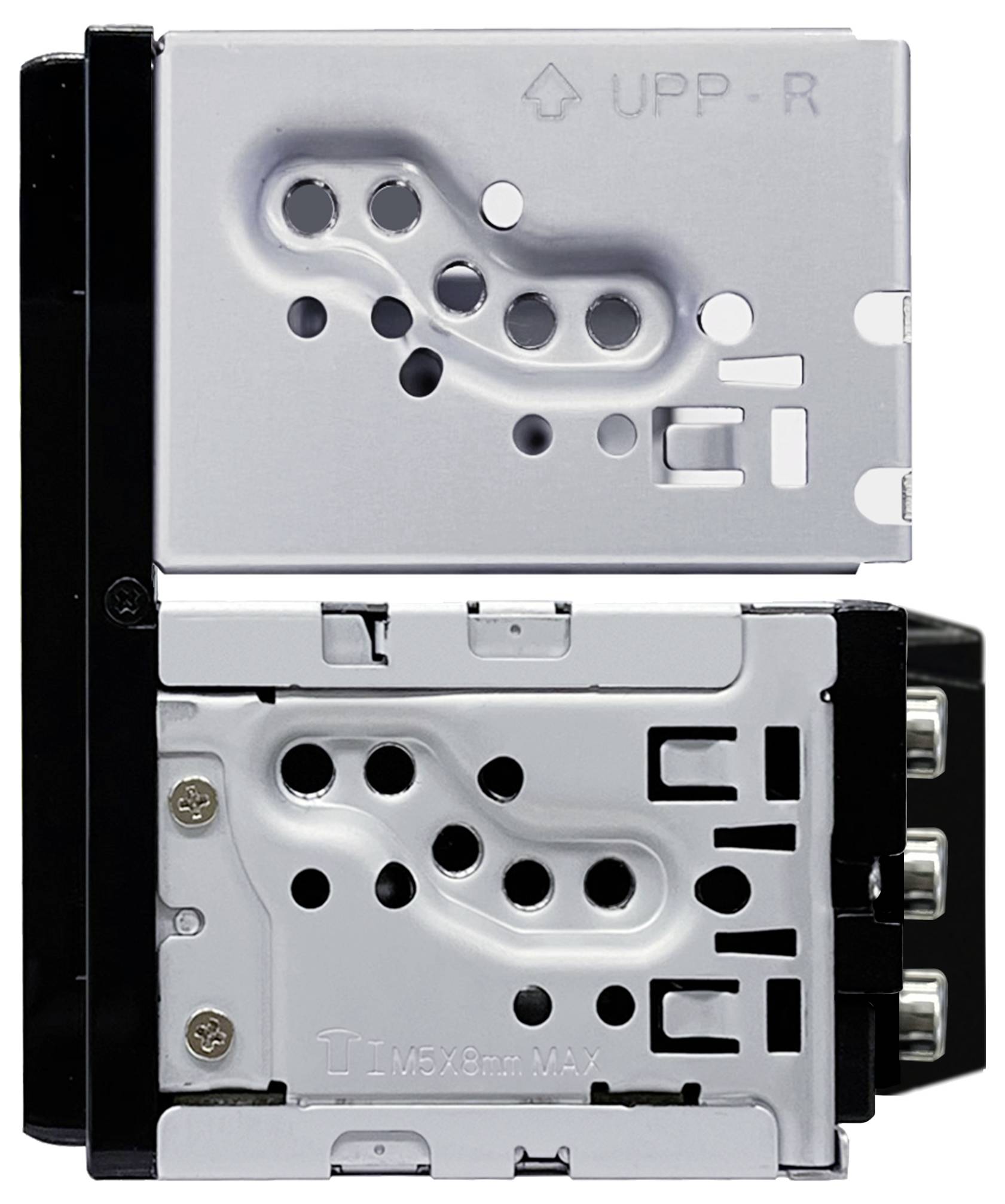

- Mounting bracket
- Power connection cable
- GPS-antenna
- Multilingual instructions for use
