Name: Kenwood KENWOOD - DMX6523DAB Double DIN monitor receiver Android Auto™, Apple CarPlay, Rearview camera connector, DAB+ t
Brand: Kenwood
SKU: 3414533
Availability: InStock

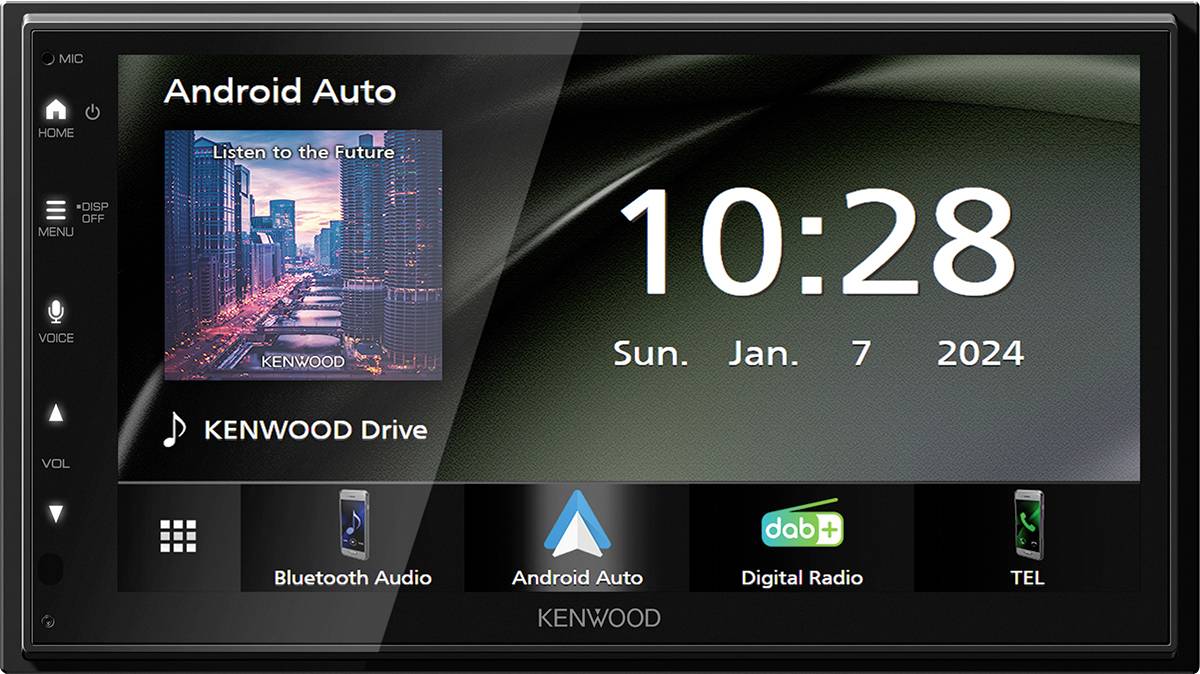

A screen displays the user interface of a car radio with a digital display. It shows the time, date, and various audio options.

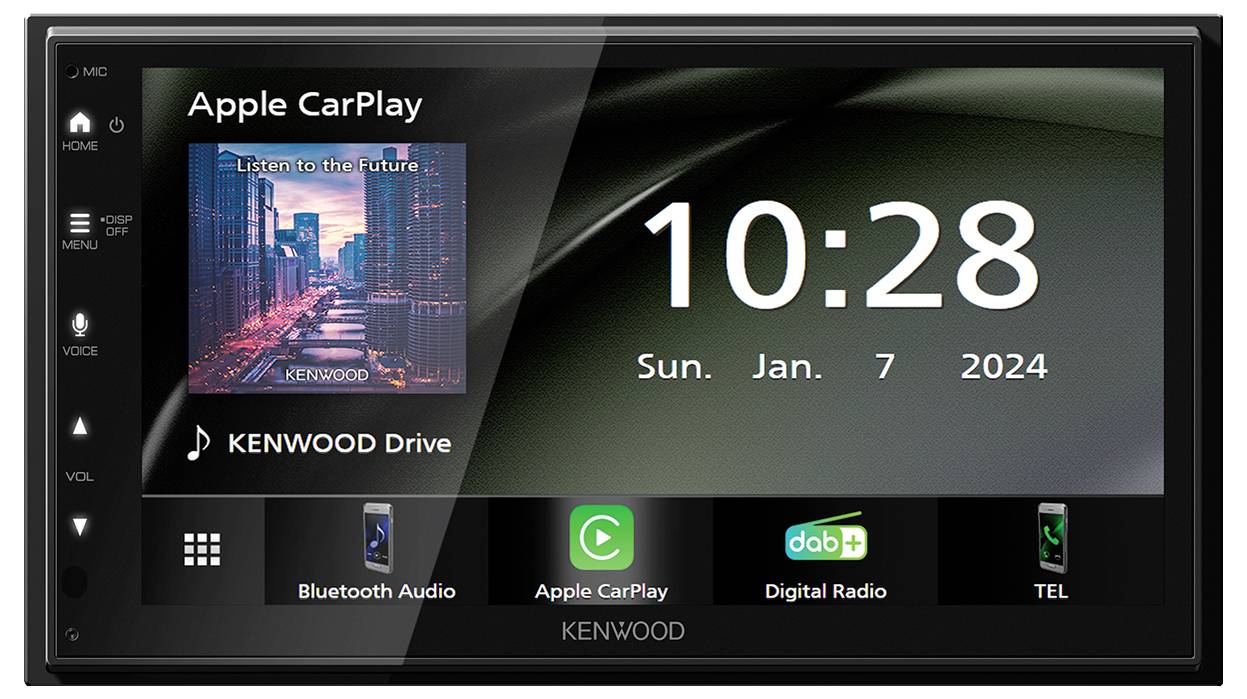

Electronic display of a car radio with Apple CarPlay, Digital Radio, Bluetooth audio and telephone function. Shows time and date.

Kenwood car radio with touchscreen displays apps such as Maps, Waze and Phone. Below, a navigation with '1000 ft Central Express Way'.

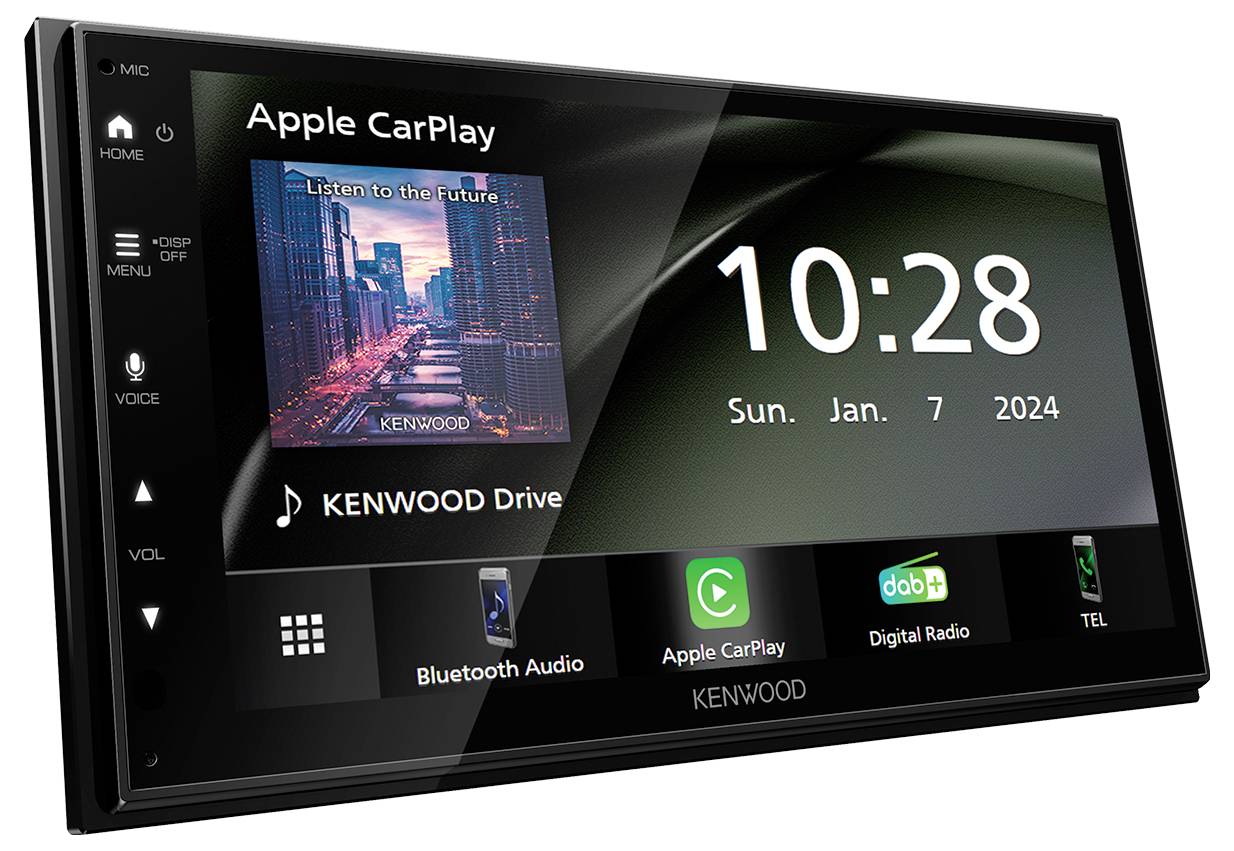

'Car radio with display showing Apple CarPlay interface. Left side has buttons for Home, volume, and menu. Screen time 10:28.'

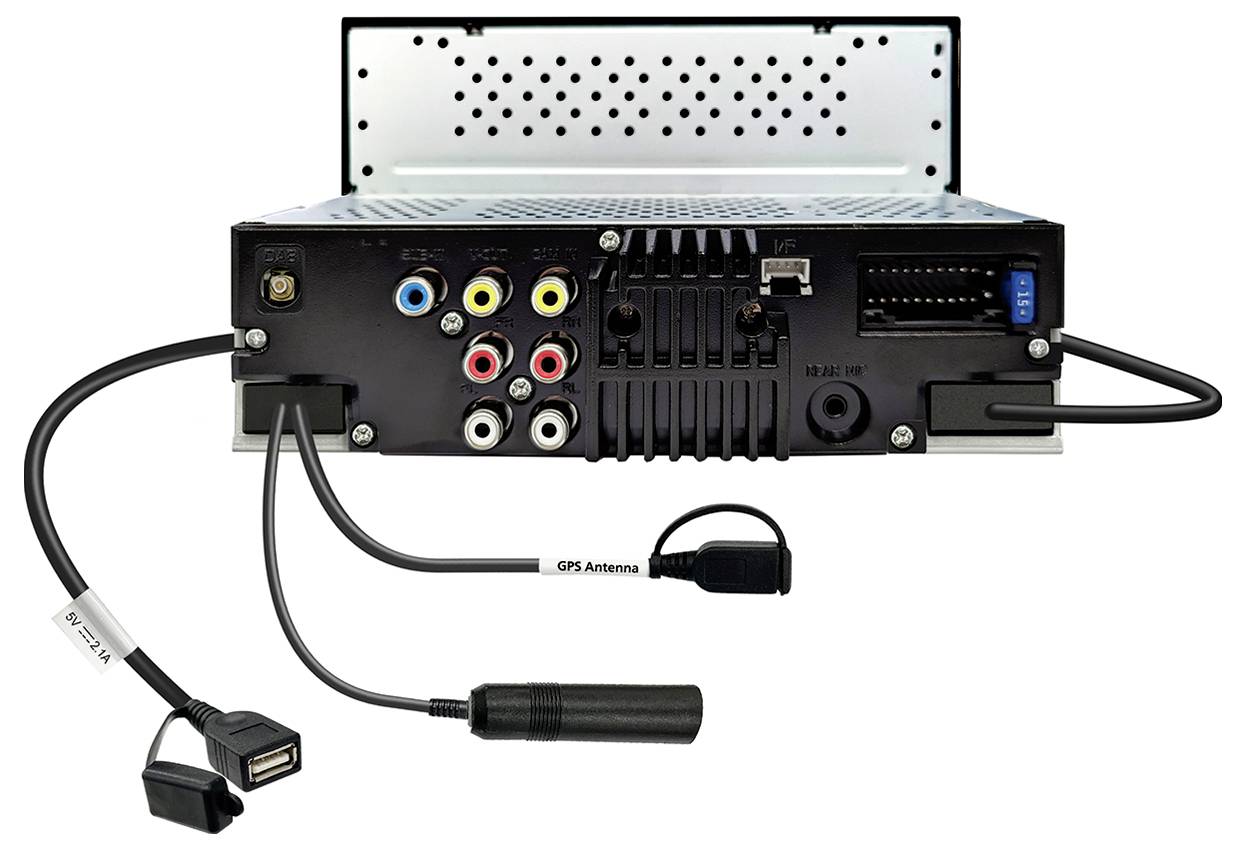

The image shows the rear of a car radio with various connections, including USB, antenna, and speaker ports.

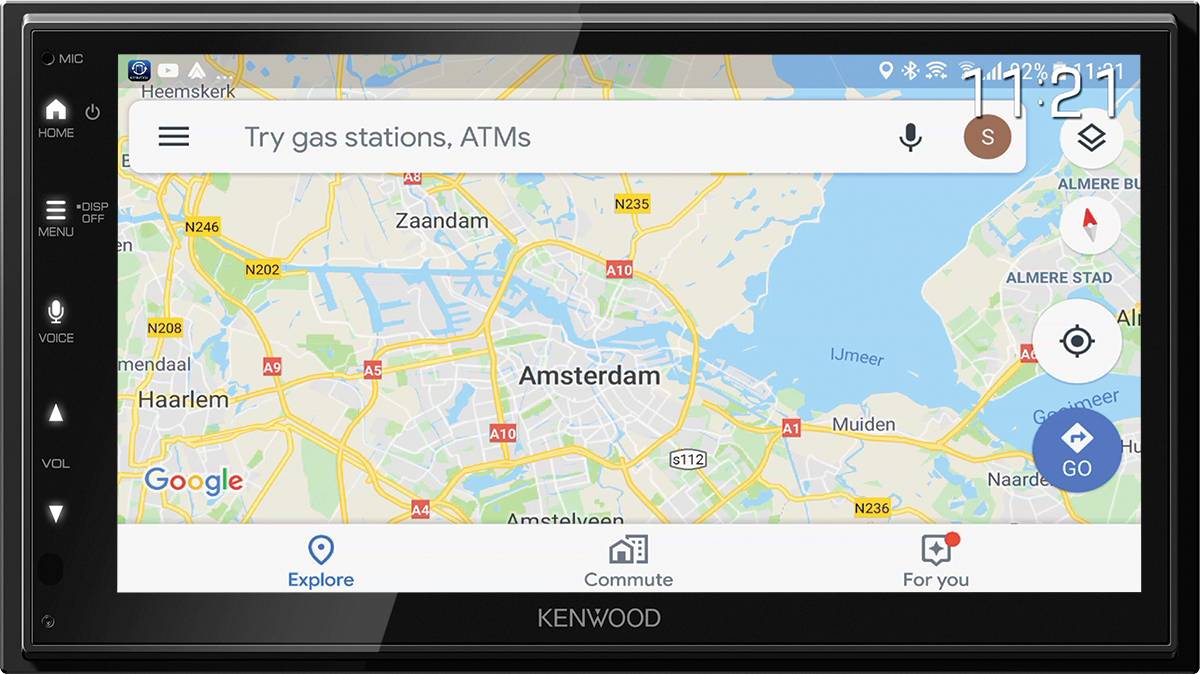

Navigation device with Google Maps displays a map with Amsterdam at the centre. Searchable at the top: 'Find petrol stations, cash machines'. Time: 11:21.

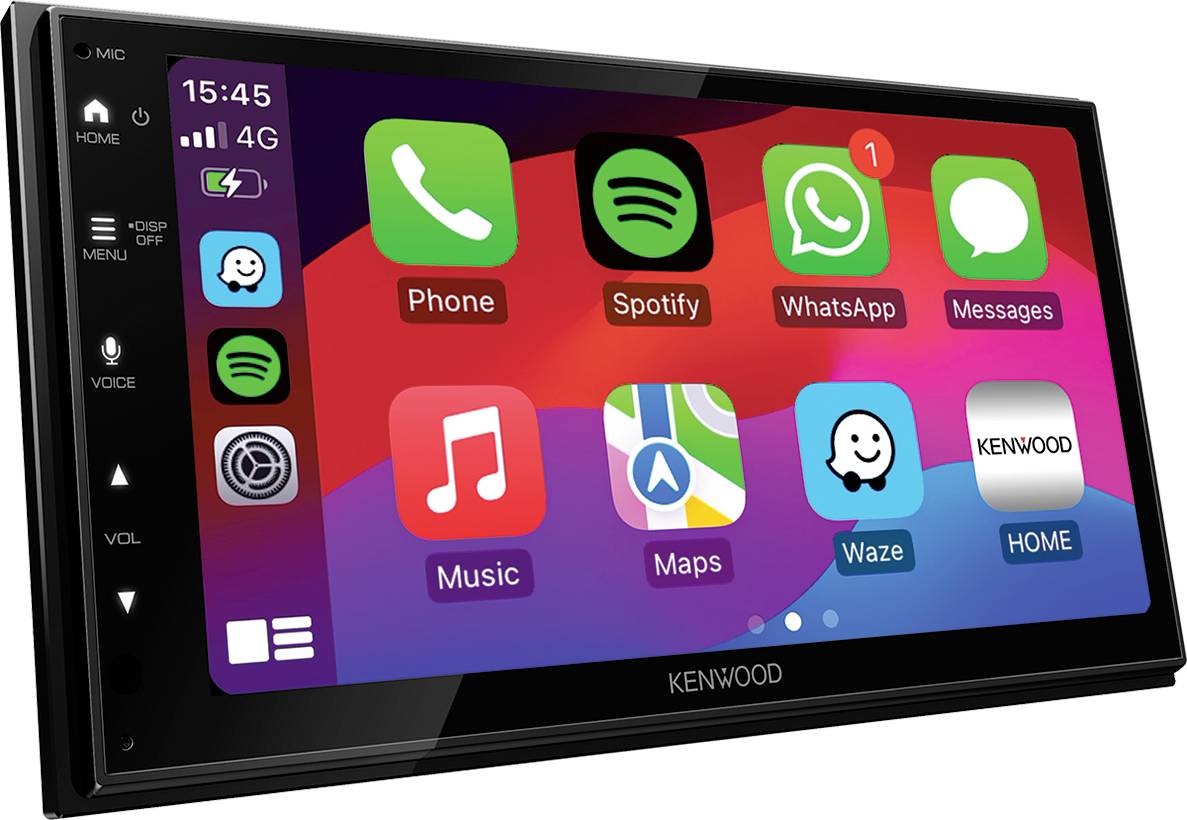

A car multimedia screen with various app icons, including Phone, Spotify, WhatsApp, Messages, Music, Maps, and Waze.

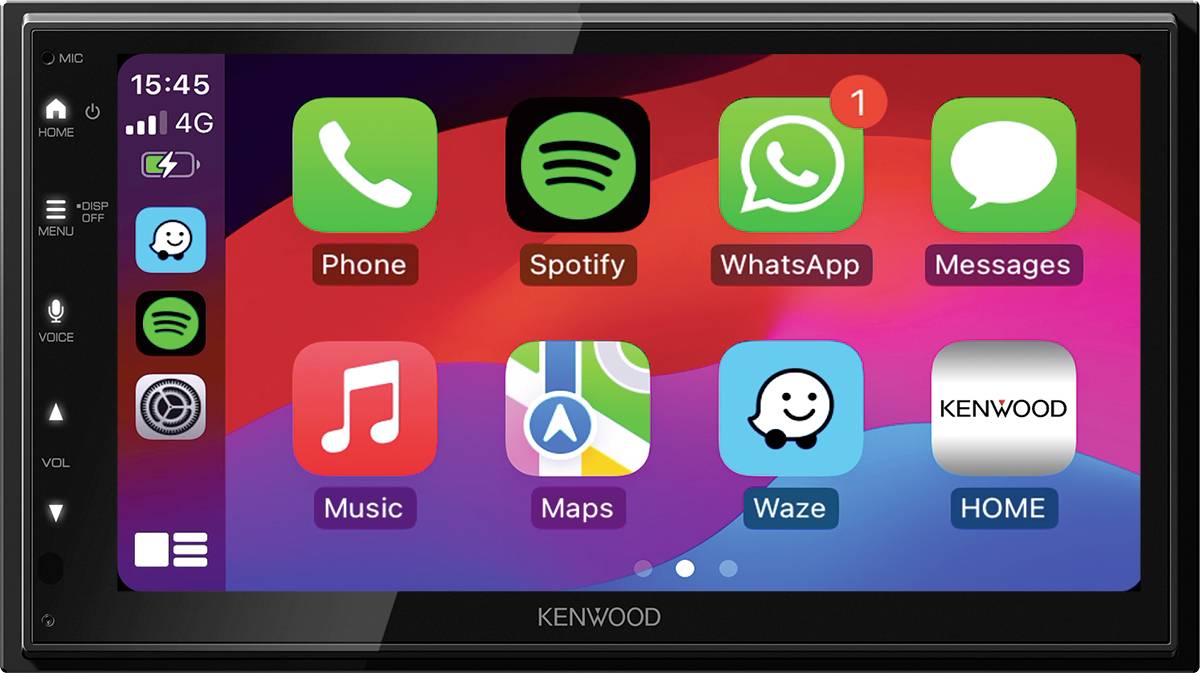

Touchscreen car radio menu with apps: Phone, Spotify, WhatsApp, Messages, Music, Maps, Waze. Signal strength and time in top left corner.

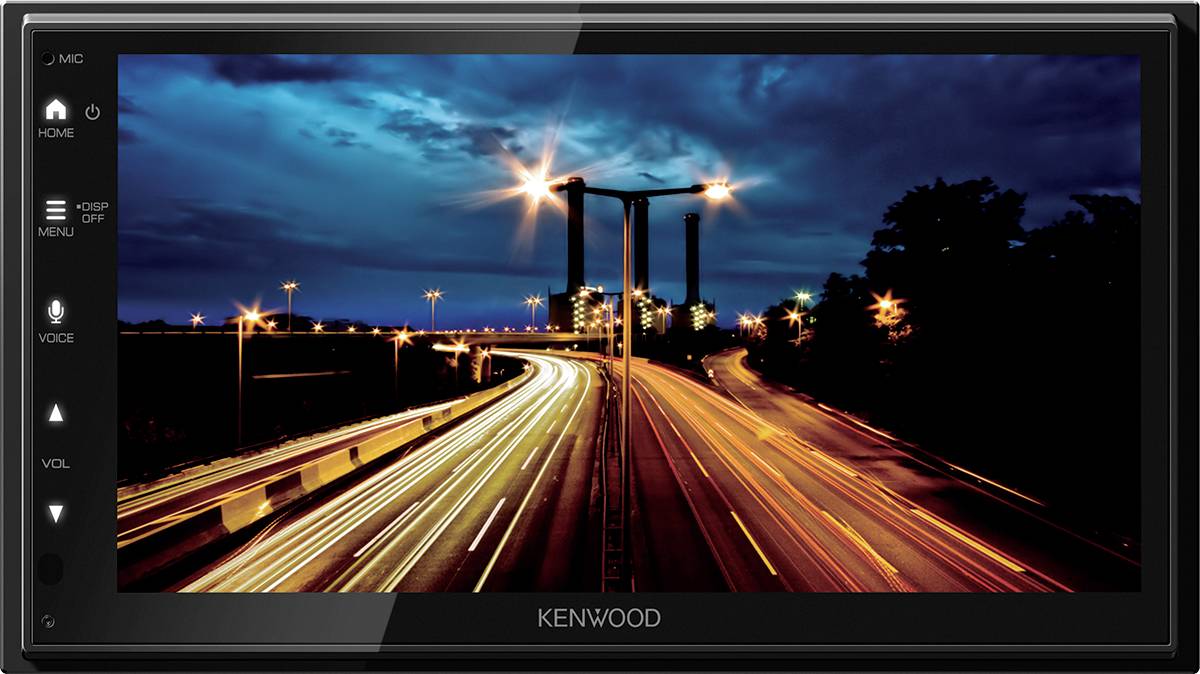

A nocturnal motorway photograph with illuminated roads, long light trail exposures, and a city in the background.

1/9

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 409.00 / piece)

€ 409.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Kenwood KENWOOD - DMX6523DAB Double DIN monitor receiver

17.3 cm (6.8") high resolution WVGA double DIN monitor with capacitive high gloss touch panel
Responsive touch panel control
Wireless car play
Wireless Android auto
Wireless mirroring for compatible Android smartphones
Apple CarPlay and Android AUTO for connecting a compatible Smartphone via USB
Mirroring for the reflection of iPhones via MirrorAPP+
Spotify via CarPlay/Android auto
Integrated digital radio receiver including automatic toggling between DAB and FM, slide show function
Bluetooth module for handsfree (HFP 1.8) & A2DP (incl. AVRCP 1.6)
Built-in microphone for convenient hands-free function, without additional cabling required
Rear USB connection for audio and video data (MPEG1/2/4, H.264, MKV, WMV, JPEG and AAC, FLAC (192kHz/24bit), MP3, WAV & WMA
IPod/iPhone* control via USB with up to 2.1 amp charging function
Separate connection for rear-view camera
Additional back-side connection for optional external cable microphone
Very low installation depth (no CD-drive): In total 86 mm
Adjustable parking guidelines can be displayed for rear-view camera
Sound processor with 13-band graphic equalizer, time correction and digital frequency point
3 pre-amplifier outputs (front, rear, sub) with 2.5 volt

Technical specifications

Standard opening screen type
Individual background setting: 6 x preset + 2 x individual settings
Auto-reverse camera light (R-CAMInterrupt): Yes
Reversing camera Parking support lines: Yes, adjustable
Operating voltage 14.4 V (10.5 ~ 16 V permissible)
Dimensions (W x H x D) 178 x 100 x 86 mm
Weight 1070 g.
Weight (including cover and mounting frame) 1.07 kg
Colour system of the external video input NTSC/PAL
External video input level (cinch) 1 Vss / 75 Ohm
Video output level (cinch) 1 Vss / 75 Ohm
Screen size 6.8 inch wide
Display system: Transparent TN LCD panel
TFT Active Matrix Drive System Screen
Number of pixels: 1843200 pixels (1024 (H) x 600 (V) x RGB
Visible pixels 99.99%
Pixel arrangement RGB strips arrangement
Backlight LED (light emitting diode)
Maximum power 50 W x 4
Output power (DIN45324, +B=14.4 V) 22 W x 4
Frequency range 20 Hz - 20 kHz
Output level 2500 mV / 10 kOhm
Impedance of the pre-amplifier output 1400 Ohm
Loudspeaker impedance 4 ohms ~ 8 ohms
Standard Bluetooth V5.0
Transmission frequencies 2.402 - 2.48 GH
Output power +9 dBm (max.), Power class 1
Max. Range approx. 10 m.
HFP (Hands Free Profile) Yes, V 1.8
Audio data transfer A2DP (Advanced Audio Distribution Profile) Yes, V 1.3
Audio formats SBC/AAC
AVRCP (Audio Video Remote Control Profile) Yes, V1.6
PBAP (Phonebook Access Profile) Yes, V1.2
FM range 87.5 MHz - 108 MHz (in 50 kHz steps) Yes
FM input sensitivity 1,8μV/75 Ohm (S/N 30 dB) FM transmission range 30 Hz ~ 14 kHz (± 3 dB)

Product type: Double DIN monitor receiver

Keypad illumination colour: White

Playback of: H.264
WMV
MPEG-2
MPEG-1
MKV
MP3
WMA
AAC
WAV
FLAC

Interfaces: USB

USB port: Yes

SD card slot: No

Remote control: Yes (optional)

Car stereo features: Android Auto™
Apple CarPlay
Rearview camera connector
DAB+ tuner
Bluetooth handsfree set

Screen size diagonal (inches): 6.8 inch

Vehicle voltage: 12 V

Screen size diagonal (cm): 17.3 cm

Factory colour: Multicolour

Audio power (max.): 4 x 50 W

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3414533 Kenwood KENWOOD - DMX6523DAB Double DIN monitor receiver Android Auto™, Apple CarPlay, Rearview camera connector, DAB+ t

Description

SHORT BODY

By omitting an integrated DVD drive the installation depth of the without drive "DMX" - Moniceiver could be reduced to only 86 millimeters and to a 1-DIN body. The compact design also fits into narrow installation slots and makes installation easier. Ideal for vehicles where space saving and easy integration are important.

INTEGRATED MICROPHONE

The integrated microphone enables a comfortable hands-free function, without additional cabling. This makes the installation much easier and saves
Time. For even better sound quality or specific requirements an additional connection at the rear offers the possibility of connecting an external cable microphone.

Apple CAR play / ANDROID CAR

The DMX6523DABS offers iOS and Android users a convenient option to use their smartphone in the car. With Apple CarPlay or Android AUTO selected apps can be controlled via touch-screen. Thanks to the Wi-Fi function of the DMX6523DABS, compatible Apple as well as Android smartphones can even be connected wirelessly.
