Buy Keystone Electronics 502 Button cell holder 1x CR 1616, CR 1620, CR 1625, CR 1632 Horizontal, Through-hole (Ø x H) 19 mm

Black plastic button cell holder with embedded metal clip, suitable for holding a button battery.

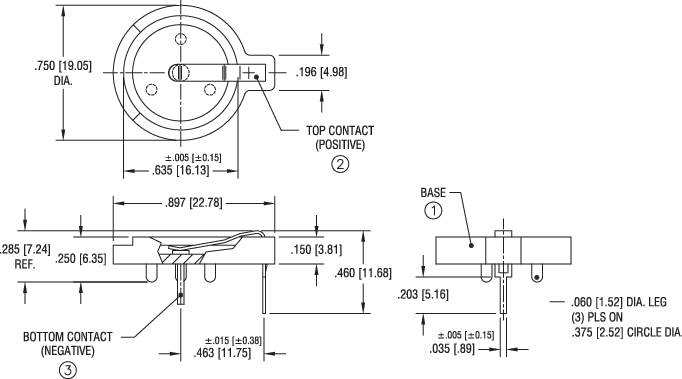

Technical drawing of an electrical contact. Shows top and side view with dimensions in inches and millimetres.

1/2

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

98 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 3.61 / piece)

€ 3.61

plus VAT.

Report legal concerns

Highlights & Details

Keystone Electronics 502 Button cell holder 1x CR 1616, CR 1620, CR 1625, CR 1632 Horizontal, Through-hole (Ø x H) 19 mm x 11 mm

Chemical resistant plastic

Technical specifications

Connector: Horizontal
Through-hole

Suitable for battery size: CR 1616
CR 1620
CR 1625
CR 1632

Pin spacing: 11.76 mm

No. of cells: 1

Height: 11 mm

(Ø): 19 mm

Material (details): Chemical resistant plastic

Factory colour: Black

Type: Horizontal

Dim: (Ø x H) 19 mm x 11 mm

Suitable for: Ø 16 mm e.g. CR 1616, CR 1620, CR 1632

Type: CR 1616, CR 1620, CR 1632

Product type: Button cell holder

Variants(All information is without VAT, plus shipping costs)

Connector

Pin spacing

Suitable for battery size

Dim

No. of cells

Keystone Electronics 502 Button cell holder 1x CR 1616, CR 1620, CR 1625, CR 1632 Horizontal, Through-hole (Ø x H) 19 mm x 11 mm

Item no:651213

This article

HorizontalThrough-hole

11.76 mm

CR 1616CR 1620CR 1625CR 1632

(Ø x H) 19 mm x 11 mm

Keystone Electronics 1052 Button cell holder 1x CR 2450 Horizontal, SMD (L x W x H) 36.41 x 16 x 7.47 mm

Item no:1555481

HorizontalSMD

36.41 mm

CR 2450

(L x W x H) 36.41 x 16 x 7.47 mm

Keystone Electronics 1065 Button cell holder 1x CR2 016, CR 2020, CR 2025, CR 2032 Vertical, Through-hole (W x H x D) 26.42 x 23.31 x 7.62 mm

Item no:1555482

VerticalThrough-hole

13.08 mm

CR2 016CR 2020CR 2025CR 2032

(W x H x D) 26.42 x 23.31 x 7.62 mm

Keystone Electronics 1070 Button cell holder 1x CR 2032 Horizontal, SMD (L x W x H) 28.38 x 20 x 5.97 mm

Item no:1555487

HorizontalSMD

24.4 mm

CR 2032

(L x W x H) 28.38 x 20 x 5.97 mm

Keystone Electronics 1068 Button cell holder 1x CR 2450 Vertical, Through-hole (W x H x D) 31.88 x 26.09 x 5.89 mm

Item no:1555508

VerticalThrough-hole

15.73 mm

CR 2450

(W x H x D) 31.88 x 26.09 x 5.89 mm

Keystone Electronics 1058 Button cell holder 1x CR 2032 Horizontal, SMD (L x W x H) 28.40 x 16 x 5 mm

Item no:1555516

HorizontalSMD

28.40 mm

CR 2032

(L x W x H) 28.40 x 16 x 5 mm

Keystone Electronics 1057 Button cell holder 1x CR 2032 Horizontal, SMD (L x W x H) 33.15 x 23.93 x 5.21 mm

Item no:1555534

HorizontalSMD

33.15 mm

CR 2032

(L x W x H) 33.15 x 23.93 x 5.21 mm

Keystone Electronics 3022 Button cell holder 2x CR 2020, CR 2025, CR 2032 Horizontal, SMD (L x W x H) 34.01 x 22.27 x 6.10 mm

Item no:651314

HorizontalSMD

CR 2020CR 2025CR 2032

(L x W x H) 34.01 x 22.27 x 6.10 mm

Keystone Electronics 3000 Button cell holder 1x CR 1216, CR 1220 Horizontal, SMD (L x W x H) 18.92 x 12.07 x 3.18 mm

Item no:651317

HorizontalSMD

CR 1216CR 1220

(L x W x H) 18.92 x 12.07 x 3.18 mm

Keystone Electronics 3012 Button cell holder 1x CR 1616, CR 1620, CR 1625, CR 1632 Horizontal, SMD (L x W x H) 23.22 x 15.07 x 3.96 mm

Item no:651318

HorizontalSMD

CR 1616CR 1620CR 1625CR 1632

(L x W x H) 23.22 x 15.07 x 3.96 mm

Documents & Downloads

Datasheet

Datasheet 651213 Keystone Electronics 502 Button cell holder 1x CR 1616, CR 1620, CR 1625, CR 1632 Horizontal, Through-hole (Ø x H) 19 mm

User & Safety Instructions

User & Safety Instructions 651213 Keystone Electronics 502 Button cell holder 1x CR 1616, CR 1620, CR 1625, CR 1632 Horizontal, Through-hole (Ø x H) 19 mm

Description

High-quality and robust Button cell holder for CR1616, CR1620 and CR1632.
