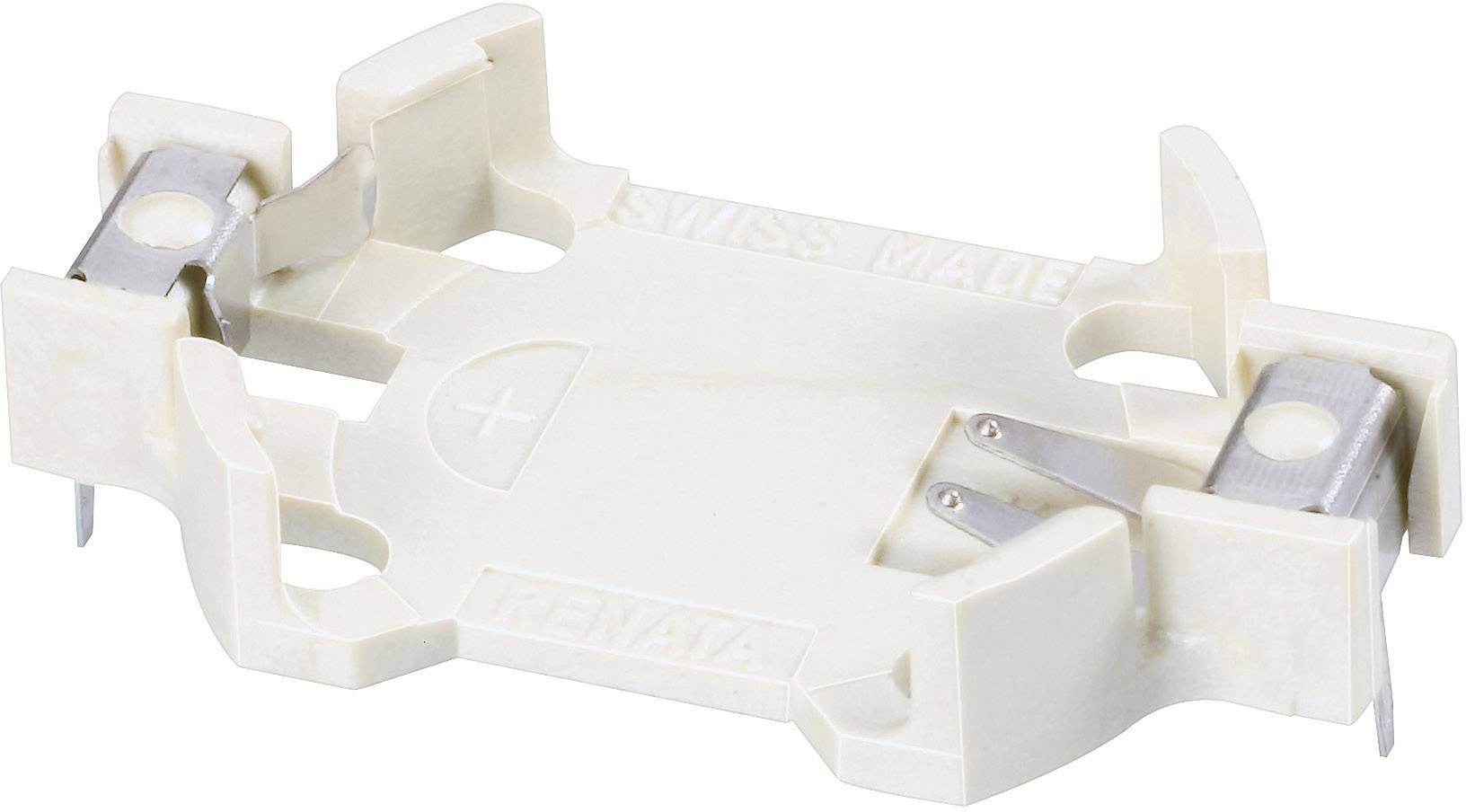

Renata 701106 Button cell holder 1x CR 2032 Horizontal, Through-hole (L x W x H) 28.5 x 20 x 8.7 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
5
6% = € 0.07
€ 1.01
10
10% = € 0.11
€ 0.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€ 1.08
plus VAT.
Highlights & Details
Renata 701106 Button cell holder 1x CR 2032 Horizontal, Through-hole (L x W x H) 28.5 x 20 x 8.7 mm
- For automatic assembly
- Suitable for wave soldering
- Protection against fault currents
Technical specifications
- Connector
Horizontal
Through-hole
- Suitable for battery size
CR 2032
- Pin spacing
27.2 mm
- No. of cells
1
- Length
28.5 mm
- Width
20 mm
- Height
8.7 mm
- Material (details)
Heat resistant, glass fibre reinforced plastic
- Factory colour
White
- Type
Solder pins
- Dim
(L x W x H) 28.5 x 20 x 8.7 mm
- Suitable for
CR2032
- Type
HU2032
- Product type
Button cell holder
Documents & Downloads
Datasheet
Datasheet 650612 Renata 701106 Button cell holder 1x CR 2032 Horizontal, Through-hole (L x W x H) 28.5 x 20 x 8.7 mm
User & Safety Instructions
User & Safety Instructions 650612 Renata 701106 Button cell holder 1x CR 2032 Horizontal, Through-hole (L x W x H) 28.5 x 20 x 8.7 mm
Description
Rugged, lightweight and made of heat-resistant, glass fiber reinforced plastic.
Features
- For automatic assembly (HU)
- Secure hold the button cell.
- Clear separation of the connections
- Easy and fast exchange of battery
- Automatic Battery mounting possible
- Protection against short-circuits
- Protection against reverse polarity (polarization)
- Protection against fault currents
- Robust Construction
- Suitable for wave soldering
- Holder material: heat-resistant, glass fiber-filled LCP
- Flammability UL94V-O
- Battery contacts: stainless steel spring AISI 301, end-to-end-nickel coating. Through-tin-plated Lotbereich, thickness at least 5 μm
- Contact resistance between contacts and battery cell is less than 100 mΩ (measured at AC 1 kHz; depending on the housing material the battery)
- UL approval.
- UL file number E 218732
- Operating temperature range: -40 to +100 °C
