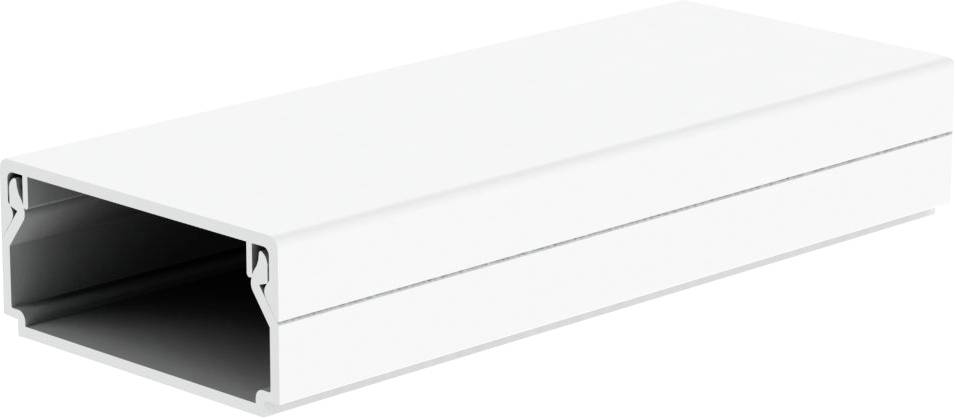

KOPOS LHD 40X20_P1.0 Cable trunking Wiring duct (L x W x H) 1000 x 41 x 18 mm 1 pc(s) White (RAL 9003)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 2.93
€ 2.93
5
1 M = € 2.74
€ 2.74
10
1 M = € 2.66
€ 2.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 2.93)
€ 2.93
plus VAT.
Highlights & Details
Electric installation channel LHD 20x20, white, with adhesive tape
- Temperature resistance --5°C to +60°C
- Flame resistant to 850°C.
- Protection class: IP40
- Self-adhesive tape
Technical specifications
- Material: PVC - lead-free
- Self-extinguishing: Yes, up to 30 s.
- Temperature resistance --5°C+60°C
- Flame resistant to 850°C.
- Shock resistance 0.5 J
- IP 40 protection class
- Fire class A1-F
- Internal area: 560 mm²
- Distance between the perforated base 200 ±20 mm, Ø 4.5 mm
- Length tolerance ±10 mm
- Weighs 0.21 kg/m.
- Mechanical protection according to ČSN EN 50102: IK06
- According to standard EN 50085-1 ed.2:06, EN 50085-2-1:07
- Product type
Cable trunking
- Component
Wiring duct
- Supplied length
1 m
- Content
1 pc(s)
- Factory colour
White (RAL 9003)
- Dim
(L x W x H) 1000 x 41 x 18 mm
- Length
1000 mm
- Width
41 mm
- Material
PVC
- Height
18 mm
Documents & Downloads
Datasheet
Datasheet 3476365 KOPOS LHD 40X20_P1.0 Cable trunking Wiring duct (L x W x H) 1000 x 41 x 18 mm 1 pc(s) White (RAL 9003)
User & Safety Instructions
User & Safety Instructions 3476365 KOPOS LHD 40X20_P1.0 Cable trunking Wiring duct (L x W x H) 1000 x 41 x 18 mm 1 pc(s) White (RAL 9003)
Description
Intended for the installation of low voltage cables.
Suitable for wall or ceiling mounting.
Double lock on the lid increases the rigidity of the channel.
This text is machine translated.
Suitable for wall or ceiling mounting.
Double lock on the lid increases the rigidity of the channel.
This text is machine translated.
Features
- Intended for the installation of low voltage cables
- Suitable for wall or ceiling mounting
- Double lock on the lid increases the rigidity of the channel and even stronger fixing of the lid
- Installation in areas where flammable gases and vapors hazards are possible (hazard zone 2)
- Installation in areas where dust explosion hazards occur (danger zone 22)
- Adhesive tape on the back side serves for temporary fixing of the duct before the final mounting on the surface.
Scope of delivery
- 1 x 1 m Channel
