Name: KOPOS LHD 40X40_P1.0 Cable trunking Wiring duct (L x W x H) 1000 x 21 x 19 mm 1 pc(s) White (RAL 9003)
Brand: KOPOS
SKU: 3476366
Availability: InStock

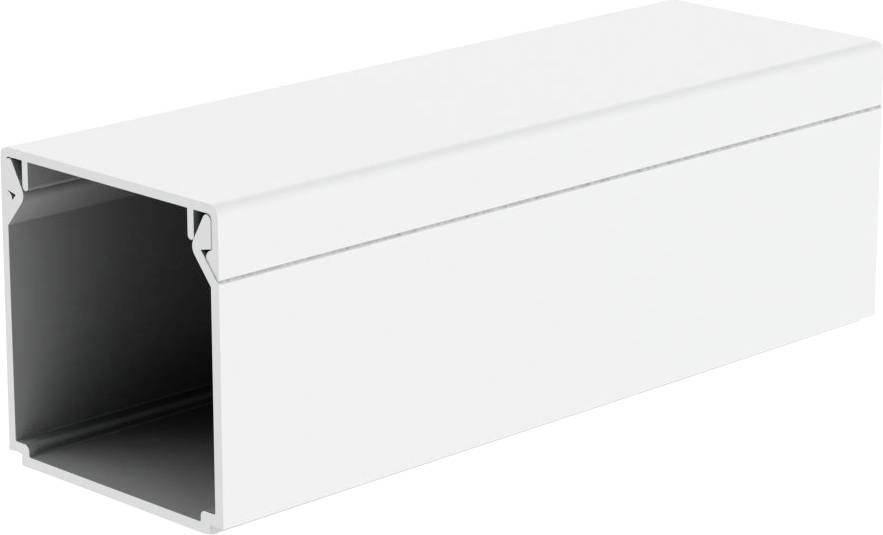

A white rectangular duct section with an open end, showing a hollow interior.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 5.49)

€ 5.49

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Electric installation channel LHD 20x20, white, with adhesive tape

Temperature resistance --5°C to +60°C
Flame resistant to 850°C.
Protection class: IP40
Self-adhesive tape

Technical specifications

Material: PVC - lead-free
Self-extinguishing: Yes, up to 30 s.
Temperature resistance --5°C+60°C
Flame resistant to 850°C.
Shock resistance 0.5 J
IP 40 protection class
Fire class A1-F
Internal area: 260 mm²
Distance between the perforated base 200 ±20 mm, Ø 4.5 mm
Length tolerance ±10 mm
Weighs 0.13 kg/m.
Mechanical protection according to ČSN EN 50102: IK06
According to standard EN 50085-1 ed.2:06, EN 50085-2-1:07

Product type: Cable trunking

Component: Wiring duct

Supplied length: 1 m

Content: 1 pc(s)

Factory colour: White (RAL 9003)

Dim: (L x W x H) 1000 x 21 x 19 mm

Length: 1000 mm

Width: 21 mm

Material: PVC

Height: 19 mm

Documents & Downloads

Datasheet

Datasheet 3476366 KOPOS LHD 40X40_P1.0 Cable trunking Wiring duct (L x W x H) 1000 x 21 x 19 mm 1 pc(s) White (RAL 9003)

User & Safety Instructions

User & Safety Instructions 3476366 KOPOS LHD 40X40_P1.0 Cable trunking Wiring duct (L x W x H) 1000 x 21 x 19 mm 1 pc(s) White (RAL 9003)

Description

Intended for the installation of low voltage cables.
Suitable for wall or ceiling mounting.
Double lock on the lid increases the rigidity of the channel.

This text is machine translated.

Features

Intended for the installation of low voltage cables
Suitable for wall or ceiling mounting
Double lock on the lid increases the rigidity of the channel and even stronger fixing of the lid
Installation in areas where flammable gases and vapors hazards are possible (hazard zone 2)
Installation in areas where dust explosion hazards occur (danger zone 22)
Adhesive tape on the back side serves for temporary fixing of the duct before the final mounting on the surface.

Scope of delivery

1 x 1 m Channel
