Buy KS Tools 515.3855 515.3855 Pneumatic impact driver Tool holder: 3/8" (10 mm) male square Torque (max.): 1390 Nm

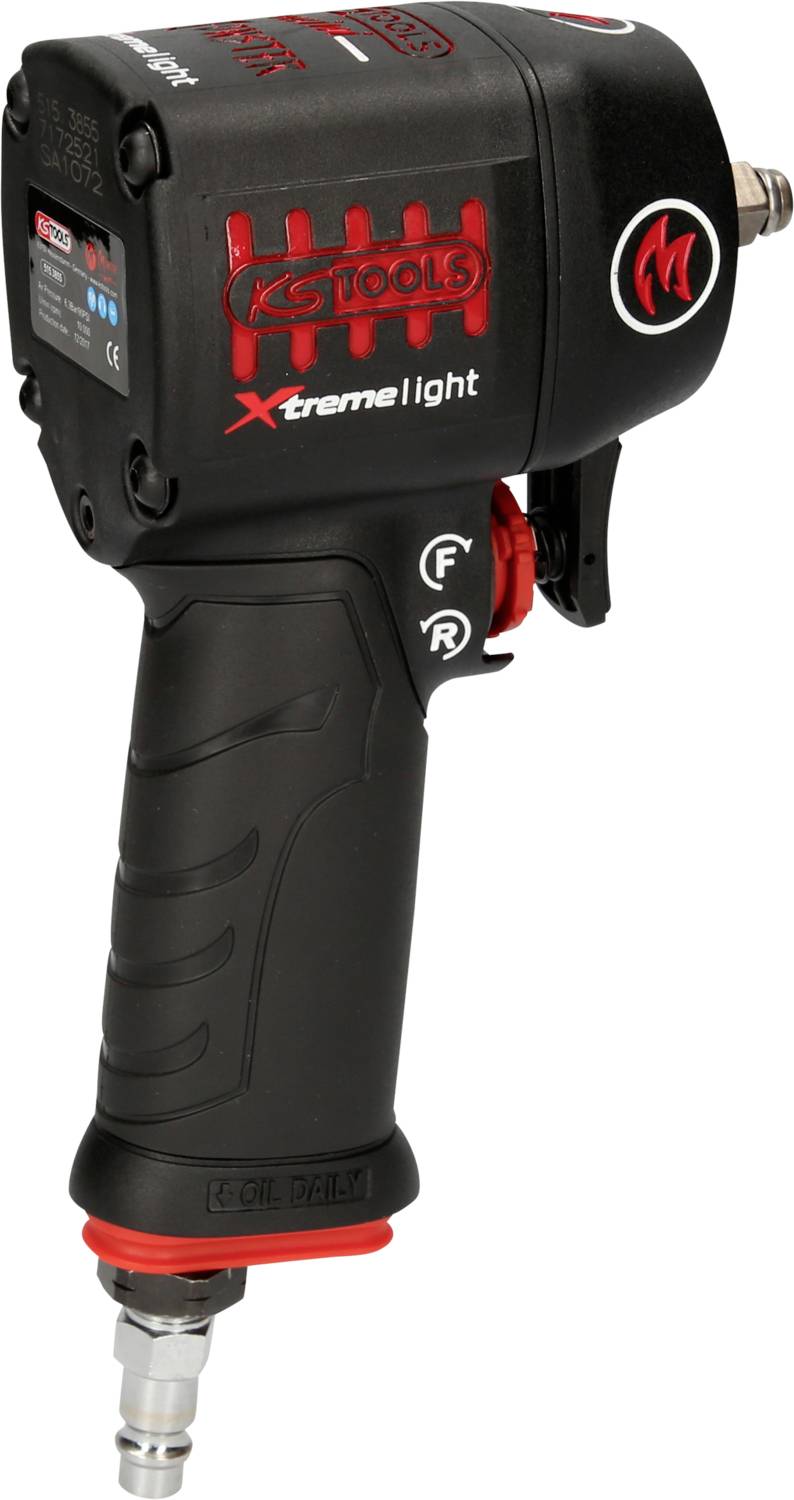

A black and red compressed air pistol with 'Xtreme' and 'KS Tools' markings, designed for professional mechanical work.

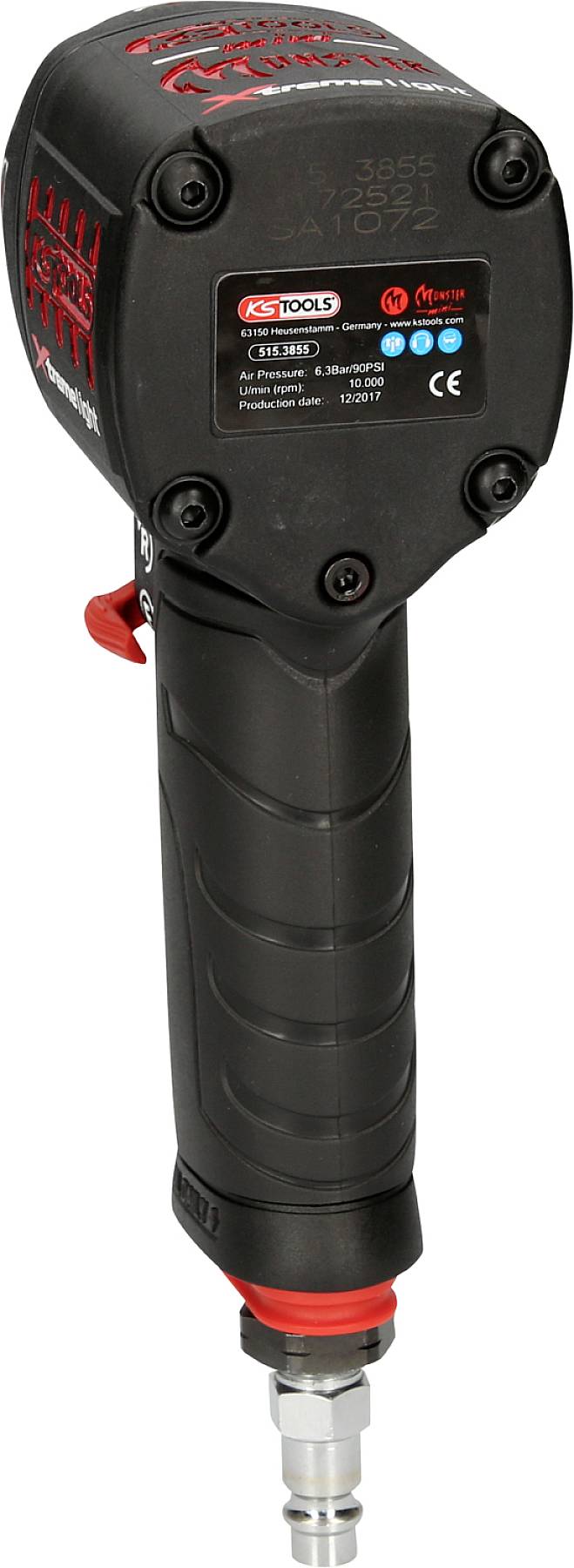

A black pneumatic impact wrench with a red switch and silver connection.

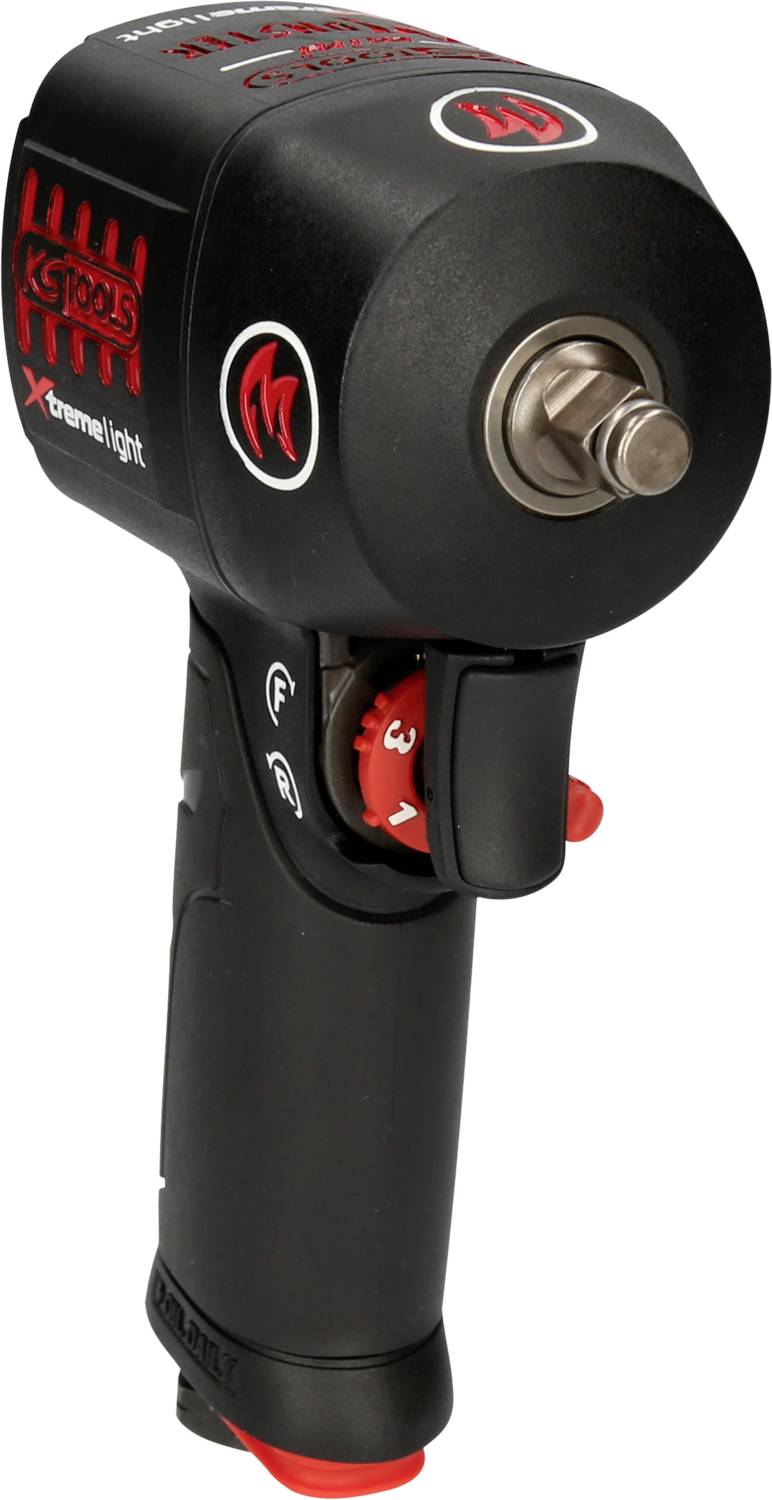

Black pneumatic impact wrench with red rotary control and 'Xtreme' printed on the side, suitable for automotive workshops.

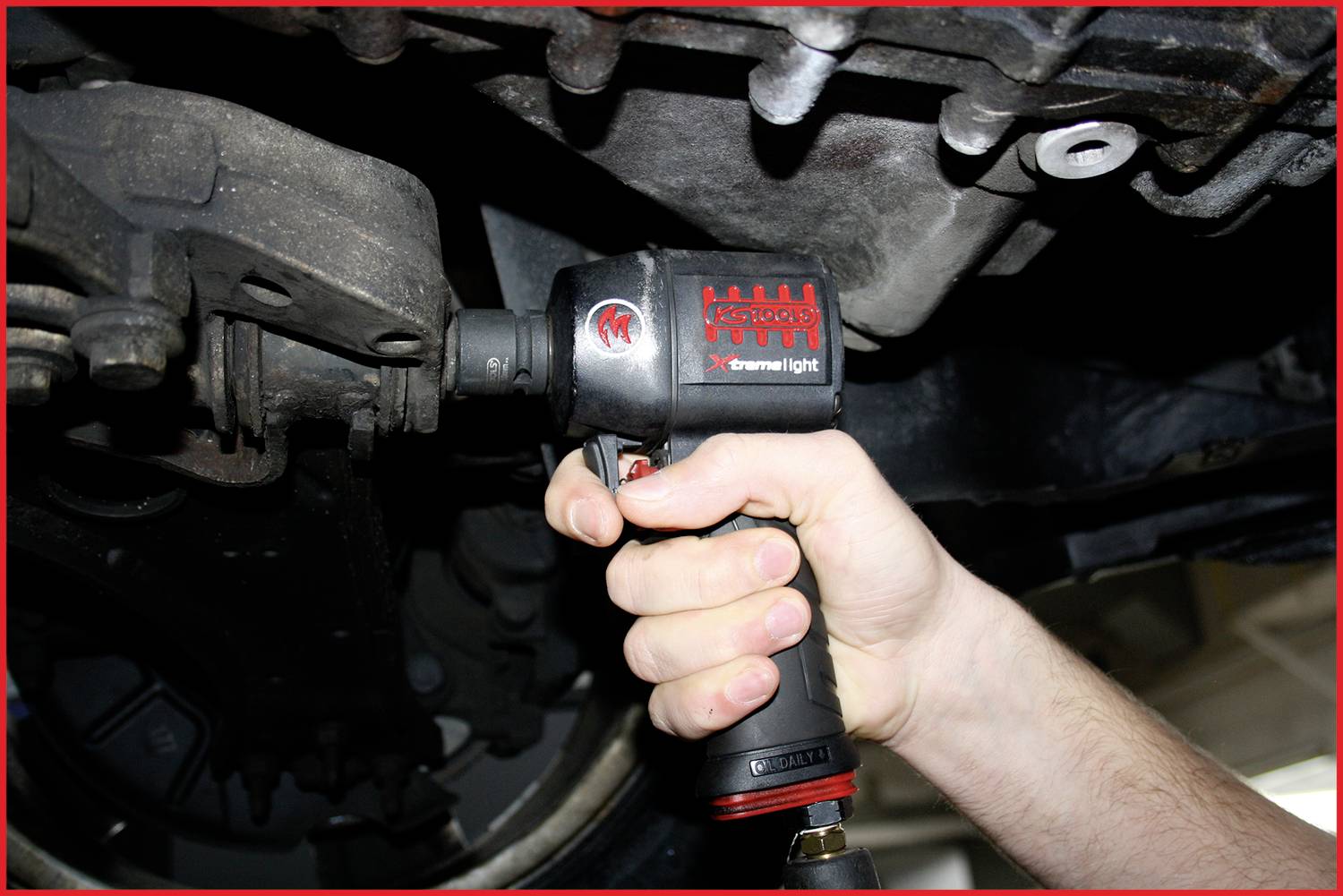

A person is repairing a car by working on a screw with an impact driver. The focus is on the hand and the tool.

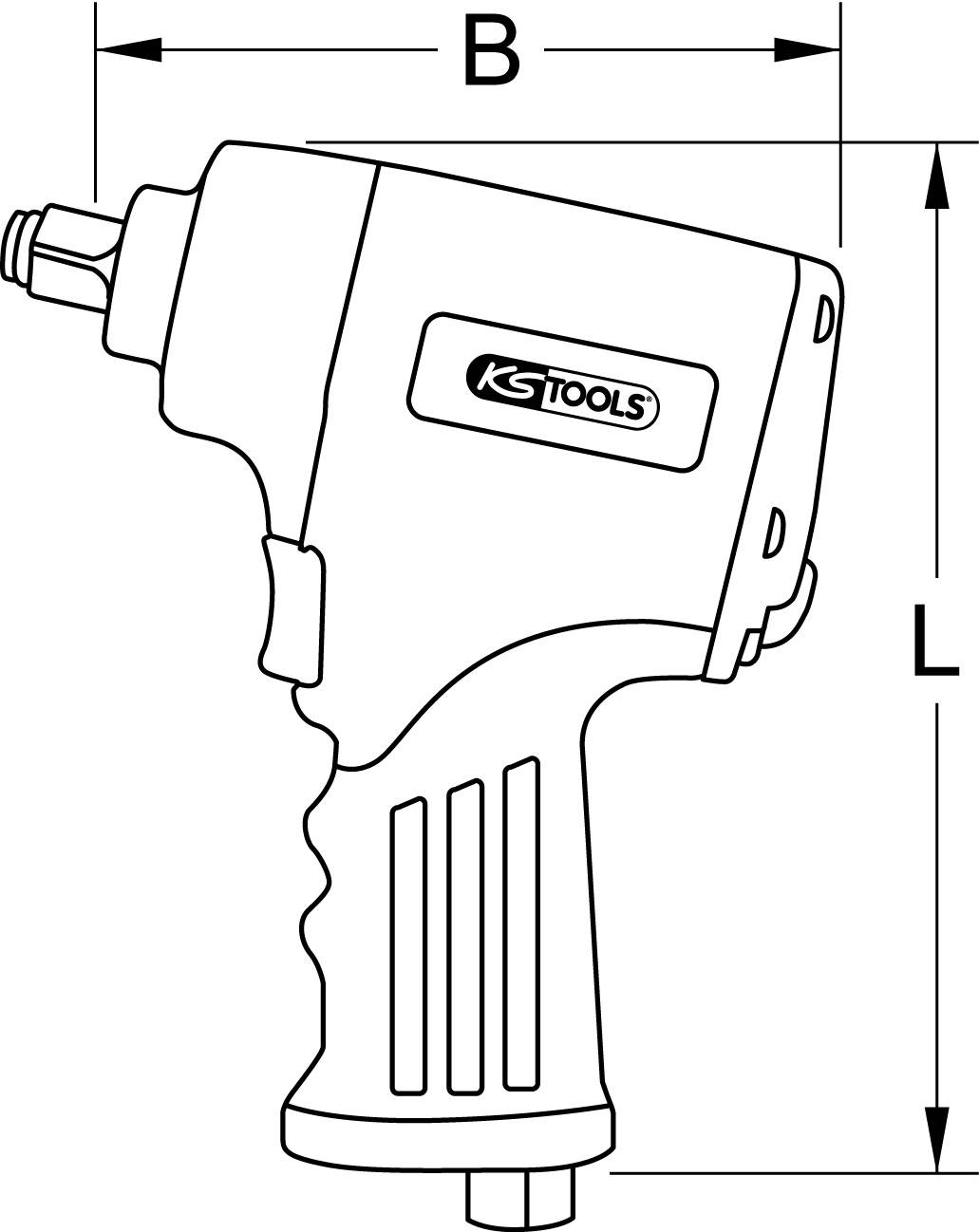

Drawing of a KS Tools compressed air impact wrench with dimensional specifications. Width (W) and length (L) markings are visible.

1/6

Fast track dispatch on Wed, 23 Sep

44 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 210.08 / piece)

€ 210.08

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

3/8" miniMonster Xtremlight high-performance compressed air hammer screwdriver 1,390 Nm

Torque (max.): 1390 Nm

Technical specifications

DIN EN ISO 28927-2 STANDARD Weight 1080 gTotal length L in mm: 185 mmHandle: Non-slip soft grip handle Width B 90 mmInclusion in inches: 3/8"Connection thread 1/4" PT Operating pressure in bar: Max. 6.3 bar min. Hose diameter 3/8" - 10 mm Vibration acceleration : < 9.18 m/s²Idle speed in rpm:10000 rpmSquare drive: 3/8"Max. clockwise rotation torque 1 = 270 Nm Air consumption in l/min: 135 l/min.Sound pressure level (DBA): 102 DBASound power level (DBA): 113 DBAMax. loosening torque: 1390 Nm Max. clockwise tortures2:2 = 640 Nm Max. clockwise torture3: 3 = 965 Nm Recommended torque: 615 Nm Uncertainty Vibration acceleration: 1.24 m/s²Max. Screw size: M 16

Product type: Pneumatic impact driver

Tool holder: 3/8" (10 mm) male square

Connector: 1/4" (6,35 mm)

Max. operating pressure: 6.3 bar

Torque (max.): 1390 Nm

Rotational speed (max.): 10000 U/min

Air consumption: 135 l/min

Weight: 1080 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2700772 KS Tools 515.3855 515.3855 Pneumatic impact driver Tool holder: 3/8" (10 mm) male square Torque (max.): 1390 Nm

Information

Information 2700772 KS Tools 515.3855 515.3855 Pneumatic impact driver Tool holder: 3/8" (10 mm) male square Torque (max.): 1390 Nm

Conformity certificate

Conformity certificate 2700772 KS Tools 515.3855 515.3855 Pneumatic impact driver Tool holder: 3/8" (10 mm) male square Torque (max.): 1390 Nm

Description

With non-slip soft-grip handleAir exhaust by pushing down the handleWith practical one-hand toggle switch (left / right)Easy to operateSuitable for right and left-handed users simply by reversing the shift lever3-way torque pre-selectionHigh performance industrial-Jumbo impact mechanismHigh durabilityCold-insulated handleIncluding 1/4" coupling connectorUltra-light casing
