Name: KVS3GR Cable gland screw fixing, with strain relief M20 x 1.5 M20 x 1.5 Polyamide Grey 1 pc(s)
SKU: 1521103
Availability: InStock

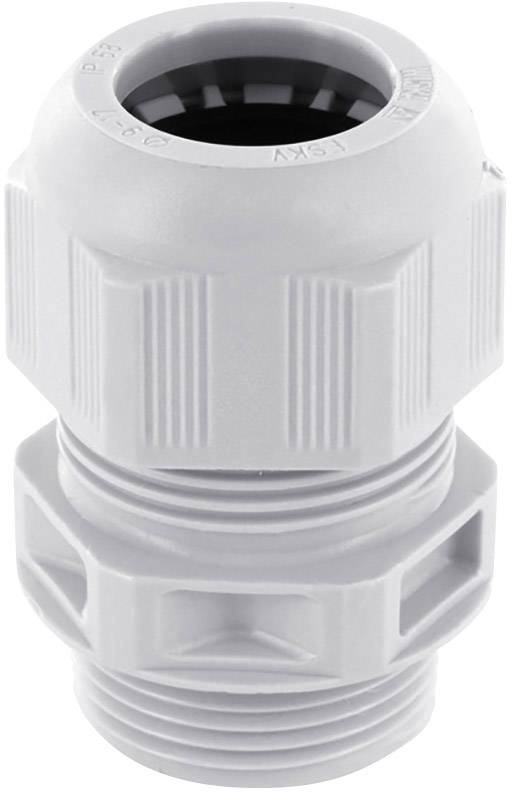

A grey plastic cable gland, comprising a screwable top section and a threaded bottom section. Suitable for cable entries.

Image similar

Product type

Cable gland

External thread

M20 x 1.5

Type

Metric

Material

Polyamide

Clamp Ø

6 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

109 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.29 / piece)

€ 2.79

-18 %

€ 2.29

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by TRU COMPONENTS

TRU COMPONENTS 1593306 Cable gland M20 Polyamide Silver-grey (RAL 7001) 1 pc(s)

Fast track dispatch on Wed 11 Nov

€ 0.73

incl. VAT plus

Highlights & Details

Cable gland KVS3GR

Our service for you

Technical specifications

Product type: Cable gland

Features: screw fixing
with strain relief

Factory colour: Grey

External thread: M20 x 1.5

Internal thread: M20 x 1.5

Bore diameter: 13 mm

Type: Metric

Material: Polyamide

Clamp Ø: 6 mm

Terminal Ø (max.): 13 mm

Thread length: 10 mm

Height: 36 mm

Min. temperature: -25 °C

Max. temperature: 80 °C

: IP66
IP68

Spanner size: 24 mm

Certification marks: DIN VDE 0471 Part 2

Weight: 10.4 g

Halogen-free: No

Content: 1 pc(s)

RoHS-compliant: Yes

Manufacturer part #: KVS3GR

Type: KVS3GR
