Buy kwb 41016 Tool steel Masonry twist drill bit 16 mm Total length 200 mm Cylinder shank 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A grey drill bit with a spiral cutting edge for drilling into materials.

A grey drill bit with a spiral cutting edge for drilling into materials.

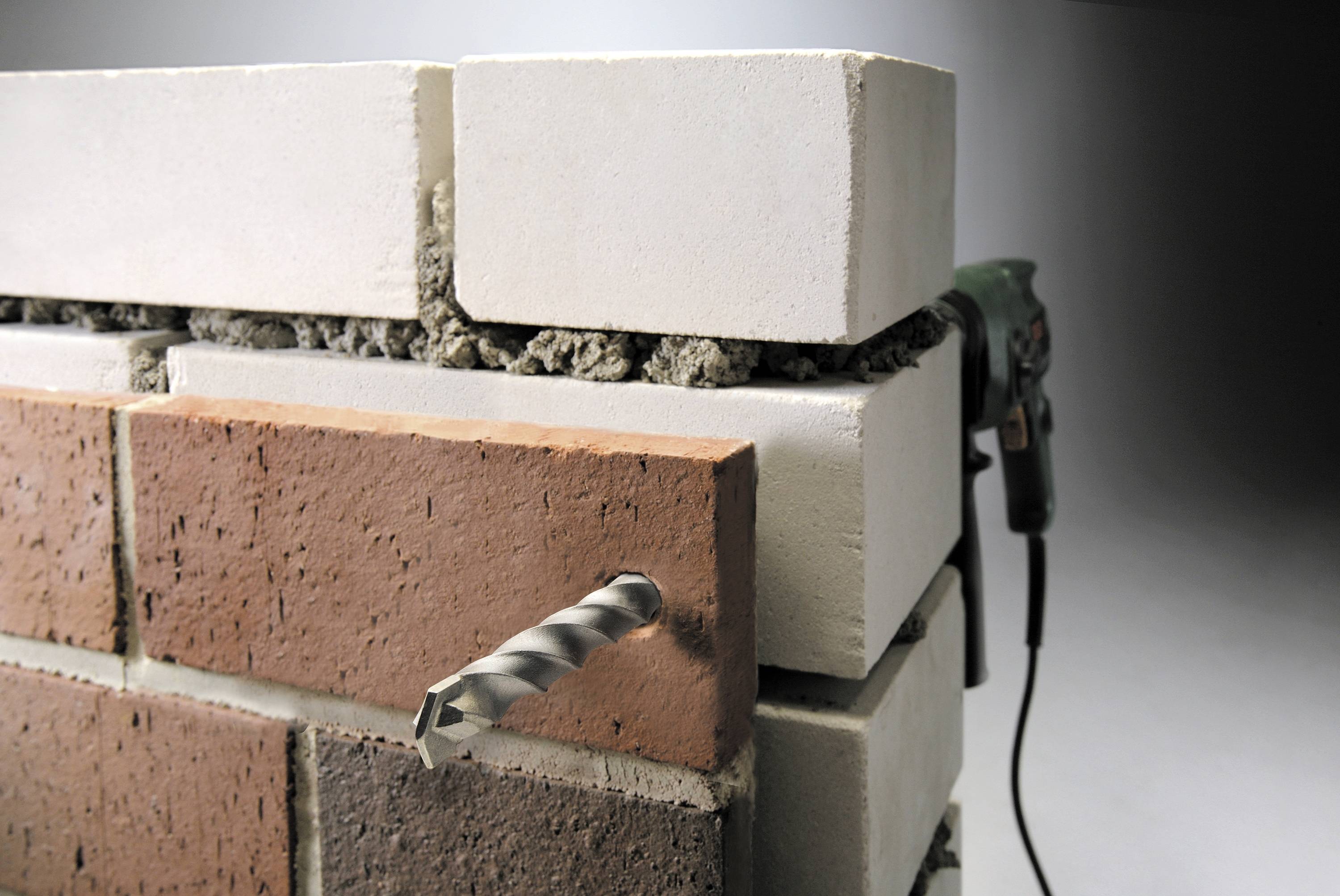

A masonry cross-section with a drill hole shows brick and insulation layers. A drill is inserted into the hole.

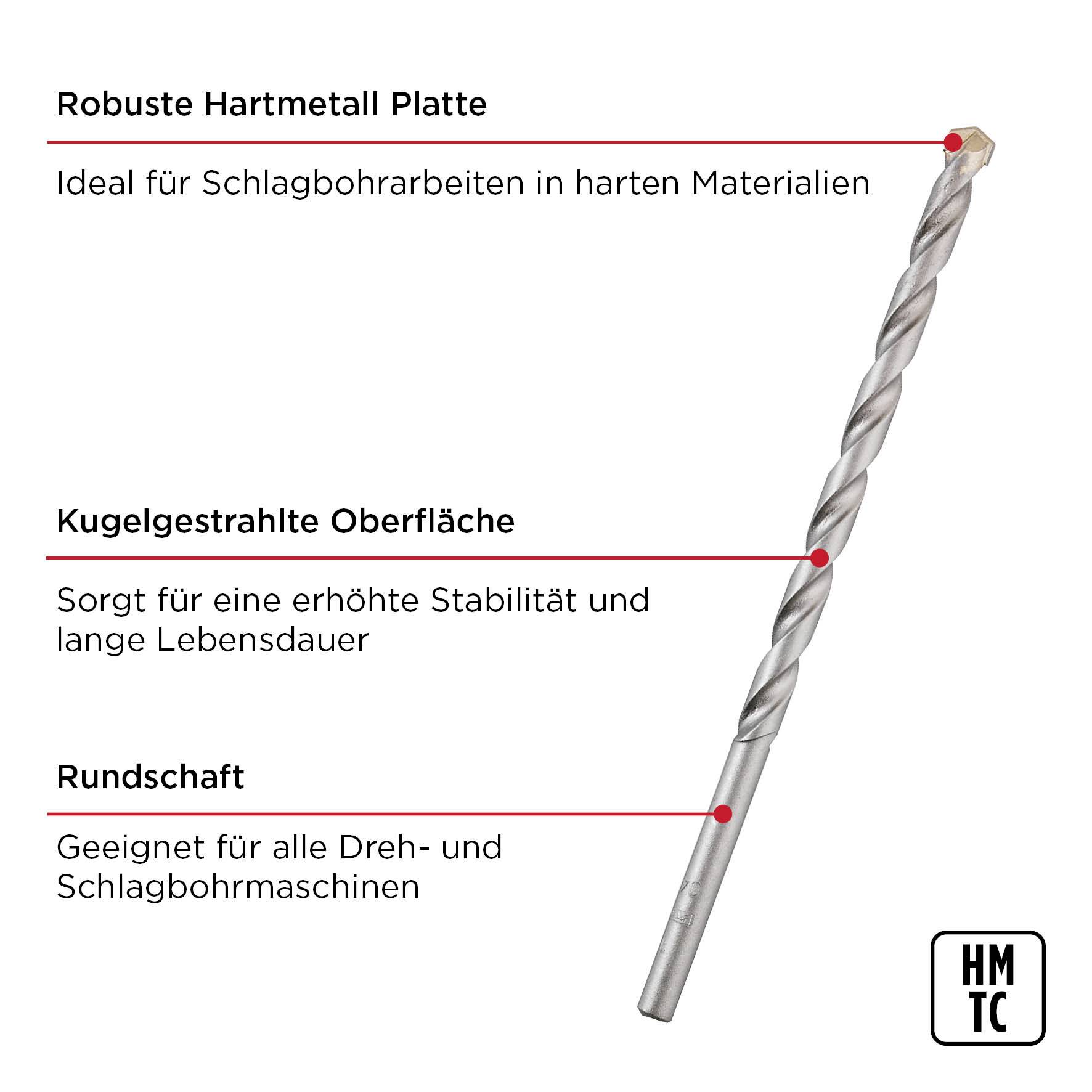

Drill bit with a robust tungsten carbide head and round shank, suitable for hard material. Shot-blasted surface for stability.

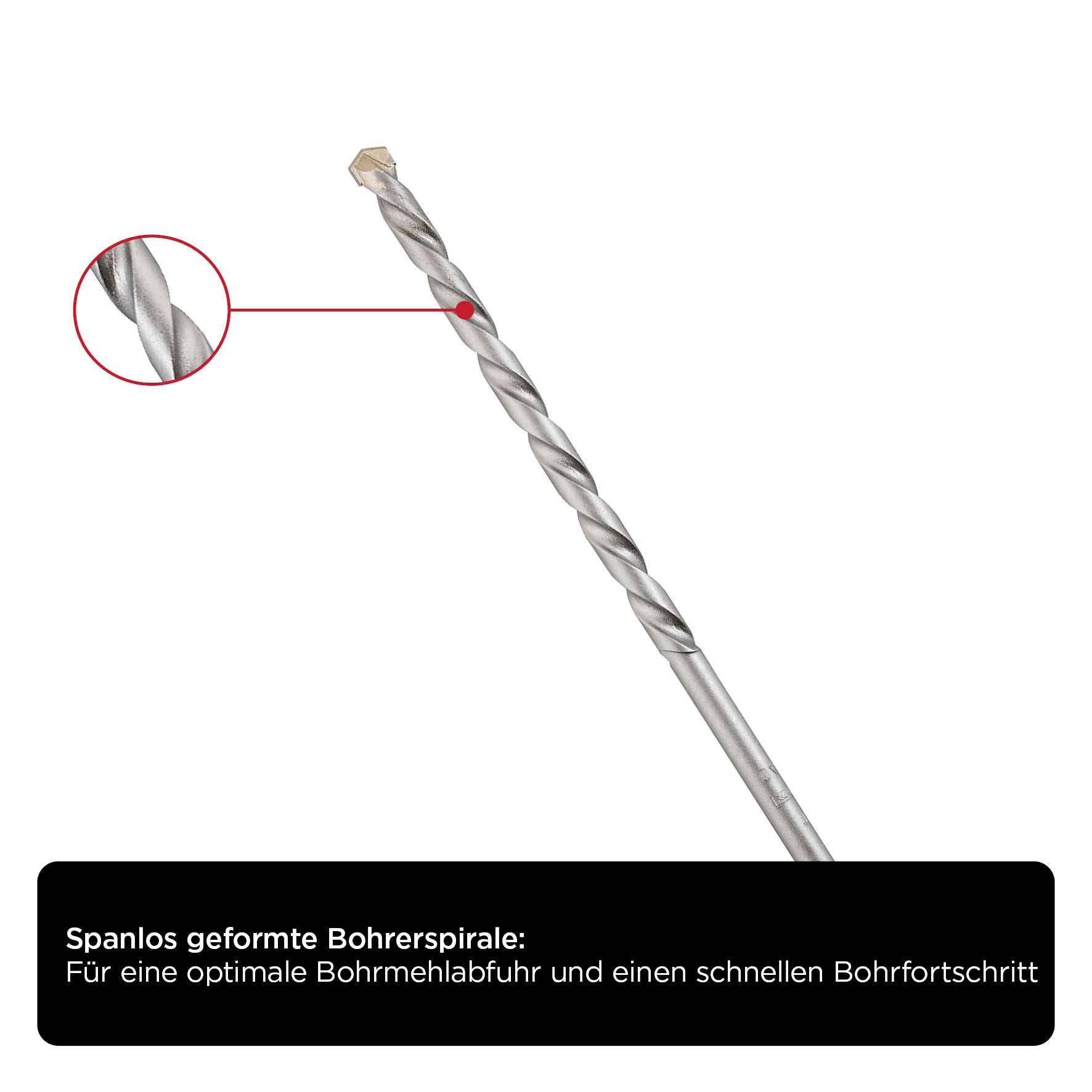

Drill Spiral in Detail: Close-up shows chip-free formed spiral for optimal chip removal and rapid progress.

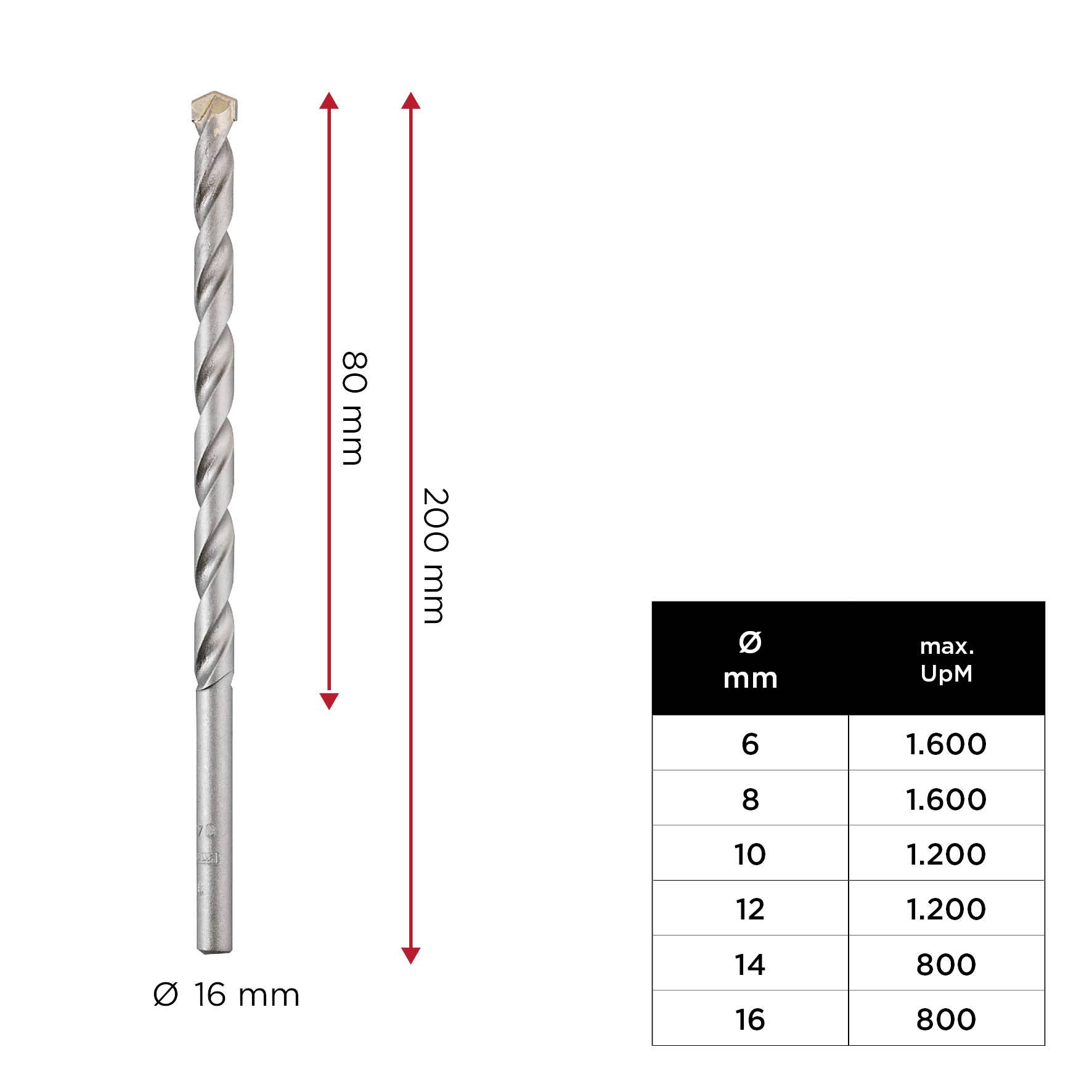

'Drill bit with Ø 16 mm, length 200 mm. Table shows maximum revolutions per minute: 6/8 mm - 1,600, 10 mm - 1,200, 12/14 mm - 800.'

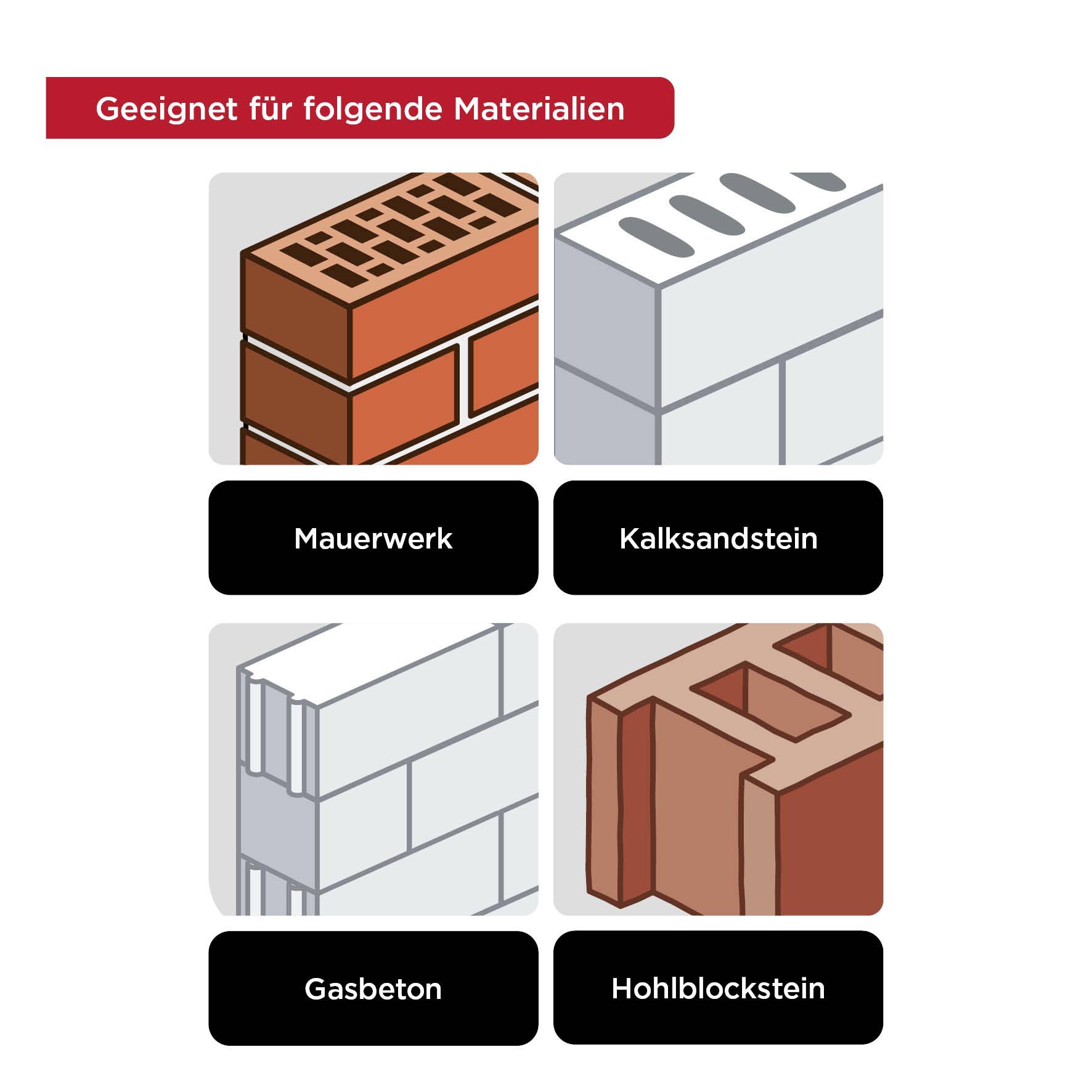

The image shows four types of building materials: masonry, calcium silicate brick, aerated concrete, and hollow block stone. They are arranged in a table.

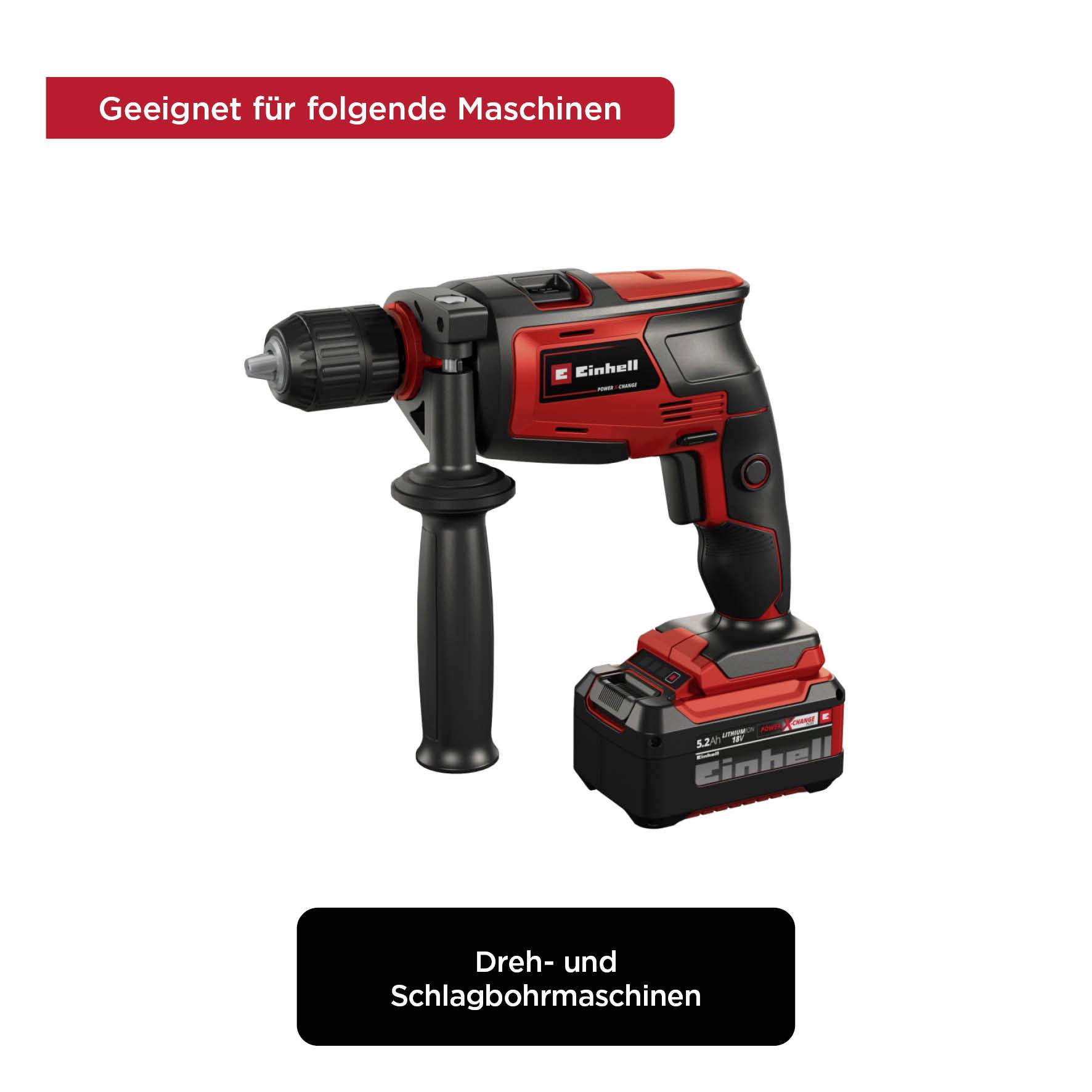

'Cordless Drill with Handle' suitable for 'Rotary and Percussion Drills', depicted in the centre.

1/7

kwb

Product type

Masonry twist drill bit

DIN standard

DIN ISO 5468

Drill hole Ø

16 mm

Material

Tool steel

Material suitability

Masonry

Flintlime brick

Foamed concrete

EAN:

Part number:

Item no:

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 8.99 / piece)

€ 8.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

KWB masonry drill Ø 16.0 mm 041016 (length 200 mm, carbide-tipped, according to ISO 5468)

High-quality drill for wall openings; impact-resistant drill for all turning and hammer drills; according to ISO 5468, carbide-tipped, high-temperature soldered; chip-free shaped drill spiral semicircular for good drilling dust transport; especially for masonry but also for natural and artificial stone or sand-lime bricks

Technical specifications

Product type: Masonry twist drill bit

DIN standard: DIN ISO 5468

Drill hole Ø: 16 mm

Material: Tool steel

Material properties: alloyed

Material suitability: Masonry
Flintlime brick
Foamed concrete

Working length: 80 mm

Content: 1 pc(s)

Total length: 200 mm

Tool holder: Cylinder shank

Shank Ø: 10 mm

Weight: 173 g

Length: 200 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2611475 kwb 41016 Tool steel Masonry twist drill bit 16 mm Total length 200 mm Cylinder shank 1 pc(s)

Description

Masonry drill bits, according to ISO 5468, carbide-tipped, high-temperature soldered, semi-circular, chip-free drill spiral for good drilling dust transport, impact-resistant drill bits for all turning and impact drills, ball-blasted surface, gray color, for masonry, natural and artificial stone, sand-lime brick.

This text is machine translated.

Description

Masonry drill bits, according to ISO 5468, carbide-tipped, high-temperature soldered, semi-circular, chip-free drill spiral for good drilling dust transport, impact-resistant drill bits for all turning and impact drills, ball-blasted surface, gray color, for masonry, natural and artificial stone, sand-lime brick.

This text is machine translated.
