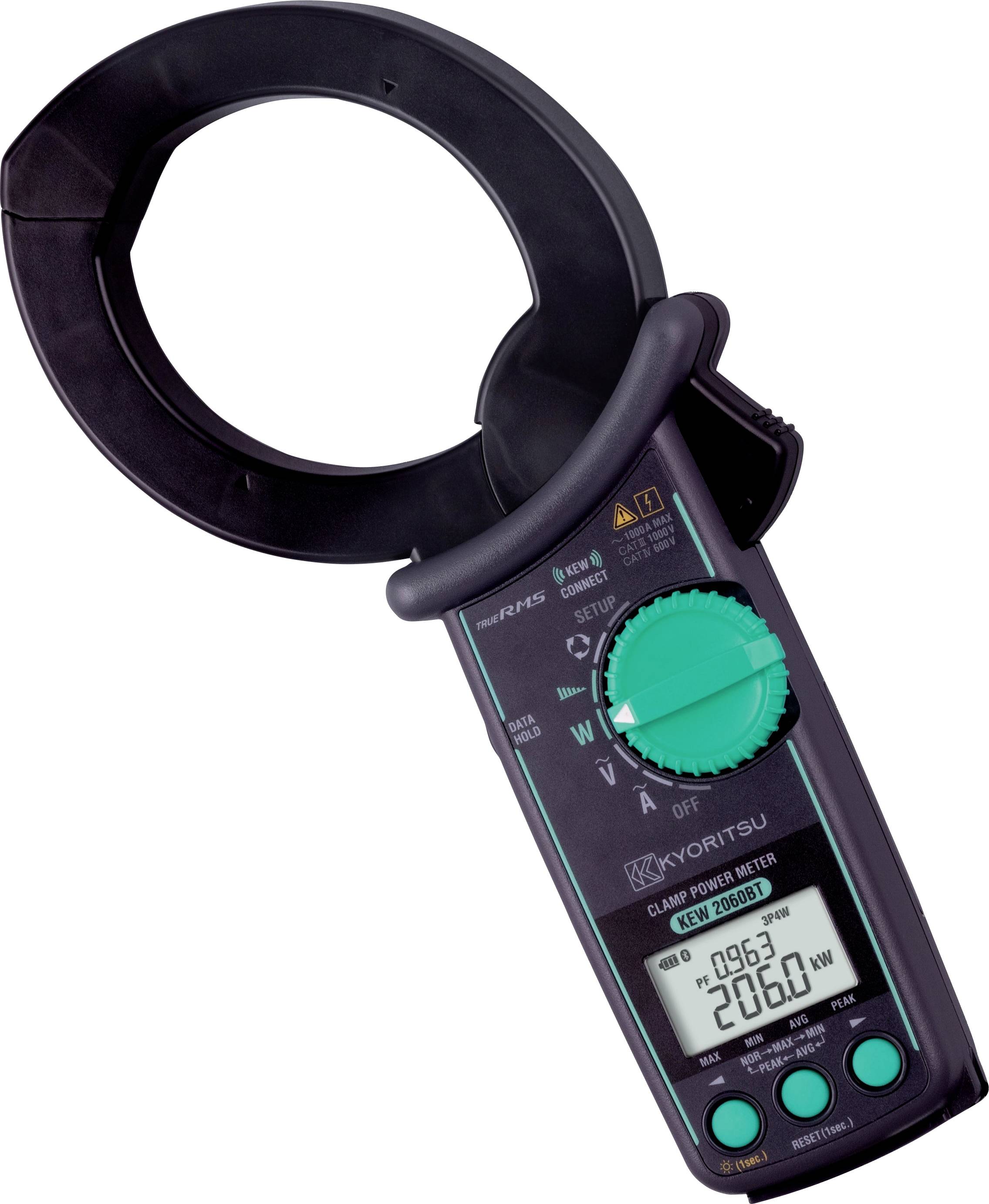

Name: Kyoritsu KEW 2060BT Clamp meter Digital CAT IV 300 V, CAT III 600 V, CAT II 1000 V Display (counts): 6000
Brand: Kyoritsu
SKU: 3642358
Availability: BackOrder

Highlights & Details

KEW 2060BT

CAT IV 300 V, CAT III 600 V, CAT II 1000 V

Technical specifications

Power measurement (single & three phases)
Harmonic analysis
Bluetooth connectivity
Indicator of direction of rotating field
Power (W)
Apparent power (VA)
Reactive power (var)
Power factor (PF)
Phase angle

Voltage reading range DC (min.): 0.1 V

Product type: Clamp meter

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 0.1 V

V AC reading range (max.): 1000 V

A DC reading range (max.): 1000 A

A AC reading range (min.): 0.01 A

Amperage reading range AC (max.): 1000 A

Reading range - resistance: 0.1 Ω to 600 kΩ

Frequency reading range: 40.0 Hz to 999.9 Hz

DC resistance: 2.4 MΩ

AC resistance: 2,4 MΩ

Basic accuracy: 0.7 %

Measurement type (details): True RMS

Frequency range: 40 Hz to 1 kHz

Interfaces: Bluetooth®

Power supply (details): 3 V

Height: 247 mm

Width: 105 mm

Length: 49 mm

Weight: 480 g

: Manufacturer's standards (no certificate)

Reading category: CAT IV 300 V
CAT III 600 V
CAT II 1000 V

Voltage metering: AC/DC

Current reading: AC

Type: KEW 2060BT

Display: Digital

Display (counts): 6000

Dim: (L x W x H) 49 x 105 x 247 mm

Calibration service: Factory calibration (ISO/DAkkS optional)

: IP40

Opening range of current clamps: 40 mm

Documents & Downloads

Datasheet

Datasheet 3642358 Kyoritsu KEW 2060BT Clamp meter Digital CAT IV 300 V, CAT III 600 V, CAT II 1000 V Display (counts): 6000

User & Safety Instructions

User & Safety Instructions 3642358 Kyoritsu KEW 2060BT Clamp meter Digital CAT IV 300 V, CAT III 600 V, CAT II 1000 V Display (counts): 6000

Description

The KEW 2060BT is a specialized measuring instrument, which is mainly designed for power measurements (effective, apparent, reactive power) and harmonic analyzes in one-phase and three-phase systems.

This text is machine translated.

Scope of delivery

Test leads (7066A)
Batteries (2x LR6)
Carry bag (9125)
PC Software
Quick guide
Calibration certificate

Description

The KEW 2060BT is a specialized measuring instrument, which is mainly designed for power measurements (effective, apparent, reactive power) and harmonic analyzes in one-phase and three-phase systems.
