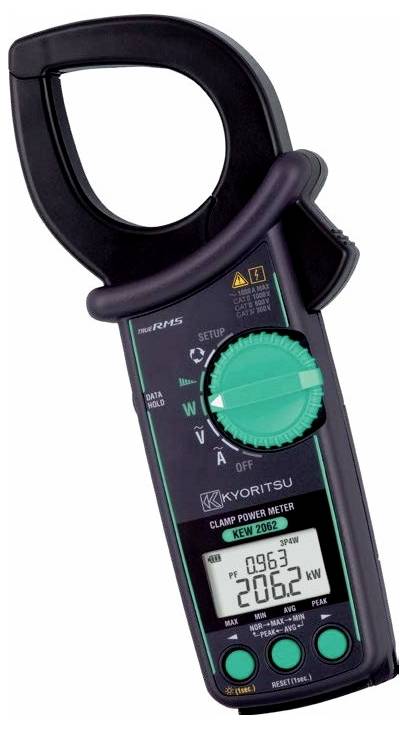

Kyoritsu KEW 2062 Clamp meter Digital CAT IV 300 V, CAT III 600 V, CAT II 1000 V Display (counts): 6000
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,145.00 / piece)
€ 1,145.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
KEW 2062
- CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Technical specifications
- Effective/apparent/reactive power
- Power factor
- Harmonic analysis (1.-30.)
- Phase rotation
- Data hold
- Min/Max
- Distortion factor display (THD)
- Peak measurement (peak)
- Voltage reading range DC (min.)
0.1 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
1000 V
- A AC reading range (min.)
0.1 A
- Amperage reading range AC (max.)
1000 A
- Reading range - resistance
0.1 Ω to 60 kΩ
- Frequency reading range
40 Hz to 999.9 Hz
- DC resistance
2.4 MΩ
- AC resistance
2,4 MΩ
- Basic accuracy
0.7 %
- Measurement type (details)
True RMS
- Frequency range
40 Hz to 1 kHz
- Interfaces
USB
- Power supply (details)
3 V
- Height
247 mm
- Width
105 mm
- Length
49 mm
- Weight
470 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 300 V
CAT III 600 V
CAT II 1000 V
- Voltage metering
AC/DC
- Current reading
AC
- Type
KEW 2062
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 49 x 105 x 247 mm
- Interfaces
USB
IP40
- Opening range of current clamps
40 mm
Documents & Downloads
Datasheet
Datasheet 3642359 Kyoritsu KEW 2062 Clamp meter Digital CAT IV 300 V, CAT III 600 V, CAT II 1000 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 3642359 Kyoritsu KEW 2062 Clamp meter Digital CAT IV 300 V, CAT III 600 V, CAT II 1000 V Display (counts): 6000
Description
Kyoritsu pliers power meter KEW 2062
This text is machine translated.
This text is machine translated.
Scope of delivery
- Test leads (7107A)
- USB cable (8245)
- Bag (9156)
- Batteries (2x AA)
- Software (KEW Windows)
- Manual
