Image similar
LAPP 61721760 SILVYN® FPS 38x45 10m GY Conduit Grey 45 mm 10 m
Product type
Conduit
Content
10 m
Material
Polyamide
Conduit features
flame-retardant
halogen-free
oil-resistant
Inside diameter
45 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (1 m = € 30.90)
€ 309.00
incl. VAT
Only 5 Set(s) available
Highlights & Details
SILVYN® FPAS protective tubing
- PA 6, UV-resistant, high chemical and mechanical resistance
- UL and Lloyds Reg. examined.
Our service for you
Technical specifications
- Free of silicone and halogen
- Product type
Conduit
- Content
10 m
- Factory colour
Grey
- Material
Polyamide
- Conduit features
flame-retardant
halogen-free
oil-resistant
- Inside diameter
45 mm
- Outside Ø
45 mm
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Bend radius
36 mm
- Manufacturer part #
61721760
- RoHS-compliant
Yes
- Type
SILVYN® FPS 38x45 10m GY
- Material (details)
PA 6
- Temperature range
(static) -40 - +120 ºC, (dynamic) -20 - +100 ºC °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1502631 LAPP 61721760 SILVYN® FPS 38x45 10m GY Conduit Grey 45 mm 10 m
User & Safety Instructions
User & Safety Instructions 1502631 LAPP 61721760 SILVYN® FPS 38x45 10m GY Conduit Grey 45 mm 10 m
Description
This highly flexible, corrugated cable conduit can be used in all types of machines or public buildings. Its high fatigue and impact resistance and superior flexing quality make it stand out from the crowd.
What kind of Conduits are you looking for?

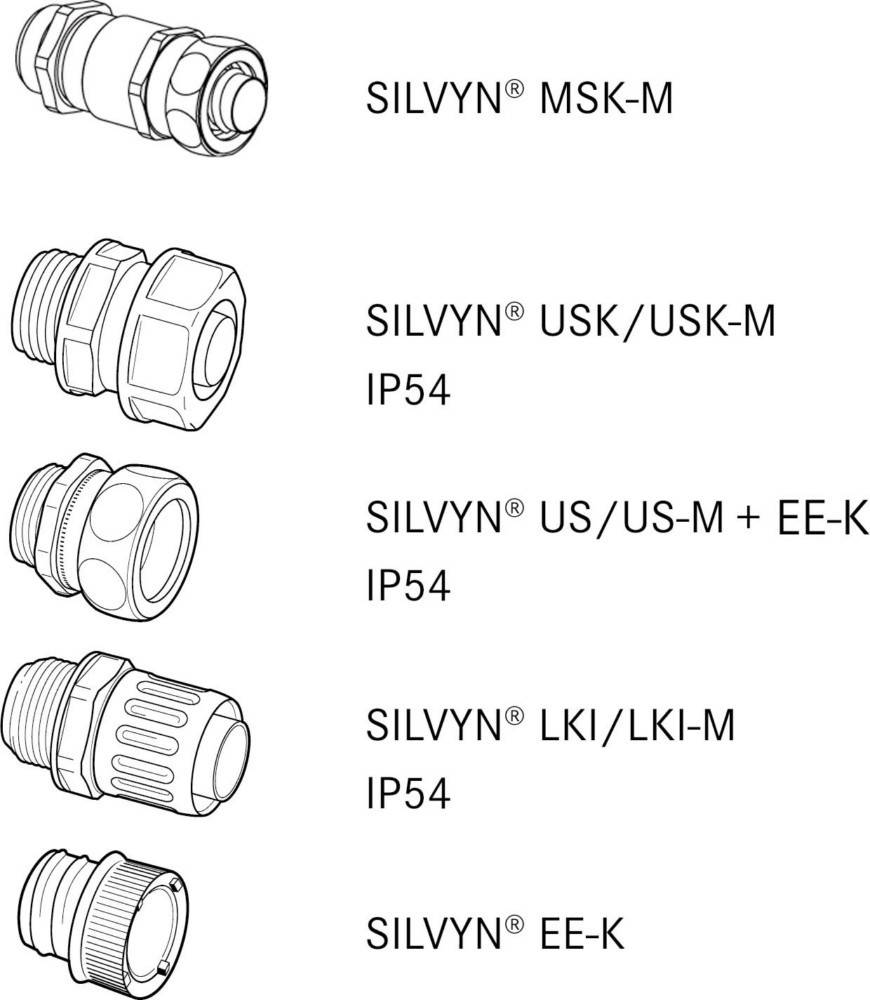

Accessories
