Buy LAPP ÖLFLEX® CLASSIC 400 P Control lead 2 x 1 mm² Grey 1312902/1000 1000 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

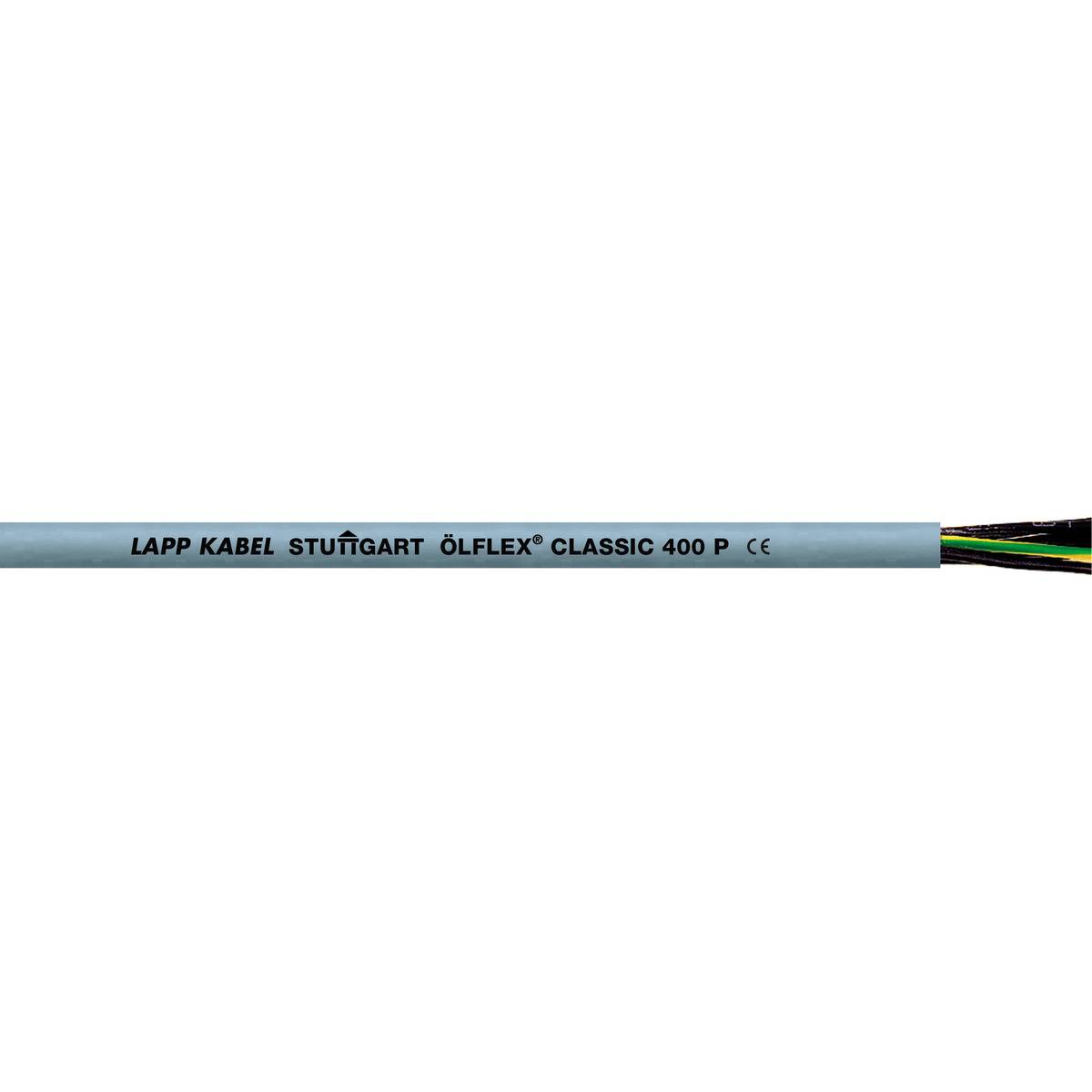

Grey electrical cable with the inscription 'LAPP KABEL STUTTGART ÖLFLEX CLASSIC 400 P', also showing coloured internal conductors.

Grey electrical cable with the inscription 'LAPP KABEL STUTTGART ÖLFLEX CLASSIC 400 P', also showing coloured internal conductors.

Image similar

LAPP

Product type

Control lead

No. of leads

2 x

Cross section (each core)

1 mm²

Cable type

ÖLFLEX® CLASSIC 400 P

Outside Ø

5.70 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

8 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Packaging units

Number

Set(s)

Total (1 m = € 1.84)

€ 1,835.00

incl. VAT

Only 8 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ÖLFLEX® CLASSIC 400 P PUR Control cable

Number-coded
High mechanical strength

Technical specifications

Product type: Control lead

No. of leads: 2 x

Content: 1000 m

Cross section (each core): 1 mm²

Cable features: PUR coating
Oil-resistant

Cable type: ÖLFLEX® CLASSIC 400 P

Outside Ø: 5.70 mm

Packaged: Yes

Wire ID code: Black wires with white number printing (VDE 0293)

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 12

Halogen-free: No

Manufacturer part #: 1312902/1000

Factory colour: Grey

Insulation material: Polyurethane

Core layout: Finely stranded according to VDE 0295, Class 5 / IEC 228 Class 5

Sold per metre: No

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Certification marks: In accordance with: VDE Reg. No. 7030, sheath according to VDE 0250/0282.

Cross section: 2 x 1 mm²

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +85 °C

Min. temperature range (fixed installation): -40 °C

Type: ÖLFLEX CLASSIC 400 P 2X1

Nominal voltage (details): 300/500 V

Bend radius: For flexible use: 12.5 x external dia.; when laid fixed: 4 x external dia.

Temperature range: Moving: -5 - +70 °C, when fixed : -40 - +80 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1335789 LAPP ÖLFLEX® CLASSIC 400 P Control lead 2 x 1 mm² Grey 1312902/1000 1000 m

User & Safety Instructions

User & Safety Instructions 1335789 LAPP ÖLFLEX® CLASSIC 400 P Control lead 2 x 1 mm² Grey 1312902/1000 1000 m

Description

Because of its excellent mechanical, chemical and UV resistance, this cable is used everywhere that cables are subject to a great deal of wear due to harsh operational conditions.

Description

Because of its excellent mechanical, chemical and UV resistance, this cable is used everywhere that cables are subject to a great deal of wear due to harsh operational conditions.
