LEDmaxx 105626 1x Floor socket incl. CAT5 socket IP20 Aluminium

Socket in a retractable housing, partially open. Suitable for installation in tables or floors.
A silver light switch in a rectangular frame, lightly brushed metal, centrally positioned, with a glossy surface.

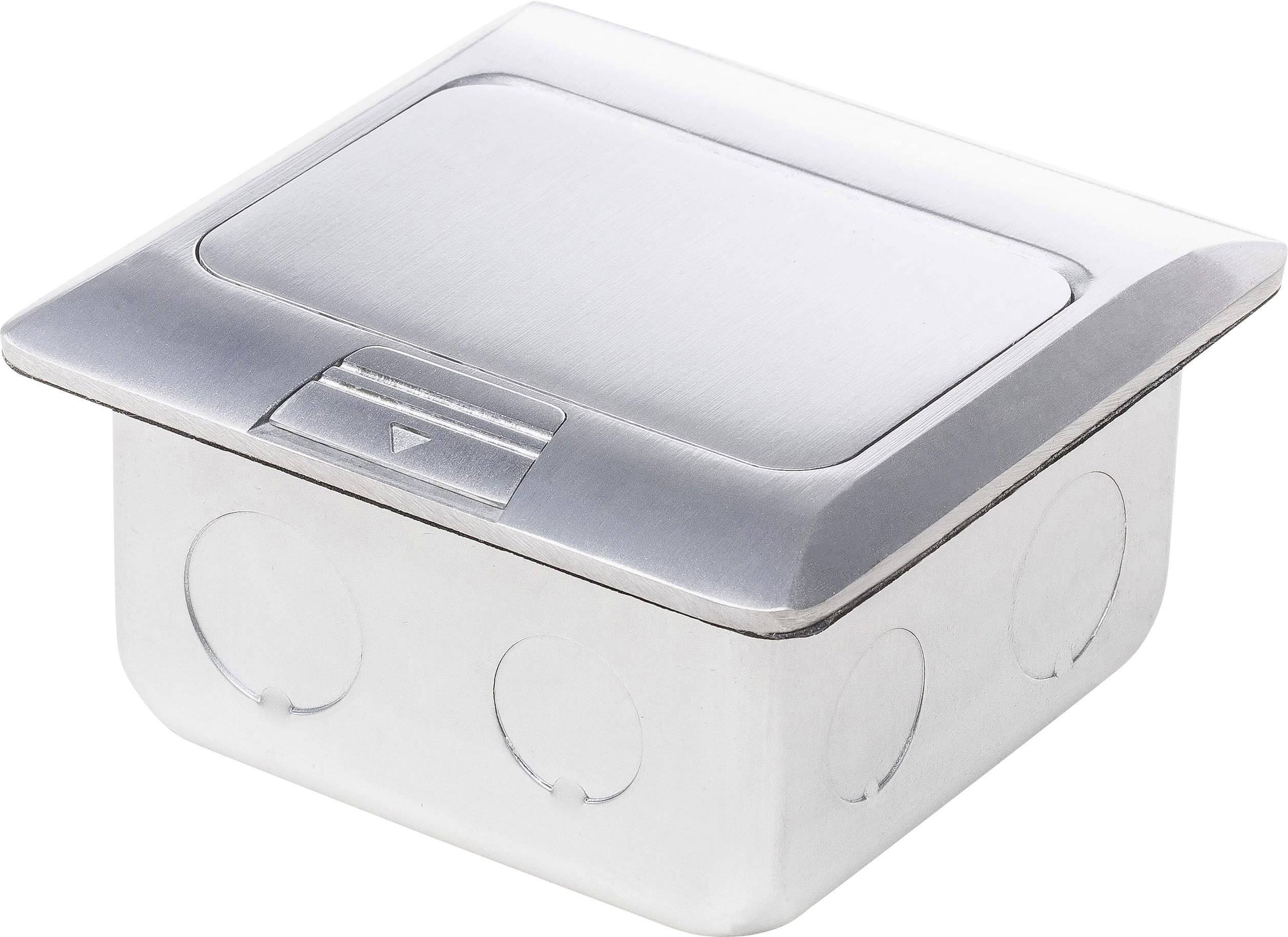

A rectangular stainless steel floor socket cover with a flap and round cut-outs on the sides.

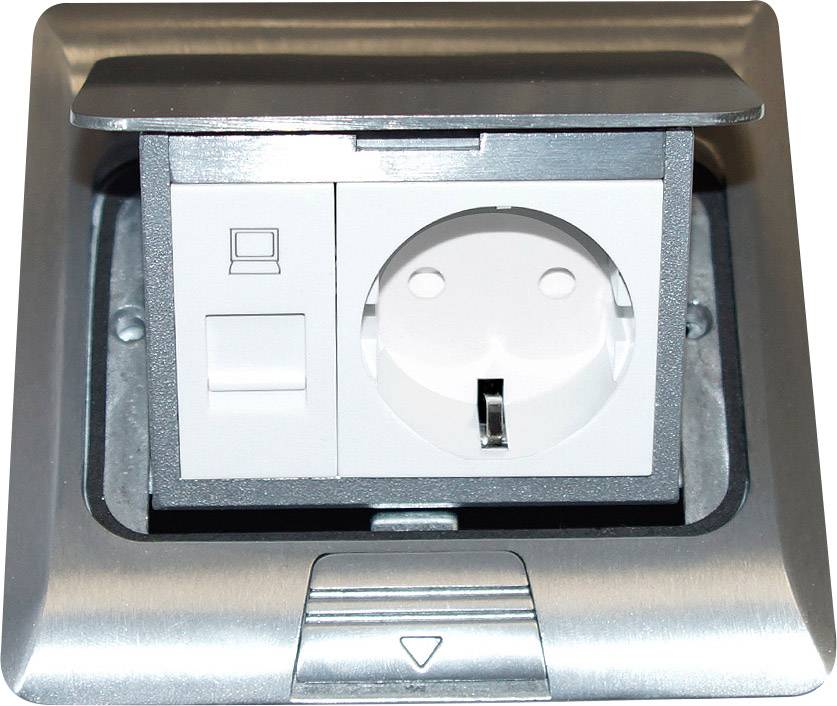

'Wall-mounted socket with hinged cover, metal frame; ready for use, suitable for European plugs with two round pins.'

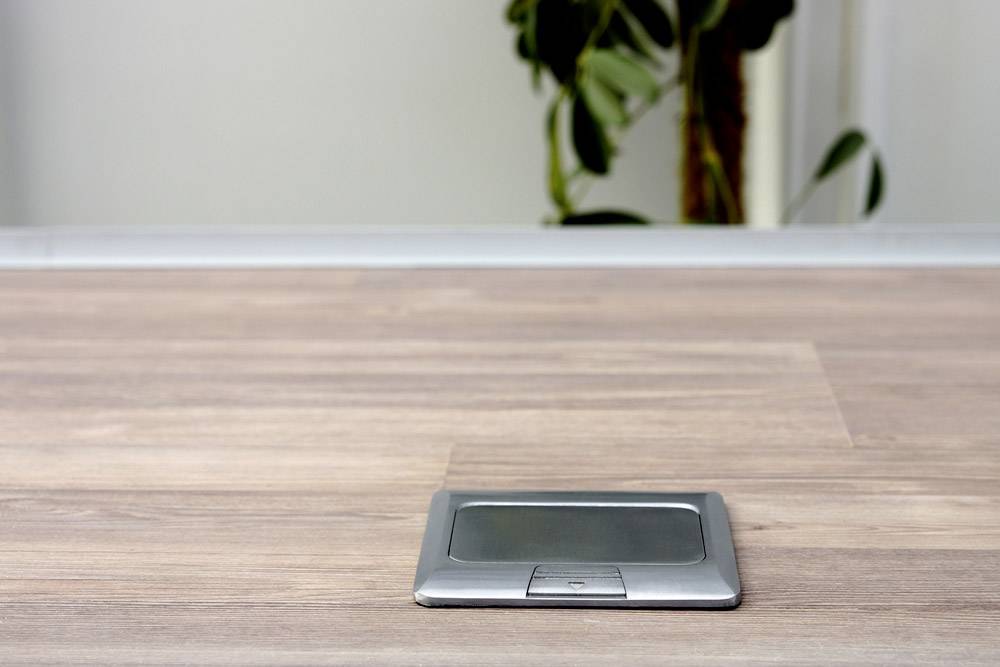

Socket integrated into a table, suitable for modern working environments. Background: blurred plant.

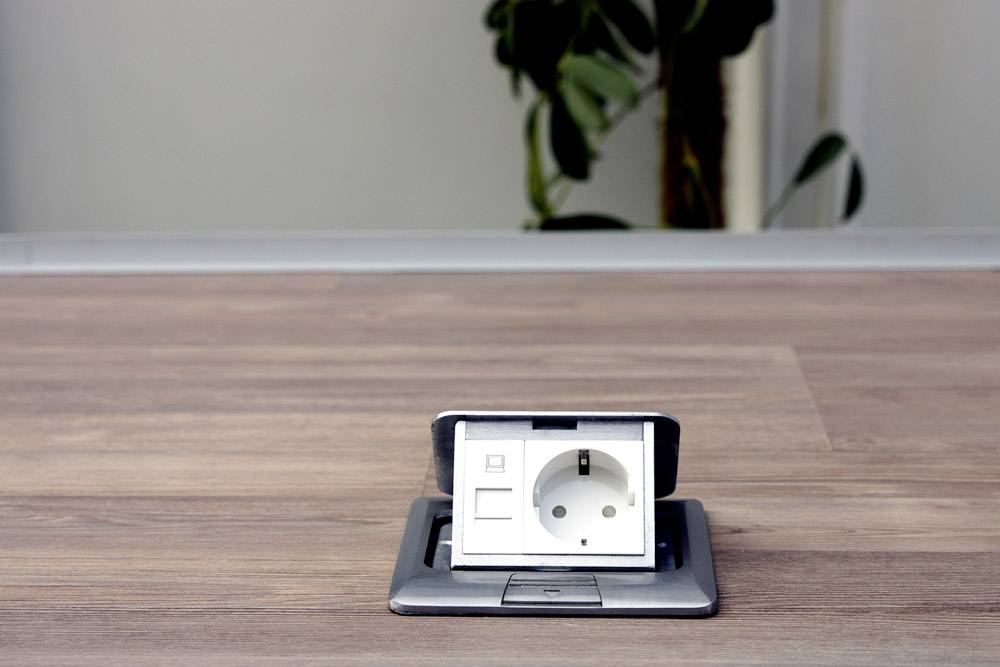

A wooden floor reveals an open electrical socket; a plant is blurrily visible in the background.

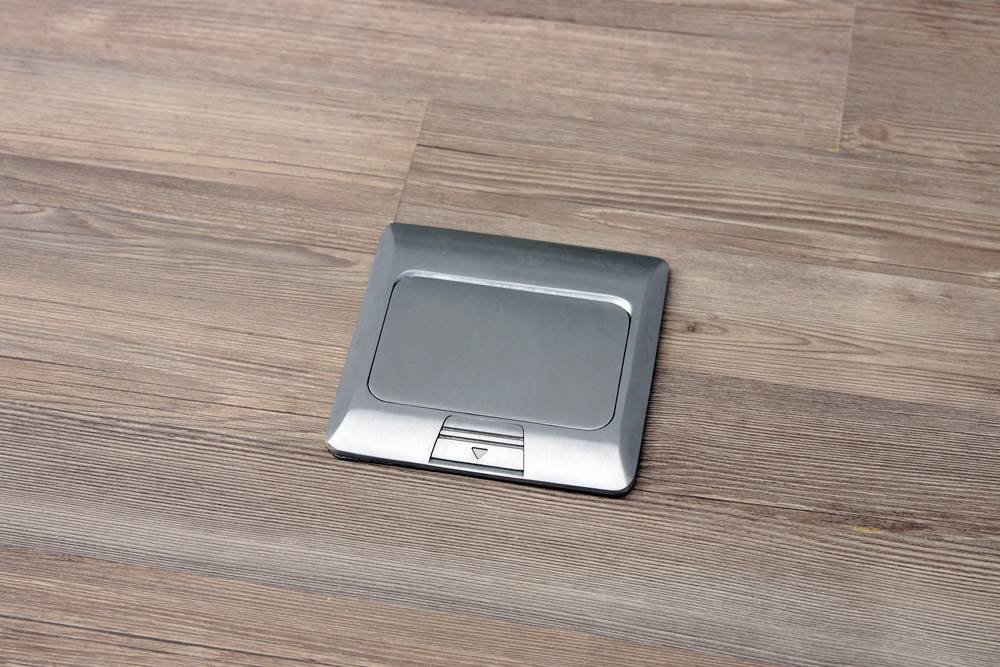

A recessed floor socket on a wooden floor. It is square and made of metal, flush-mounted.

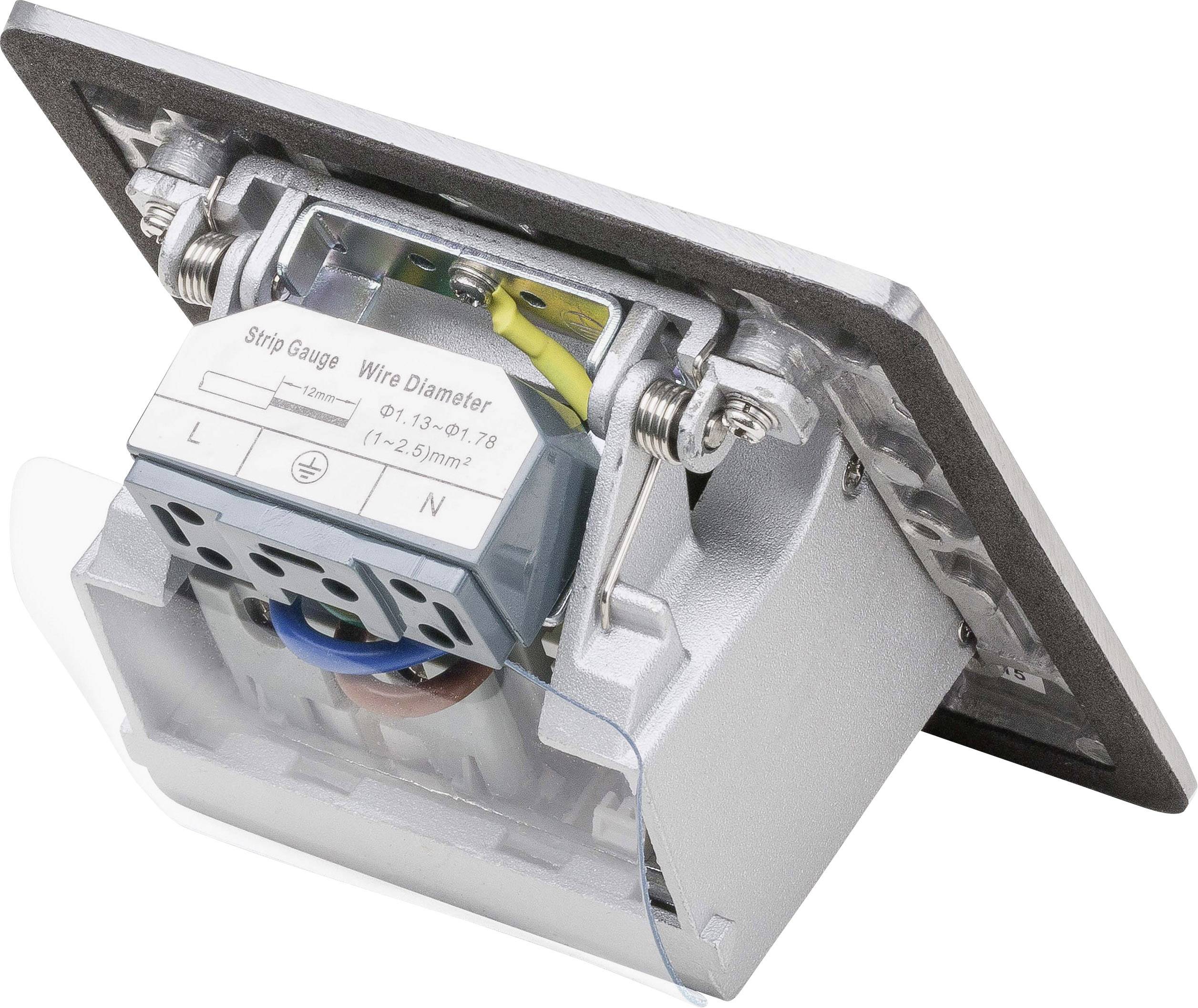

An electrical wall-mounted connection module with visible contact elements and cable connections. Adapter for mains power supply.
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
10 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 67.99 / piece)
€ 83.99
-19 %
€ 67.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 10 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Product type

Floor socket

Light bulb features

incl. CAT5 socket

Outlets

1

Nominal voltage

230 V

Nominal current

16 A

Mounting type

Recess-mount

Floor

Wall

Recess diameter

100 mm

Mounting depth

55 mm

Factory colour

Aluminium

IP20

Dim

(W x H x D) 120 x 120 x 80 mm

Width

120 mm

Height

120 mm

Depth

80 mm

Content

1 pc(s)

Documents & Downloads

Conformity certificate

Conformity certificate 1493188 LEDmaxx 105626 1x Floor socket incl. CAT5 socket IP20 Aluminium

Description

The floor and wall mounting socket is equipped with an earthing contact socket with increased touch protection and a module data socket RJ45 8-pin CAT5 with self-closing dust protection cover. Galvanized mounting box 100x100x55 mm. Cover aluminum cast/ground 120x120 mm. Can be driven over. With plug connection 1 - 2.5 mm².

This text is machine translated.
