LEDmaxx LEDconnect LED plinth lighting LED (monochrome) Built-in LED 9 W Warm white White
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.86
€ 20.98
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 36.13
-40 %
€ 21.84
plus VAT.
Only 6 Piece(s) available
Highlights & Details

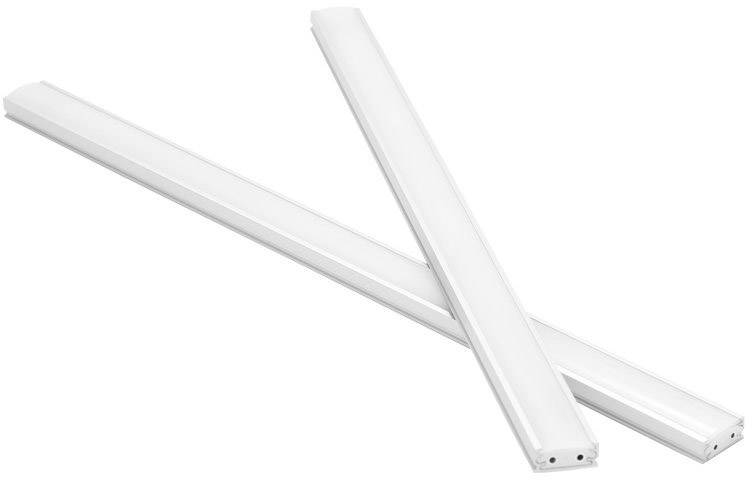

LED chassis lamp LEDconnect
- Power= 9 W
- Total luminous flux= 540 lm
- Colour temperature= 2700 K
- Warm white
Technical specifications
- Product type
LED plinth lighting
- Type
Rectangular
- Power supply (LOV)
mains-powered
- Operating voltage
24 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Length
60 cm
Built-in LED
- Width
1.8 cm
- Rating per bulb
9 W
- Height
0.8 cm
9 W
2700 K
- Colour
Warm white
540 lm
- Total luminous flux
540 lm
- Light features
Dimmable
Expandable
- Radiation angle
100°
IP20
- Factory colour
White
- Dim
(L x W x H) 60 x 1.8 x 0.8 cm
n.rel.
- Light bulb included
Yes
- Product series
LEDconnect
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2106385 LEDmaxx LEDconnect LED plinth lighting LED (monochrome) Built-in LED 9 W Warm white White
User & Safety Instructions
User & Safety Instructions 2106385 LEDmaxx LEDconnect LED plinth lighting LED (monochrome) Built-in LED 9 W Warm white White
Description
LEDconnect is the new flexible under-cabinet lighting system from LEDmaxx.
Thanks to a variety of accessories installed quickly and easily. LEDconnect is super thin and emits warm white and continuous light. Individual points of light are no longer visible here.
Extremely simple installation. A functioning system requires:
1. The light. Available in sizes 150mm, 300mm, 600mm, 900mm, 1.000mm and 1.200mm.
2. The 3M mounting strips. One 2er set per lamp.
3. The AC adapter. Available in three thicknesses, depending on your installation: 40,60 and 120 watts.
4. Switch or input cable: Sensor switch or dimmer switch. Input cable simple
Optionally, the system can be adapted to the needs by:
Connector cable, corner connector left or right, T-connector, cross connector, L-connector, intermediate connector, mounting clip flat or 90°.
This text is machine translated.
Thanks to a variety of accessories installed quickly and easily. LEDconnect is super thin and emits warm white and continuous light. Individual points of light are no longer visible here.
Extremely simple installation. A functioning system requires:
1. The light. Available in sizes 150mm, 300mm, 600mm, 900mm, 1.000mm and 1.200mm.
2. The 3M mounting strips. One 2er set per lamp.
3. The AC adapter. Available in three thicknesses, depending on your installation: 40,60 and 120 watts.
4. Switch or input cable: Sensor switch or dimmer switch. Input cable simple
Optionally, the system can be adapted to the needs by:
Connector cable, corner connector left or right, T-connector, cross connector, L-connector, intermediate connector, mounting clip flat or 90°.
This text is machine translated.
Scope of delivery
- LED down light
- User manual.
Hints
Please order suitable accessories separately.
