LINDY 2 Port HDMI 18G Splitter 2 ports HDMI splitter 3840 x 2160 p Black
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Only 3 Piece(s) available

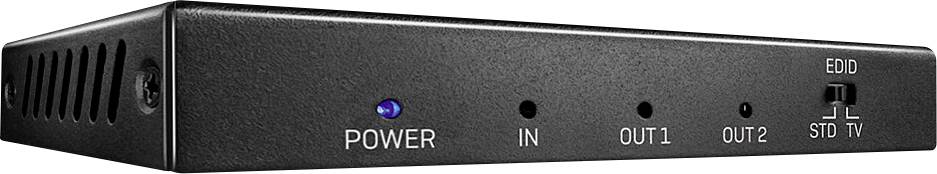

2 Port HDMI 18G Splitter
Highlights & Details
- Distributes the signal of an HDMI 2.0 source to 2 HDMI Displays
- Supports resolutions up to 4K@60Hz 4:4:4 including HDR
- HDCP 2.2 support for better compatibility
- EDID management for easy installation
Technical specifications
- Product type
HDMI splitter
- Supported monitors
2
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
2 x
- Interfaces (output)
HDMI™
- Resolution (max.)
3840 x 2160 p
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
342 g
- Width
146 mm
- Height
65 mm
- Depth
65 mm
- Dim
(W x H x D) 146 x 65 x 65 mm
- Port
2 ports
- Version
Cable
- Type A
HDMI plug
- Type B
HDMI plug
- Cable use
TV/monitor
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2361110 LINDY 2 Port HDMI 18G Splitter 2 ports HDMI splitter 3840 x 2160 p Black
Warranty Terms
Warranty Terms 2361110 LINDY 2 Port HDMI 18G Splitter 2 ports HDMI splitter 3840 x 2160 p Black
Description
The Lindy 2-port HDMI 18G splitter is a compact, powerful solution for distributing the HDMI 2.0 18G signal from a source device to two displays. With resolutions up to 4K 60Hz 4:4:4 8Bit, the splitter is perfect for striking digital signage systems in the retail sector, for displaying high-quality videos in different rooms of medical facilities or in sports bars.
The splitter can be cascaded over three further levels - ideal for displaying on several displays, for example in airports, railway stations or on the stock exchange.
The additional support of High-Dynamic Range ensures that video content can be viewed with higher brightness, improved contrast and wider color spectrum for true-to-life color reproduction.
HDCP 2.2 support ensures that when connected to source devices such as set-top boxes, Blu-ray players or 4K HDR media players, there are no problems with the multitude of 4K content. The intelligent switch for EDID management guarantees maximum compatibility with the display. Through its solid, compact design the splitter can be integrated inconspicuously in installations.
This text is machine translated.
The splitter can be cascaded over three further levels - ideal for displaying on several displays, for example in airports, railway stations or on the stock exchange.
The additional support of High-Dynamic Range ensures that video content can be viewed with higher brightness, improved contrast and wider color spectrum for true-to-life color reproduction.
HDCP 2.2 support ensures that when connected to source devices such as set-top boxes, Blu-ray players or 4K HDR media players, there are no problems with the multitude of 4K content. The intelligent switch for EDID management guarantees maximum compatibility with the display. Through its solid, compact design the splitter can be integrated inconspicuously in installations.
This text is machine translated.
Features
- AV-interface: HDMI
- Interface standard HDMI 2.0
- Supported bandwidth: 18Gbit/s.
- Maximum resolution: 3840x2160@60Hz 4:4:4 8Bit
- HDCP support: 2.2
- Audio: Audio pass-through
- Separate audio ports:
- CEC support: -
- Serial interface: -
- Special features: EDID emulation
- Inputs: 1 x HDMI (socket)
- Outputs 2 x HDMI (socket)
- Control: -
- Power supply / power supply: 5.5/2.1mm DC socket
- Housing dimensions (approx.) WxDxH: 100x56x16mm (3.94x2.2x0.63in)
- Case material: metal
- Net weight device/e: 0.263kg (0.58lb)
- OPERATING TEMPERATURE 0°C - 40°C (32°F - 104°F)
- STORAGE TEMPERATURE -20°C - 60°C (-4°F - 140°F)
- Humidity 20 - 90% RH (non-condensing)
- Power consumption: 5VDC 1A
Scope of delivery
- HDMI Splitter
- Multi-country power supply (UK, EU, US & OFF)
- Lindy manual
