LINDY Audio/phono Extractor 38363 [RCA - HDMI]
EAN:
Part number:
Item no:
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Only 5 Piece(s) available

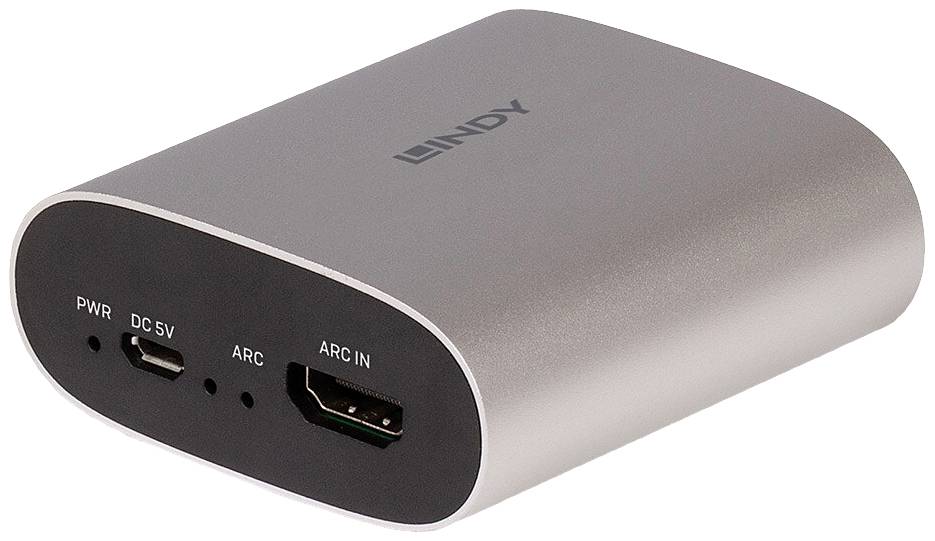

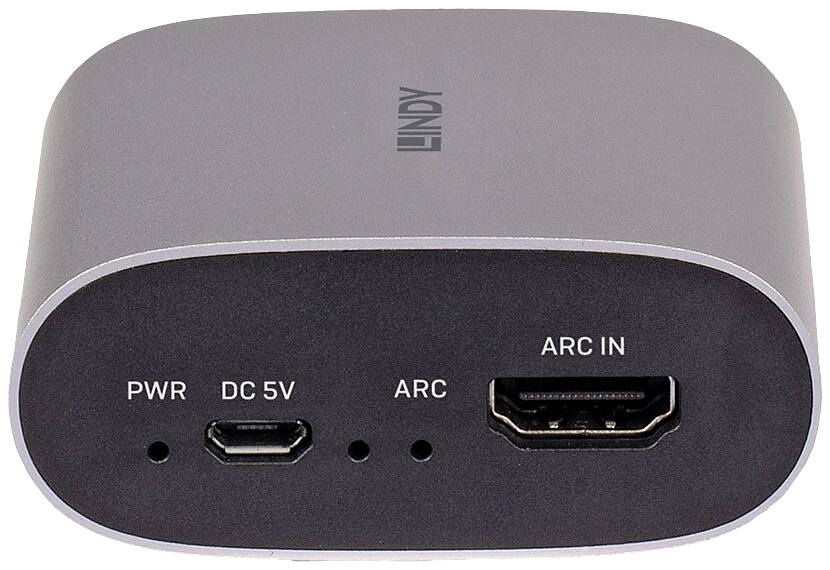

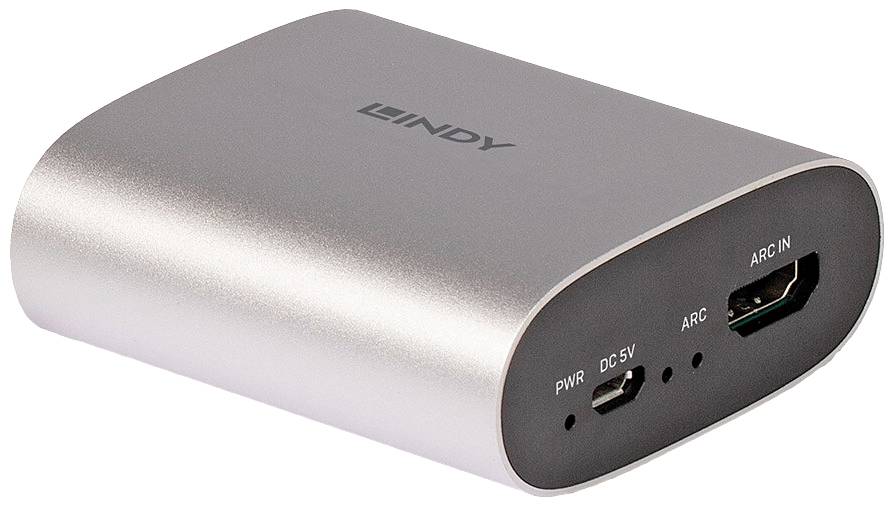

HDMI ARC audio extractor
Highlights & Details
- ARC support: Extracts the audio signal from an ARC (Audio Return Channel) enabled HDTV device into an analogue stereo output for audio receiver/amplifier/headphone
- Supports PCM 2.0, Dolby 5.1, DTS 5.1 audio downmix to 2-channel stereo audio output
- CEC pass-through
Technical specifications
- Product type
Audio/phono Extractor
- Connection type
HDMI
RCA
- No. of A connectors
1 x
- Type A
HDMI®
- No. of B connections
1 x
- Type B
Audio-Line-out
Headphones (3.5 mm jack)
- Factory colour
Silver
- Version
Extractor
- Cable use
Audio/phono
- Weight
81 g
- Length
65 mm
- Width
70 mm
- Height
27 mm
- Dim
(L x W x H) 65 x 70 x 27 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3013260 LINDY Audio/phono Extractor 38363 [RCA - HDMI]
Warranty Terms
Warranty Terms 3013260 LINDY Audio/phono Extractor 38363 [RCA - HDMI]
Description
The LINDY HDMI ARC audio extractor is an effective solution for extracting audio signals from an HDMI source for digital and analogue audio devices, while sending the video signal to a 4K display or projector.
The extractor supports 4096 x 2160@30Hz high-quality resolutions with additional pass-through support for CEC, so that source devices can be controlled via a TV remote control, and HDCP 1.4, WAS Ideal is for use with source devices such as set-top boxes, games consoles and Blu-ray players.
This audio extractor enables output via HDMI and analogue L/R connectors, WAS ensures seamless compatibility with an amplifier, sound bar or 2-channel speaker system. By the support of multichannel audio, including
DTS: HD and Dolby Digital 5.1, this device provides an impressive three-dimensional surround sound which supplements films, games and music when it is connected to an audio device. The 3.5 mm analog connector ensures that even 2 channel speakers can be connected to the extractor - perfect for use with PC monitors that may require separate speakers.
This text is machine translated.
The extractor supports 4096 x 2160@30Hz high-quality resolutions with additional pass-through support for CEC, so that source devices can be controlled via a TV remote control, and HDCP 1.4, WAS Ideal is for use with source devices such as set-top boxes, games consoles and Blu-ray players.
This audio extractor enables output via HDMI and analogue L/R connectors, WAS ensures seamless compatibility with an amplifier, sound bar or 2-channel speaker system. By the support of multichannel audio, including
DTS: HD and Dolby Digital 5.1, this device provides an impressive three-dimensional surround sound which supplements films, games and music when it is connected to an audio device. The 3.5 mm analog connector ensures that even 2 channel speakers can be connected to the extractor - perfect for use with PC monitors that may require separate speakers.
This text is machine translated.
Features
- HDMI video interface
- Interface standard: HDMI 1.4

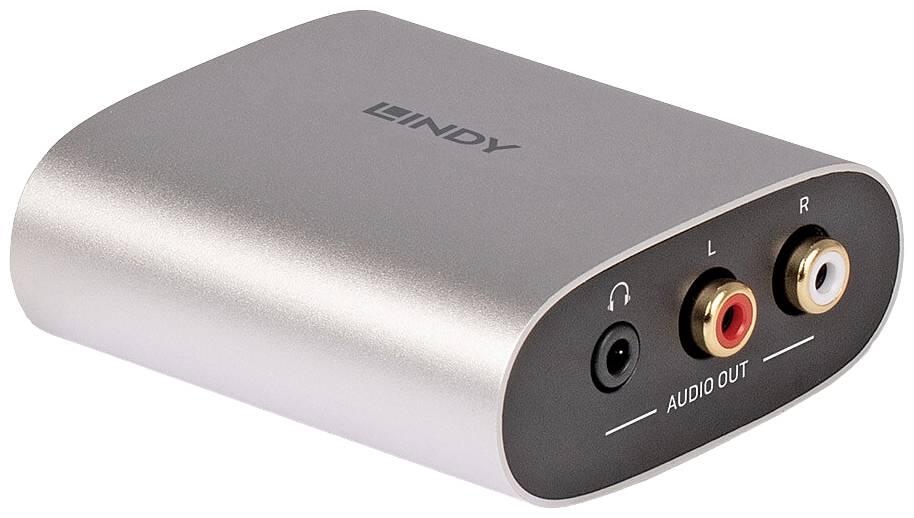

- Audio interface: Analogue audio 3.5 mm & RCA
- SPHE8107S chipset
- Supported audio sampling rate (max.): 192k
- Output impedance 100 Ohm
- Frequency response KHz
- Signal-to-noise ratio 20 Hz to 20 kHz (-0.05 - +0.05dB)
- Inputs 1 x HDMI type A [19-Pin socket] / 1 x Micro USB
- 1 x L/R audio out [RCA] / 1 x 3.5mm L/R
- Power supply / power supply: USB 5V/500mA 0.86W (Max)
- Enclosure dimensions (approx.) WxTxH: 70x65x27mm (2.75x2.55x1.06in)
- Housing material: Plastic
- Net weight of unit/s: 0.081kg (0.17lb)
- OPERATING TEMPERATURE: 0°C - 40°C (32°F - 104°F)
- STORAGE TEMPERATURE: -20°C - 60°C(-4°F - 140°F)
- Humidity: 20-90% RH (non-condensing)
- Power consumption USB 5V/500mA 0.86W (Max)
- Colour: Silver.
Scope of delivery
- 1x HMDI ARC audio extractor
- 1x 1m USB cable (USB-A to Micro USB)
- 1x LINDY manual
