Name: LogiLink PA0282 USB charger 20 W 2x USB-C® Power Delivery White Indoors USB Power Delivery (USB-PD)
Brand: LogiLink
SKU: 2832645
Availability: InStock

White USB charger with two ports and European plug, marked with 'LogiLink', for fast charging of multiple devices.

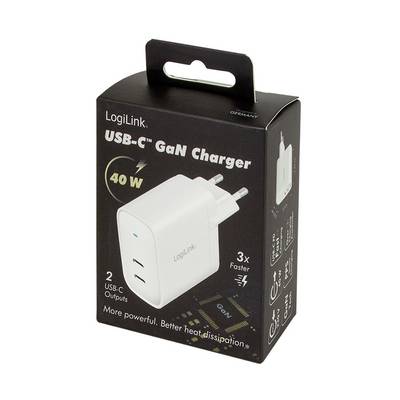

USB-C GaN Charger by LogiLink in black packaging. Printed text: '40 W', '3x faster', '2 USB-C outputs', 'Improved heat dissipation'.

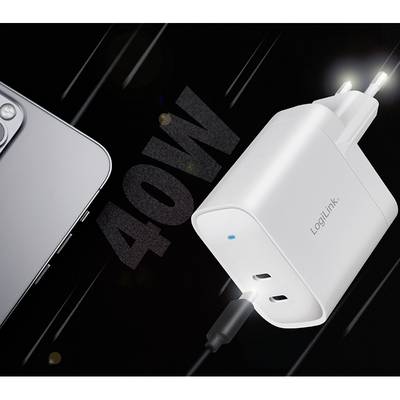

'LogiLink' fast charging adapter with 40W power next to a smartphone being charged.

Credit card and plug socket adapter. The card has contactless payment symbols. The adapter is rectangular and white.

A smartphone and a tablet are being charged simultaneously via a white charger with two USB ports.

A smartphone displays a battery level of 80%, connected to a white USB charger plugged into a power socket.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 24.99 / piece)

€ 24.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LogiLink PA0282 USB charger

Equipped with GaN technology, performance and charging speeds are extremely effective2x USB-C portIt supports PPS (programmable Power supply) charging and adjusts the output power to the charging status of the device in real time to provide it with maximum powerHigher voltage than silicon-based chargers with better heat dissipation

Technical specifications

Product type: USB charger

: 20 W

Inputs: Europlug

No. of outputs: 2 x

Outputs: 2x USB-C®

Type: PA0282

Suitable for: Smartphone
Tablet

Suitable for: Universal

PSU features: USB Power Delivery (USB-PD)

Dim: (L x W x H) 55.00 x 92.5 x 35.86 mm

Height: 35.86 mm

Length: 55.00 mm

Width: 92.5 mm

Weight: 105 g

Factory colour: White

Used at: Indoors

Charging method: Power Delivery

Output: Plug

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2832645 LogiLink PA0282 USB charger 20 W 2x USB-C® Power Delivery White Indoors USB Power Delivery (USB-PD)

User & Safety Instructions

User & Safety Instructions 2832645 LogiLink PA0282 USB charger 20 W 2x USB-C® Power Delivery White Indoors USB Power Delivery (USB-PD)

Description

By the built-in gallium nitride technology (GaN), the performance and loading speed is raised to a whole new level with high efficiency. The special feature is the compact size but at the same time extremely powerful design. The USB socket adapter from LogiLink makes charging your USB-C devices child's play. In addition, the PA0282 supports PPS charging (programmable Power supply) and adapts the output power in real time to the charging status of the device in order to supply it with maximum power.

This text is machine translated.

Features

Equipped with GaN technology, performance and charging speeds are extremely effective2x USB-C portIt supports PPS (programmable Power supply) charging and adjusts the output power to the charging status of the device in real time to provide it with maximum powerHigher voltage than silicon-based chargers with better heat dissipationInput 230 V AC, 50/60 Hz 1 AOUTPUT USB-C1: 5 V/3 A (15 W), 9 V/2.22 A (19.98 W), 12 V/1.67 A (20 W), USB-C2: 5 V/3 A (15 W), 9 V/2.22 A (19.98 W), 12 V/1.67 A (20 W)PPS:3.3–11 V/1.8 AOvercurrent, overvoltage, overheating and short circuit protectionCompatible with most mobile devices such as smartphones, tablets and much more

Description

Features

Equipped with GaN technology, performance and charging speeds are extremely effective2x USB-C portIt supports PPS (programmable Power supply) charging and adjusts the output power to the charging status of the device in real time to provide it with maximum powerHigher voltage than silicon-based chargers with better heat dissipationInput 230 V AC, 50/60 Hz 1 AOUTPUT USB-C1: 5 V/3 A (15 W), 9 V/2.22 A (19.98 W), 12 V/1.67 A (20 W), USB-C2: 5 V/3 A (15 W), 9 V/2.22 A (19.98 W), 12 V/1.67 A (20 W)PPS:3.3–11 V/1.8 AOvercurrent, overvoltage, overheating and short circuit protectionCompatible with most mobile devices such as smartphones, tablets and much more
