m-e modern-electronics VDV-907 S Video door intercom Wi-Fi, Radio Indoor panel Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 242.86 / piece)
€ 242.86
plus VAT.
Highlights & Details

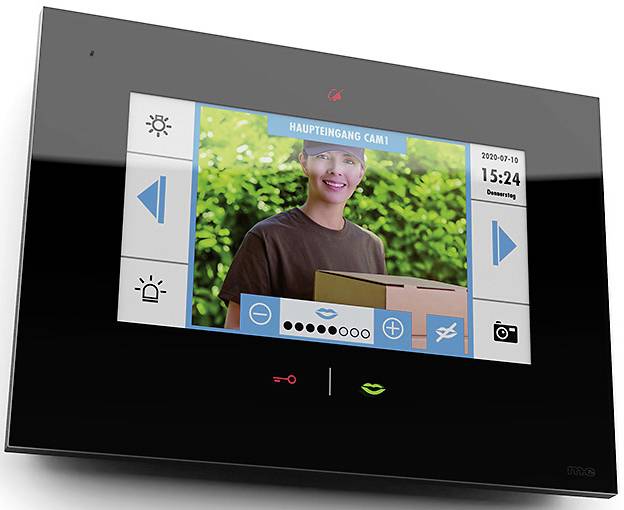

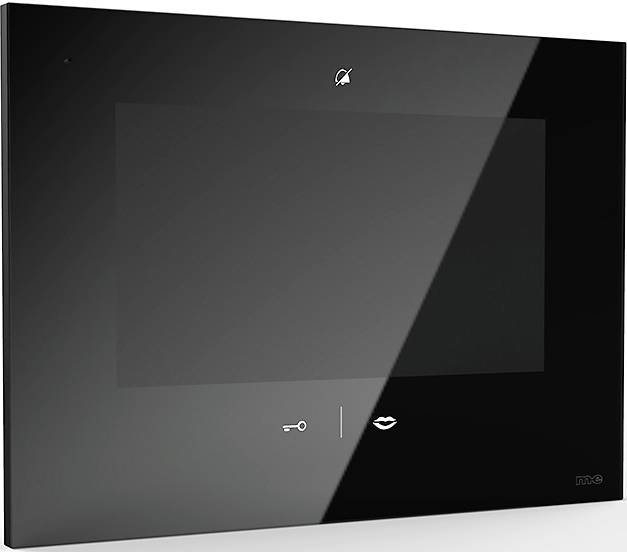

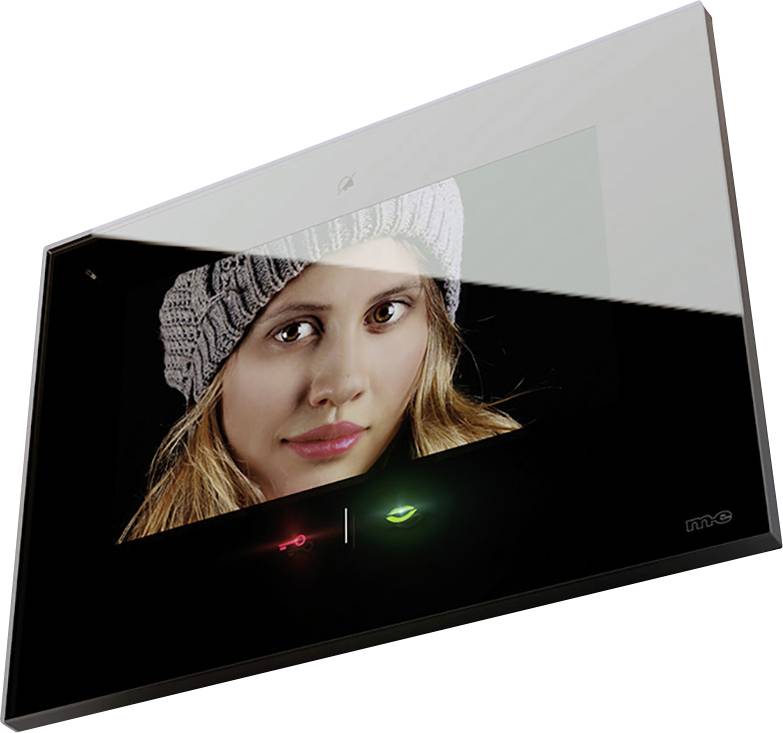

VDV-907 S video indoor unit 17.7 cm (7") for door entry systems, black
- 17.7 cm (7") capacitive touch monitor
- Real glass front panel
- With touch function for all control elements
- This text is machine translated.
Technical specifications
- Product type
Video door intercom
- Component
Indoor panel
- Features
incl. image memory
- Transfer type
Wi-Fi
Radio
- Frequency
2.4 GHz
434 MHz
- Mounting type (interior)
Surface-mount
- Factory colour
Black
- Resolution
1064 x 600 p
- Power supply (LOV)
mains-powered
- Display type
Touch colour display
- Screen size diagonal (cm)
17.7 cm
- Screen size diagonal (inches)
7 inch
- Tunes
16
- Width
220 mm
- Height
160 mm
- Depth
28 mm
Documents & Downloads
Datasheet
Datasheet 2383246 m-e modern-electronics VDV-907 S Video door intercom Wi-Fi, Radio Indoor panel Black
User & Safety Instructions
User & Safety Instructions 2383246 m-e modern-electronics VDV-907 S Video door intercom Wi-Fi, Radio Indoor panel Black
Description
Features
- Integrated radio module for the integration of wireless door bells from m-e.
- With digital image storage for up to 100 photos with date and time
- Connect your smartphone to see, talk to, and even open the door from anywhere
- Optical display for SPEECH and DOOR-OPENING sensor buttons
- 16 ring tones: Improved sound - higher volume (adjustable)
- Alternatively individual ringtones in mp3 format via microSD card possible
- IDLE button switches off the ring tone - bell symbol flashes red as a reminder
- MONITOR button (silent monitoring): Switches camera ON or OFF at the outdoor station
- Intercom function: Speak from indoor unit to indoor unit within a residential unit
- Connection for floor bell button with separate ring tone for distinguishing the house and apartment door.
Scope of delivery
- 1 x video indoor unit 17.7 cm (7") black.
Hints
Compatible with all components from the Vistadoor and Vistus door intercom systems from m-e.
MicroSD card not included.
System requirements
- You need at least one outdoor unit from the Vistadoor Vistus series of m-e. You also need a system power supply with min. 15 V DC / 1A (E.G. DT-2000 or ST-1000) and a min. 4-core cable (max. cable length 100 m).
- Mobile devices for the app: Apple iPhone/iPad from iOS 9, Smartphone/Tablet from Android 4.3, Internet min. 1Mbit up/down, control via VISTASMART2 app for iOS, Android.
