Connectors & CablesConnectorsIndustrial ConnectorsSignal & Power Connectors

M17 connector. 1619226 ST-17S1N8AW500S Silver Phoenix Contact Content: 1 pc(s)

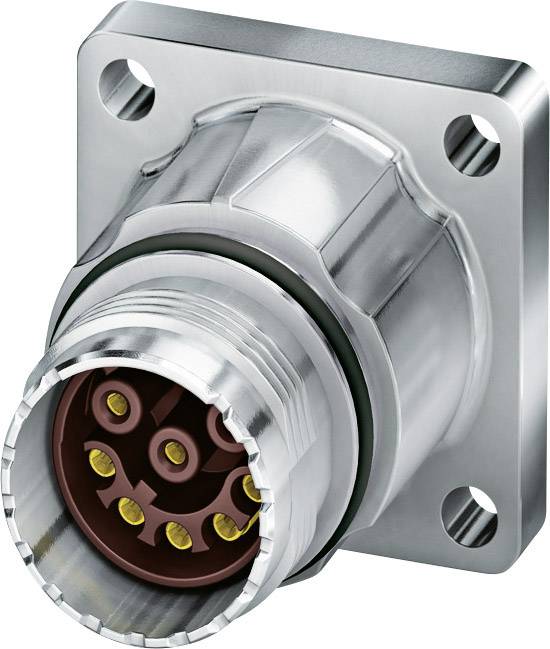

A gleaming metal plug with several gold-coloured contacts, secured in a square housing. Suitable for electrical connection.
Image similar
Packaging type
Piece
Mounting type
Front panel
Connector type
Sleeve socket, straight pins
Connection
Crimp
Rated voltage
60 V/AC/DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

M17 connector.

  • Black logo with the letters 'cRU', which represents a certification for verified security standards.

Technical specifications

  • Flange dimensions: 25.75 x 25.75 mm
Packaging type

Piece

Mounting type

Front panel

Connector type

Sleeve socket, straight pins

Connection

Crimp

Rated voltage

60 V/AC/DC

Test current

Each Power Contact: 3.6 A

Case material

Metal

Total no. of pins

17

Size

M17

Manufacturer part #

1619226

Factory colour

Silver

Content

1 pc(s)

Contact material

Silver

Dimensions

25.75 mm x 25.75 mm mm

Number of pins

17

IP67

Type

ST-17S1N8AW500S

Seal

Speedcon

Leading contact (PE)

No

Type

Contact insert fits

Contamination level

3

Pins

17

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1229892 M17 connector. 1619226 ST-17S1N8AW500S Silver Phoenix Contact Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1229892 M17 connector. 1619226 ST-17S1N8AW500S Silver Phoenix Contact Content: 1 pc(s)

Description

Device connector for front panel mounting.
Compatible with against connectors with SPEEDCON or M17 Standard knurled nut.
With contact carrier, without contacts.
With SPEEDCON-locking.
Shielded
O-Ring axial.

This text is machine translated.

Hints

Special order, no right of withdrawal.
