1/5
Manhattan 181167 USB hub 4 + 3 ports USB C®, USB type A USB 3.2 2nd Gen 10 GBit/s + USB C connector, Aluminium casing Sp
EAN:
Part number:
Item no:
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.

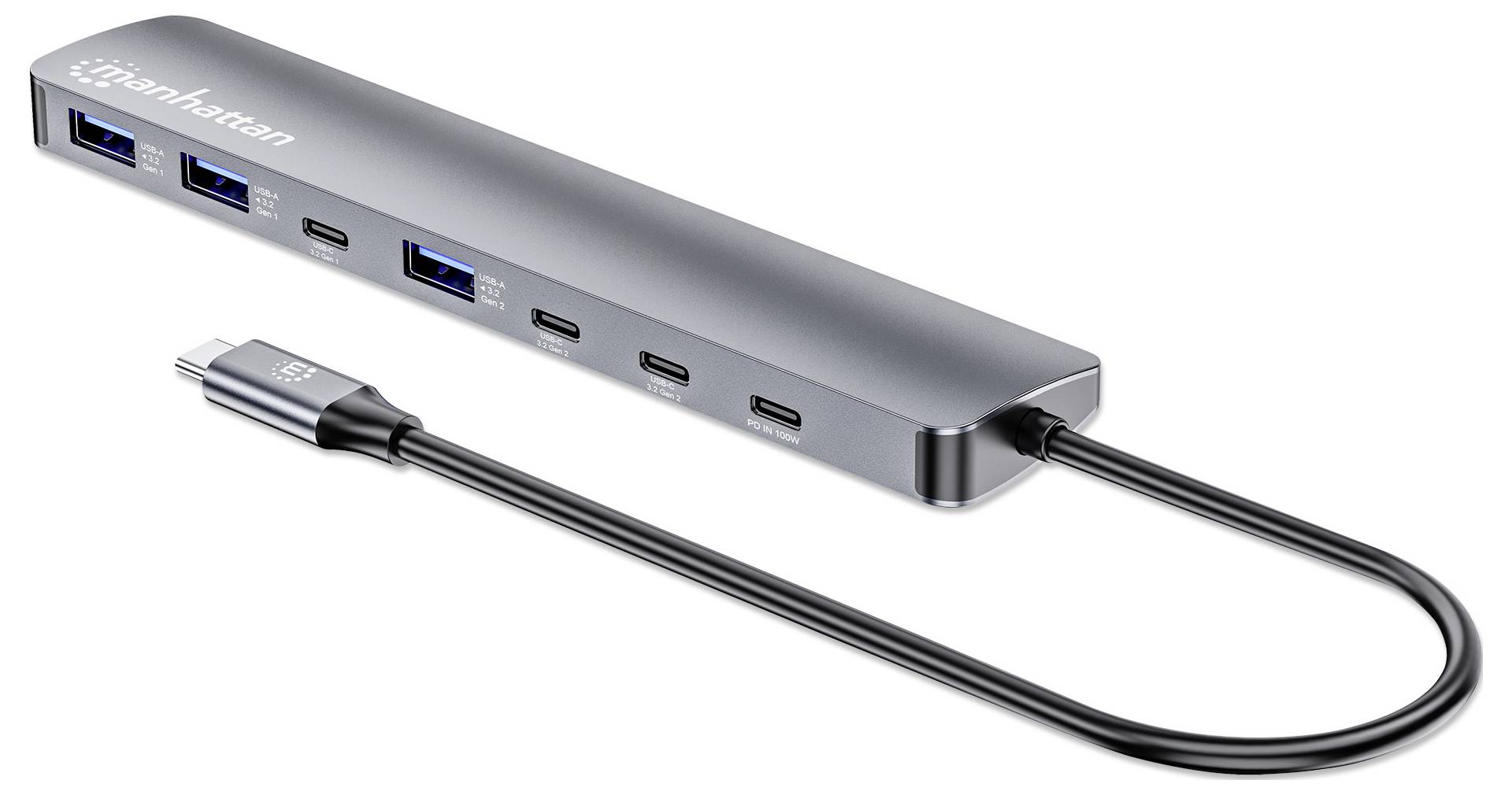

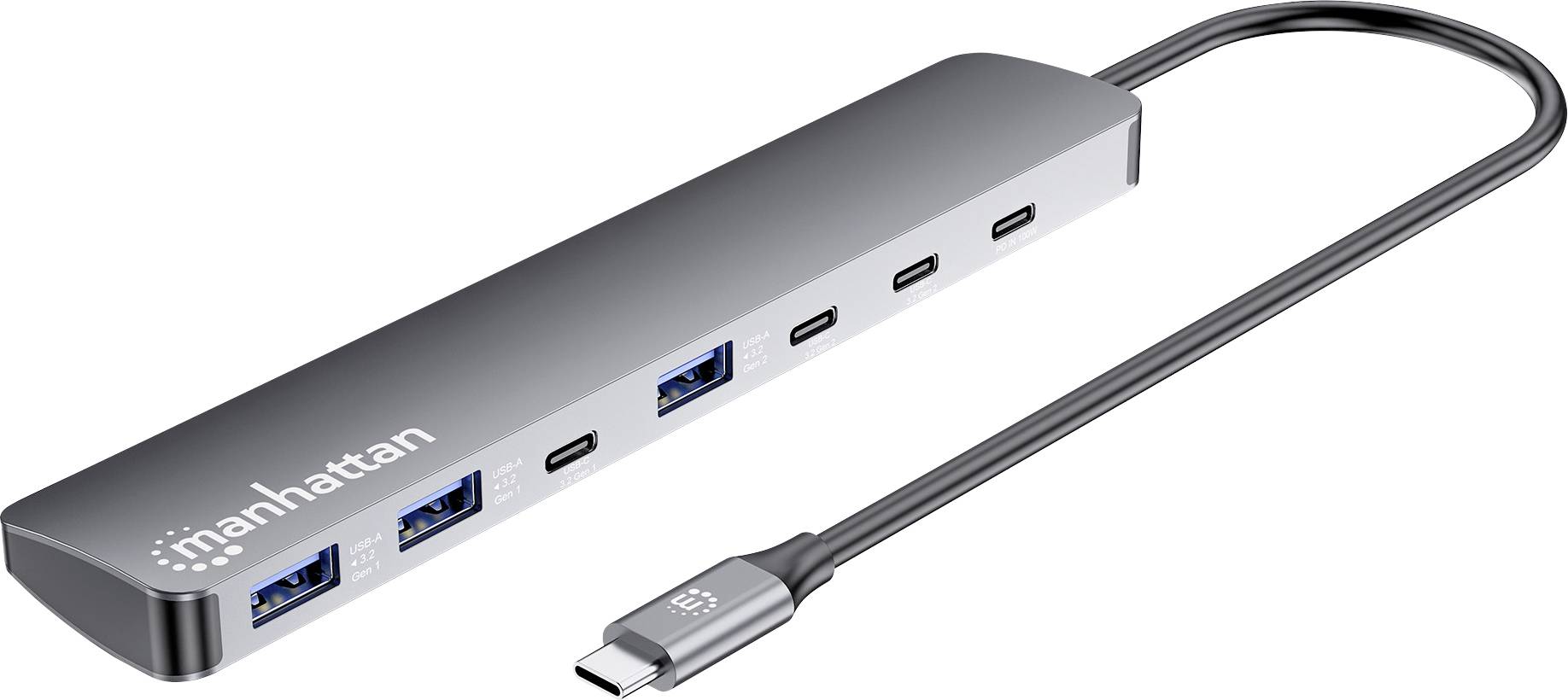

Manhattan 7-Port 10G/5G USB-C / USB-A Hub 4+3 with Power delivery
Highlights & Details
- Charges your laptop with USB-C Power Delivery (PD) port up to 100 W; requires external PD charger - available from Manhattan
- One USB-A and two USB-C ports with transfer rates of up to 10 Gbit/s; one USB-C and two USB-A ports with transfer rates of up to 5 Gbit/s.
- Ideal for desktop PCs, Ultrabooks™, laptops, Chromebooks™, MacBooks®, Surface® devices and more
- No external power supply required, USB-C charging port optional for PD function
- Supports "Hot Swapping" (connection of the device in running operation)
Technical specifications
- Product type
USB hub
- Cable specs
USB 3.2 2nd Gen
- Transfer rate (max.)
10 GBit/s
- Port
4 + 3 ports
- Interfaces (output)
USB C®
USB type A
- No. of outputs
7 x
- Cable length
30 cm
- Power supply (LOV)
via USB
- Distributor/switch features
+ USB C connector
Aluminium casing
- Factory colour
Space Grey
- Width
34 mm
- Height
169 mm
- Depth
13 mm
- Weight
74 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3630432 Manhattan 181167 USB hub 4 + 3 ports USB C®, USB type A USB 3.2 2nd Gen 10 GBit/s + USB C connector, Aluminium casing Sp
Description
7-Port 10G USB-Hub with ultra fast data transfer and 100 W PD-charging function for your laptop
Expand the connection possibilities on your notebook with this Manhattan 7-port USB Type-C / Type-A Hub. It combines super-fast data transfer, versatile ports and powerful charging functions in a slim, mobile design.

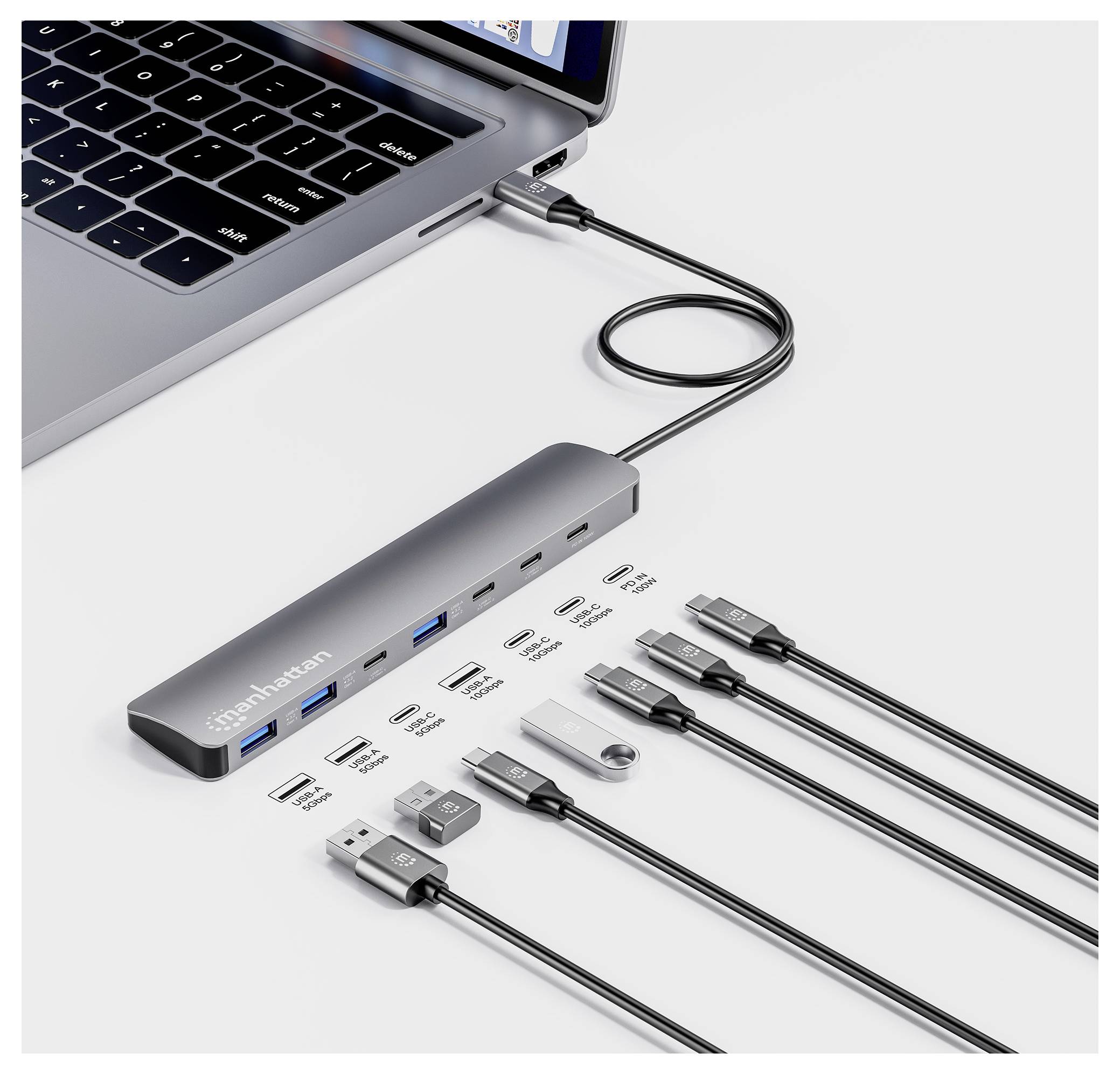

Versatile port extension
Fitted with three USB-C ports and three USB-A ports, this hub offers you the flexibility, which you need for many devices, but which is missing in your slim laptop casing. Connect your external SSDs, card readers and Ethernet adapters via USB-C, while you can continue to connect your important peripherals such as mouse, keyboard and USB sticks via the USB-A ports.

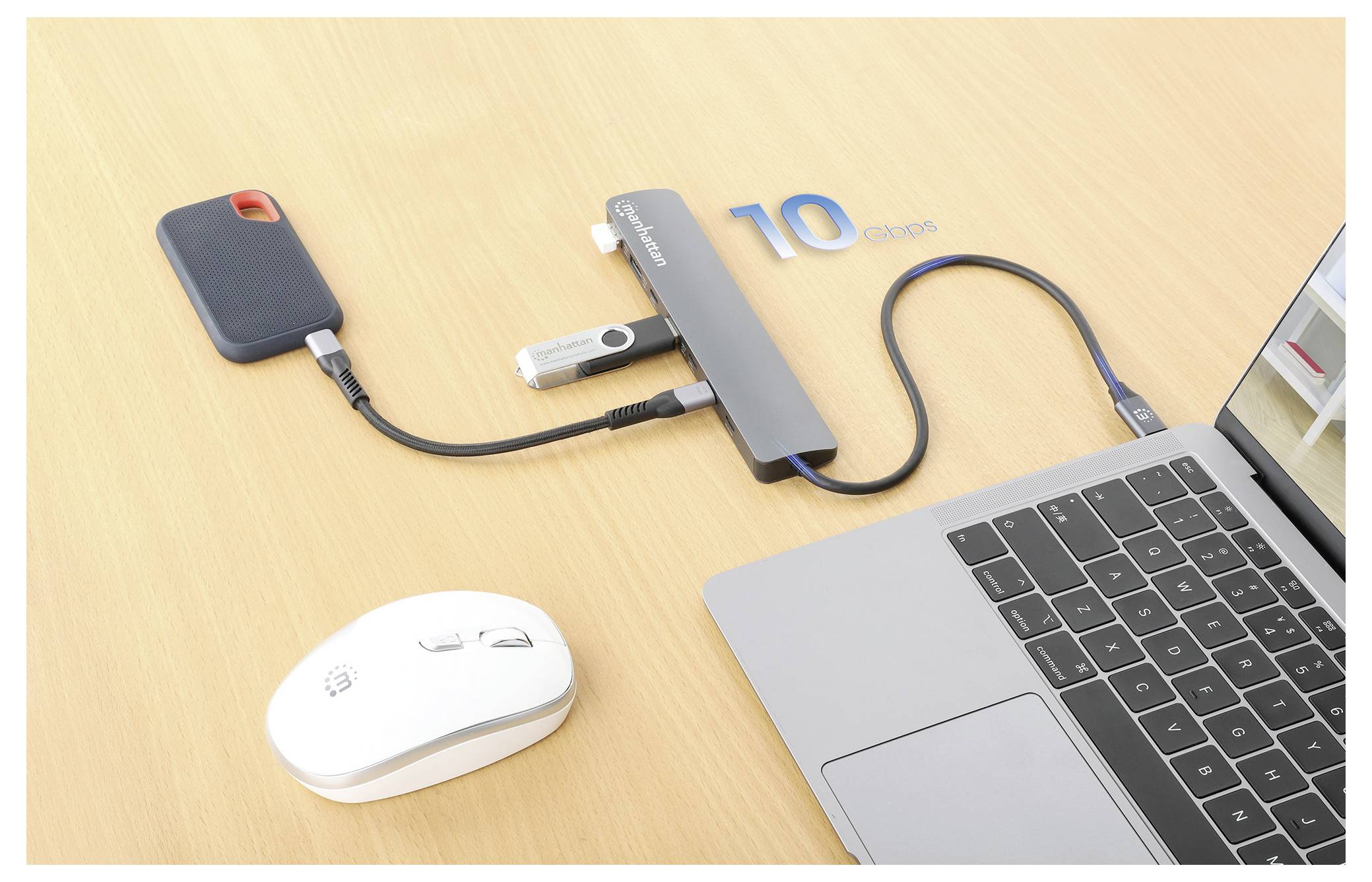

Lightning fast 10G power
A USB-A and two USB-C ports support the USB 3.2 Gen 2 SuperSpeed+ technology and thus offer transfer rates of up to 10 Gbps – Ideal for transferring large files, data backup or connecting demanding peripherals without speed bottlenecks. One USB-C and two USB-A ports support USB 3.2 Gen 1 SuperSpeed (formerly known as USB 3.0), and thus transfer rates of up to 5 Gbps

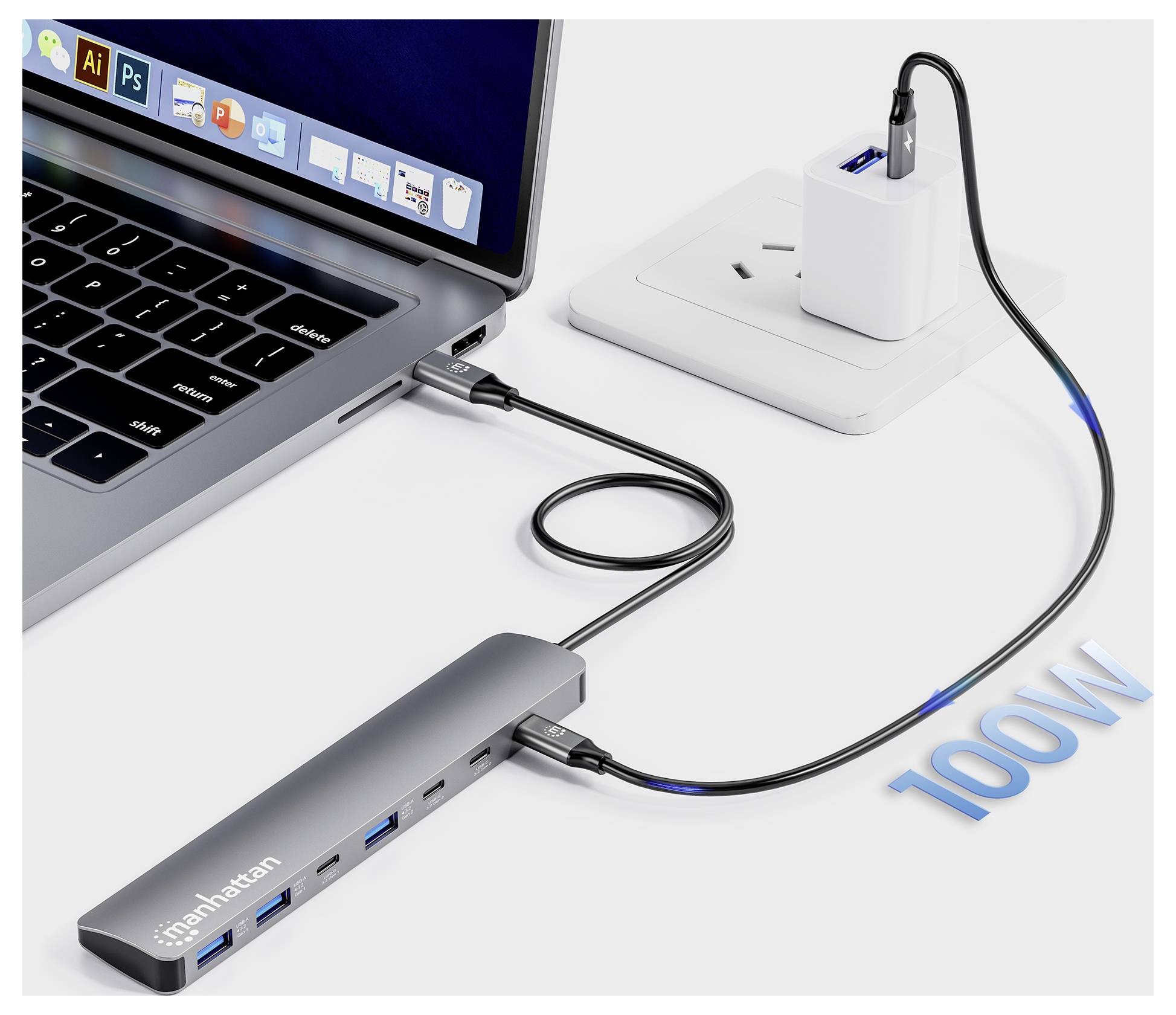

Power supply for your laptop
Stay connected to the power with USB Power Delivery (PD). Simply connect your PD charger (available from Manhattan) to the appropriate port of this hub, in order to deliver up to 100 W directly to the laptop, MacBook® or Surface® device. Their separate power supplies become unnecessary.
Simple Plug-and-Play installation
No configuration is required - this hub offers plug-and-play installation without drivers. It is compatible with Windows®, MacOS®, Linux®, and Chrome OS™, for seamless integration with your existing devices.
Mobile design
The robust 30 cm long cable offers adequate space, the slim aluminum casing is not only robust, but also attractive on the table. The compact design fits easily in the outer pocket of every notebook bag. Thus the hub is perfect for journeys or hybrid work environments.
This text is machine translated.
Expand the connection possibilities on your notebook with this Manhattan 7-port USB Type-C / Type-A Hub. It combines super-fast data transfer, versatile ports and powerful charging functions in a slim, mobile design.
Versatile port extension
Fitted with three USB-C ports and three USB-A ports, this hub offers you the flexibility, which you need for many devices, but which is missing in your slim laptop casing. Connect your external SSDs, card readers and Ethernet adapters via USB-C, while you can continue to connect your important peripherals such as mouse, keyboard and USB sticks via the USB-A ports.
Lightning fast 10G power
A USB-A and two USB-C ports support the USB 3.2 Gen 2 SuperSpeed+ technology and thus offer transfer rates of up to 10 Gbps – Ideal for transferring large files, data backup or connecting demanding peripherals without speed bottlenecks. One USB-C and two USB-A ports support USB 3.2 Gen 1 SuperSpeed (formerly known as USB 3.0), and thus transfer rates of up to 5 Gbps
Power supply for your laptop
Stay connected to the power with USB Power Delivery (PD). Simply connect your PD charger (available from Manhattan) to the appropriate port of this hub, in order to deliver up to 100 W directly to the laptop, MacBook® or Surface® device. Their separate power supplies become unnecessary.
Simple Plug-and-Play installation
No configuration is required - this hub offers plug-and-play installation without drivers. It is compatible with Windows®, MacOS®, Linux®, and Chrome OS™, for seamless integration with your existing devices.
Mobile design
The robust 30 cm long cable offers adequate space, the slim aluminum casing is not only robust, but also attractive on the table. The compact design fits easily in the outer pocket of every notebook bag. Thus the hub is perfect for journeys or hybrid work environments.
This text is machine translated.
Features
- Standards and certificates:
- USB 3.2 1st Gen 2
- PD 3.0
- CE
- FCC
- RoHS
- REACH
- UKCA
- General:
- Data transfer rates: Up to 10 Gbit/s.
- Power output (without PD): 4.5 W (5.0 V at 0.9 A) max.
- Electric strength: 300.0 V/DC
- Insulation resistance 10 MΩ
- Line resistance 5 Ω
- USB-C PD port: 100.0 W (20.0 V at 5.0 A) max.
- - Voltage/current settings (max.):
- - 5.0 V/3.0 A
- - 9.0 V/3.0 A
- - 12.0 V/3.0 A
- - 15.0 V/3.0 A
- - 19.0 V/5.0 A
- - 20.0 V/5.0 A
- Connectivity
- 1 x 24-pin USB-C connector
- 3 x 24-pin USB-C socket (2 x 10 Gbit/s, 1 x 5 Gbit/s)
- 1 x 16-pin USB-C socket (Power delivery)
- 3 x 9-pin USB A socket (1 x 10 Gbit/s, 2 x 5 Gbit/s)
- Ambient conditions
- Operating ambient temperature 0 - 50°C.
- Ambient temperature during storage -20 - 60°C.
- Humidity (non-condensing):0 - 85%
System requirements
- Windows XP/Vista/7/8.1/10/11
Linux
Chrome OS
MacOS
