Buy MEAN WELL NGE12I12-P1J Mains PSU (fixed voltage) 12 V DC 12 W

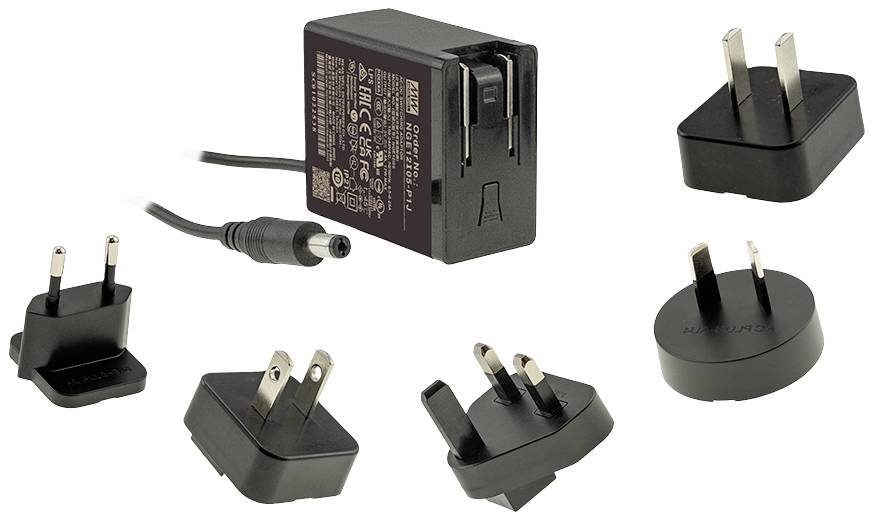

A power supply with various interchangeable plug adapters, suitable for international socket standards.

Image similar

Datasheet (PDF)

Fast track dispatch on Thu, 17 Sep

40 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.08 / piece)

€ 10.08

plus VAT.

Report legal concerns

Highlights & Details

Mean Well NGE12 plug SNT

Output voltage 12 V DC
Power 12 W
Min. Input voltage80 V AC, 113 V DC /max.264 V AC, 370 V DC;5.5/2.1 coaxial connector

Technical specifications

Series NGE12
Application: ITE,Industry,Household,Medical
Housing: Plug-in power supply
Dimensions: Length 48 mm
Dimensions: Width 28 mm
Dimensions: Height 55 mm
Weight: 112 g
Identification: DEKRA; FCC
MTBF 1272800 h
Operation maintenance 30,000 h
Min. Operating temperature -30 °C
Max. operating temperature: 70 °C
Storage temperature, min.: -20 °C.
Storage temperature, max. 85 °C
Min. Network frequency: 47 Hz
Network frequency max. 63 Hz
Min. Input voltage AC 80 V
Max. Input voltage AC 264 V
Min. Input voltage DC 113 V.
Max. Input voltage DC 370 V.
Input current 0.25 A
Efficiency level 87.5 %
Idle power, less than 0.075 W
Leakage current, max. 0.1 mA
Inrush current, max. 80 A
Power factor correction (PFC): 0
Connector type, input: Adapter
Number of outputs 1
Power output: 12 W
Output voltage tolerance -3 - 3 %
Remaining ripple 120 MVP-p
Output current: 1 A
Overload protection 1
Overload protection version: Hiccup
Short circuit protection 1
Overvoltage protection 1
Overtemperature protection 0
Connection type, output: 5.5*2.1mm hollow plug
Protection class: II
INSULATION VOLTAGE I/P-O/P 4,000 V
APPROVALS UL, PSE, CCC,AS/NZ,EAC,IEC,CE,UKCA,CSA,BSMI,RCM
Standards (EMC): EN 55032 class B, EN 55011 class B
STANDARDS (SECURITY): UL 60335-1-1, ANSI/AAMI ES 60601-1, IEC 62368-1, IEC 60601-1, IEC 60601-62368, IEC 60335-1-16, IEC 61558-2, EN 1-1, EN 61558-1, EN 61558-1, EN 61558-2-16, EN 62368
Medical protection classification: 2*MOPP
REACH-SVHC: No.
Efficiency (at 10% load): 73.5 %
Average efficiency: 86%
Output voltage selectable 0
Length of feed line, output 150 cm
Protection class/IP IP21
Energy level (EU) 2019/1782 + Level VI
RoHS R - RoHS compliant
