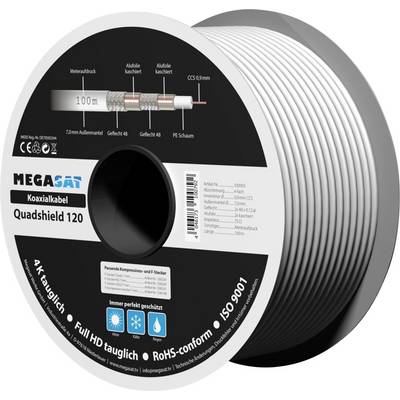

Coaxial cable spool labeled 'MEGASAT Quadshield 120'. Highlights features: 4K ready, HD compatible, RoHS conform, ISO 9001 certified.

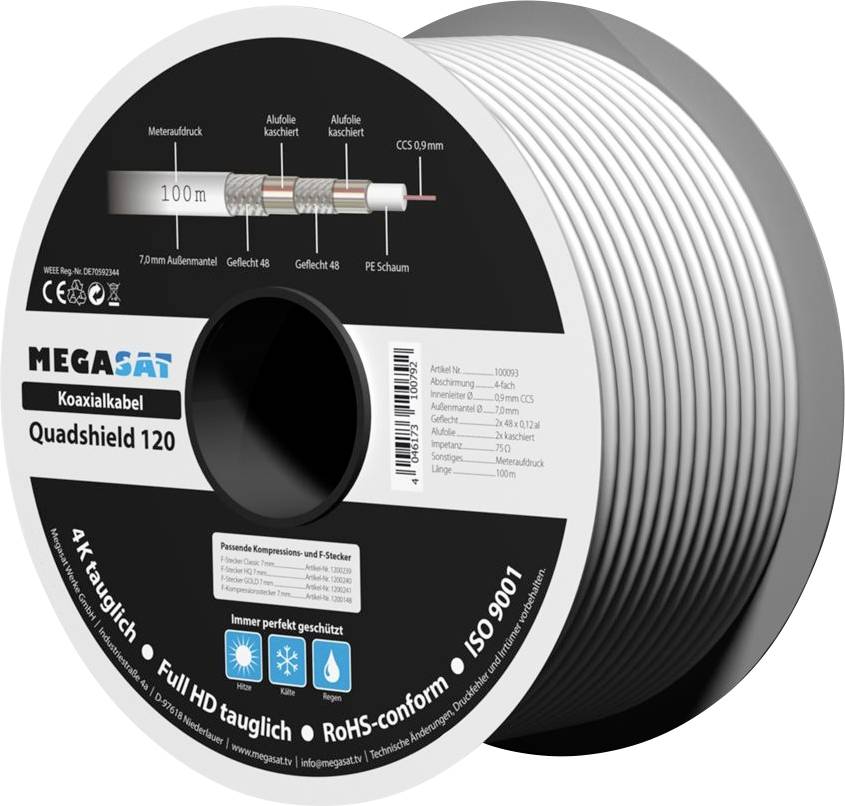

Coaxial cable spool labeled 'MEGASAT Quadshield 120'. Highlights features: 4K ready, HD compatible, RoHS conform, ISO 9001 certified.

MegaSat

Product type

Coax

Outside Ø

7.0 mm

Content

100 m

Core Ø

0,9 mm

Factory colour

White

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 0.37)

€ 36.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MegaSat quad shield 120 – 110 dB shielding with 4-fold shielding, 100 m on one coil

Coaxial cable for satellite and cable
100 m spool
Shielding 110 dB
Shielding 4 way
Outer sheath: Ø 7.0 mm
Outer conductor: Ø 5.5 mm
Insulation Ø 4.3 mm
Inner conductor: Ø 0.9 mm CCS
Braid 2 × 48 × 0.12 al
Aluminium foil 2 × laminated
Impedance: 75 Ω
Meter label on cable

Technical specifications

Impedance: 75 Ohm

Product type: Coax

Core Ø: 0,9 mm

Factory colour: White

Outside Ø: 7.0 mm

Width: 275 mm

Height: 110 mm

Content: 100 m

Manufacturer part #: 100093

RoHS-compliant: Yes

Type: 100093

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3556350 MegaSat 100093 Coax Outside diameter: 7.0 mm White 100 m

Description

MegaSat coaxial cable Quadshield 120: 110 dB shielding with 4-fold shielding. 100 m on a coil.

Coaxial cable with best conductivity:
The MegaSat coaxial cable stands for high requirements and combines very good electrical properties with an extremely high shielding. The coaxial cables undergo permanent controls by international standards such as quality, safety, the use of environmentally friendly materials to meet the customer's expectations. This all guarantees top quality and a high durability.

The coaxial cable meets the legal minimum requirements of protection class ECA and is free of hazardous substances.

The meter units are printed on the outer sheath. This makes it possible to easily and clearly separate the parts from the meter.

This text is machine translated.

Features

Technical data
Suitable for Sat/BK
Shielding 110 dB
Shielding 4 way
Outer sheath: Ø 7.0 mm
Outer conductor: Ø 5.5 mm
Insulation Ø 4.3 mm
Inner conductor: Ø 0.9 mm CCS
Braid 2 × 48 × 0.12 al
Aluminium foil: 2 × laminated impedance: 75 Ω
Meter label on cable
Fire protection class ECA (DOP:1-E-034-00003).
Hazardous substances: None
Measuring data:
Damping at 20° C at 100 m at 800 MHz: 20 dB
Damping at 20° C at 100 m at 2150 MHz: 35 dB
Return loss at 800 MHz: More than 23 dB
Return loss at 2150 MHz: More than 20 dB
Other:
4K compatible
Full HD compatible
RoHS compliant
ISO 9001

Scope of delivery

MegaSat coaxial cable 110 dB quad shield 120 – 100 m coil
