Buy MegaSat 100148 Coax Outside diameter: 7 mm White 50 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

MegaSat

Product type

Coax

Cable features

4K UHD

Shielded

Flame-retardant

fourfold shielding

Graduated (metric)

Outside Ø

7 mm

Content

50 m

Core Ø

0.9 mm

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 0.44)

€ 21.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MegaSat 100148 coaxial cable 50 m F white

50 m white
F
F
75 Ohm
Conductor material: Copper

Technical specifications

Connection 1: F
Connection 2: F
Impedance: 75 Ohm

Product type: Coax

Cable features: 4K UHD
Shielded
Flame-retardant
fourfold shielding
Graduated (metric)

Core Ø: 0.9 mm

Factory colour: White

Outside Ø: 7 mm

Width: 260 mm

Height: 72 mm

Content: 50 m

Packaged: Yes

Sold per metre: Yes

Manufacturer part #: 100148

RoHS-compliant: Yes

Type: 100148

Max. length sold by the metre: 50 m

Cable length: 50 m

Depth: 260 mm

: Copper

Weight: 1.85 kg

Conductor size: 0.9 mm

Insulation outer diameter: 7 mm

Insulation thickness: 4.3 mm

Package weight: 2.02 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3556349 MegaSat 100148 Coax Outside diameter: 7 mm White 50 m

Description

The MegaSat coaxial cable stands for high requirements and combines very good electrical properties with an extremely high shielding. The coaxial cables undergo permanent controls by international standards such as quality, safety, the use of environmentally friendly materials to meet the expectations of the customer. All this guarantees top quality and a high durability.

The meter units are printed on the outer sheath. This makes it possible to easily and clearly separate the parts from the meter.

This text is machine translated.

Features

Technical data
Suitable for Sat/BK
Shielding 110 dB
Shielding 4 way
Outer sheath: Ø 7.0 mm
Outer conductor: Ø 5.5 mm
Insulation Ø 4.3 mm
Inner conductor: Ø 0.9 mm CCS
Braid 2 × 48 × 0.12 al
Aluminium foil 2 × laminated
Impedance: 75 Ω
Meter label on cable
Fire protection class ECA (DOP:1-E-034-00003).
Hazardous substances: None
Measuring data:
Damping at 20° C at 100 m at 800 MHz: 20 dB
Damping at 20° C at 100 m at 2150 MHz: 35 dB
Return loss at 800 MHz: More than 23 dB
Return loss at 2150 MHz: More than 20 dB
Other:
4K compatible
Full HD compatible
RoHS
ISO 9001

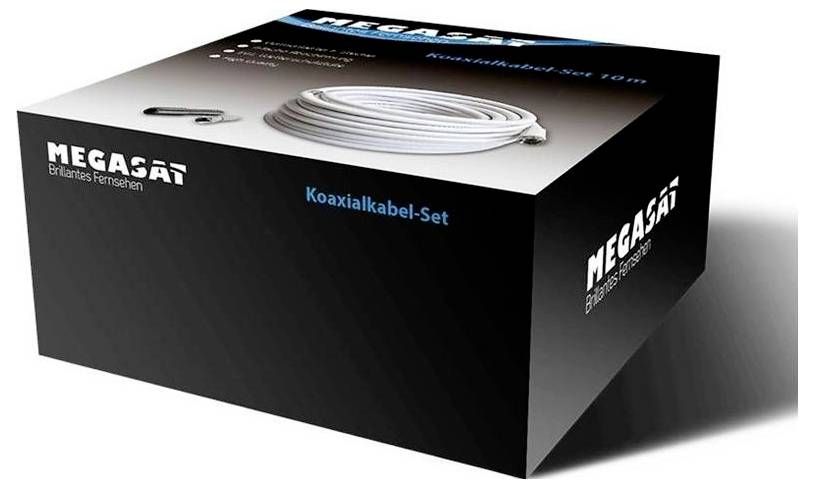

Scope of delivery

MegaSat coaxial cable set Quad Shield 120 – 50 m.
2 F plugs
1 × rubber sleeves

Related products can be found here

HF Connectors Harmonised & Certified Cables DVB-S Receivers HF Adapters Sat & Antenna Cables Button Cells SAT 5-Way Multiswitches Antenna Sockets SAT Accessories SAT Dishes SAT Systems SAT Antenna Connectors & Adapters Universal Enclosures Side Cutters AV Connectors Heat Shrink Tubes LNBs

Description

The MegaSat coaxial cable stands for high requirements and combines very good electrical properties with an extremely high shielding. The coaxial cables undergo permanent controls by international standards such as quality, safety, the use of environmentally friendly materials to meet the expectations of the customer. All this guarantees top quality and a high durability.

The meter units are printed on the outer sheath. This makes it possible to easily and clearly separate the parts from the meter.

This text is machine translated.

Features

Technical data
Suitable for Sat/BK
Shielding 110 dB
Shielding 4 way
Outer sheath: Ø 7.0 mm
Outer conductor: Ø 5.5 mm
Insulation Ø 4.3 mm
Inner conductor: Ø 0.9 mm CCS
Braid 2 × 48 × 0.12 al
Aluminium foil 2 × laminated
Impedance: 75 Ω
Meter label on cable
Fire protection class ECA (DOP:1-E-034-00003).
Hazardous substances: None
Measuring data:
Damping at 20° C at 100 m at 800 MHz: 20 dB
Damping at 20° C at 100 m at 2150 MHz: 35 dB
Return loss at 800 MHz: More than 23 dB
Return loss at 2150 MHz: More than 20 dB
Other:
4K compatible
Full HD compatible
RoHS
ISO 9001

Scope of delivery

MegaSat coaxial cable set Quad Shield 120 – 50 m.
2 F plugs
1 × rubber sleeves
