Buy MegaSat 100176 Coax Outside diameter: 7.0 mm 135 dB 100 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

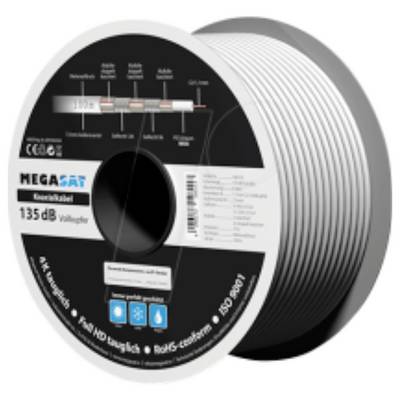

A spool labeled 'Megasat Koaxialkabel 135 dB' shows coaxial cable with high shielding, suitable for 4K and Full HD.

A spool labeled 'Megasat Koaxialkabel 135 dB' shows coaxial cable with high shielding, suitable for 4K and Full HD.

MegaSat

Product type

Coax

Shield rating greater than

135 dB

Cable features

fivefold shielding

Outside Ø

7.0 mm

Content

100 m

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 0.60)

€ 59.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MegaSat 135 dB full copper – 5-fold shielding, inner conductor made of full copper, 100 m on one coil

Coaxial cable for satellite and cable
100 m spool
Shielding 135 dB
Shielding 5 way
Outer sheath: Ø 7.0 mm
Outer conductor: Ø 5.3 mm
Insulation Ø 4.0 mm
Inner conductor: Ø 0.9 mm Cu
Braid 2 × 48 × 0.12 al
Aluminium foil 3 × laminated
Impedance: 75 Ω
Meter label on cable

Technical specifications

Product type: Coax

Shield rating greater than: 135 dB

Cable features: fivefold shielding

Core Ø: 0,9 mm

Outside Ø: 7.0 mm

Content: 100 m

Sold per metre: Yes

Halogen-free: Yes

Manufacturer part #: 100176

RoHS-compliant: Yes

Type: 100176

Max. length sold by the metre: 100 m

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3556352 MegaSat 100176 Coax Outside diameter: 7.0 mm 135 dB 100 m

Description

MegaSat coaxial cable 135 dB full copper: 135 dB shield with 5-fold shielding. Inner conductor made of full copper. 100 m on a coil.

Coaxial cable with best conductivity:
The MegaSat coaxial cable stands for high requirements and combines very good electrical properties with an extremely high shielding. The coaxial cables undergo permanent controls by international standards such as quality, safety, the use of environmentally friendly materials to meet the customer's expectations. This all guarantees top quality and a high durability.

The coaxial cable meets the legal minimum requirements of protection class ECA and is free of hazardous substances.

The meter units are printed on the outer sheath. This makes it possible to easily and clearly separate the parts from the meter.

The inner conductor is made from 100% full copper and thus offers the best possible conductivity.

This text is machine translated.

Features

Technical data
Suitable for Sat/BK
Shielding 135 dB
Shielding 5 way
Outer sheath: Ø 7.0 mm
Outer conductor: Ø 5.3 mm
Insulation Ø 4.0 mm
Inner conductor: Ø 0.9 mm Cu
Braid 2 × 48 × 0.12 al
Aluminium foil 3 × laminated
Impedance: 75 Ω
Meter label on cable
Fire protection class ECA (DOP:1-E-034-00009).
Hazardous substances: None
Length: 100 meters
Measuring data:
Damping at 20° C at 100 m at 800 MHz: 20 dB
Damping at 20° C at 100 m at 2150 MHz: 34 dB
Return loss at 800 MHz: More than 26 dB
Return loss at 2150 MHz: More than 20 dB
Other:
4K compatible
Full HD compatible
RoHS compliant
ISO 9001

Scope of delivery

MegaSat 135 dB full copper – 100 m coil

Related products can be found here

HF Connectors Harmonised & Certified Cables DVB-S Receivers HF Adapters Sat & Antenna Cables Button Cells SAT 5-Way Multiswitches Antenna Sockets SAT Accessories SAT Dishes SAT Systems SAT Antenna Connectors & Adapters Universal Enclosures Side Cutters AV Connectors Heat Shrink Tubes LNBs

Description

MegaSat coaxial cable 135 dB full copper: 135 dB shield with 5-fold shielding. Inner conductor made of full copper. 100 m on a coil.

Coaxial cable with best conductivity:
The MegaSat coaxial cable stands for high requirements and combines very good electrical properties with an extremely high shielding. The coaxial cables undergo permanent controls by international standards such as quality, safety, the use of environmentally friendly materials to meet the customer's expectations. This all guarantees top quality and a high durability.

The coaxial cable meets the legal minimum requirements of protection class ECA and is free of hazardous substances.

The meter units are printed on the outer sheath. This makes it possible to easily and clearly separate the parts from the meter.

The inner conductor is made from 100% full copper and thus offers the best possible conductivity.

This text is machine translated.

Features

Technical data
Suitable for Sat/BK
Shielding 135 dB
Shielding 5 way
Outer sheath: Ø 7.0 mm
Outer conductor: Ø 5.3 mm
Insulation Ø 4.0 mm
Inner conductor: Ø 0.9 mm Cu
Braid 2 × 48 × 0.12 al
Aluminium foil 3 × laminated
Impedance: 75 Ω
Meter label on cable
Fire protection class ECA (DOP:1-E-034-00009).
Hazardous substances: None
Length: 100 meters
Measuring data:
Damping at 20° C at 100 m at 800 MHz: 20 dB
Damping at 20° C at 100 m at 2150 MHz: 34 dB
Return loss at 800 MHz: More than 26 dB
Return loss at 2150 MHz: More than 20 dB
Other:
4K compatible
Full HD compatible
RoHS compliant
ISO 9001

Scope of delivery

MegaSat 135 dB full copper – 100 m coil
