MegaSat 100189 Coax Outside diameter: 7.0 mm White 100 m-0

MegaSat 100189 Coax Outside diameter: 7.0 mm White 100 m-0

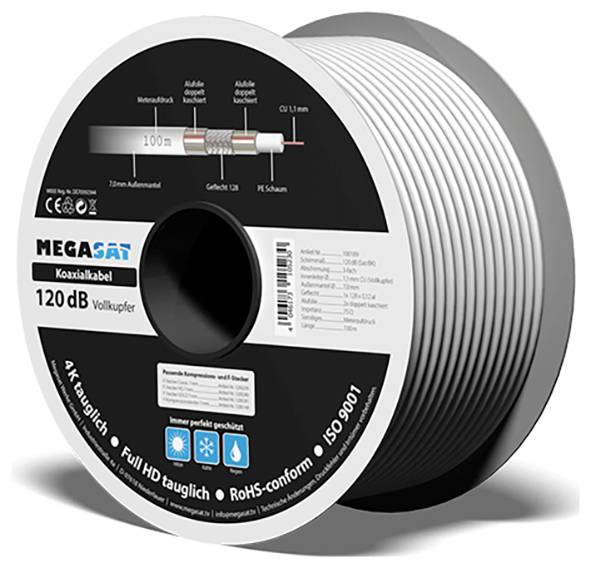

'MEGASAT Koaxialkabel 120 dB Vollkupfer' spool with specifications for use in 4K, Full HD, RoHS compliant, ISO 9001 certified.

1/2

MegaSat

Product type

Coax

Outside Ø

7.0 mm

Content

100 m

Core Ø

1,1 mm

Factory colour

White

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 0.60)

€ 59.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MegaSat 100189 coaxial cable 100 m white

100 m white
75 Ohm
Conductor material: Copper

Technical specifications

Impedance: 75 Ohm

Product type: Coax

Core Ø: 1,1 mm

Factory colour: White

Outside Ø: 7.0 mm

Width: 275 mm

Height: 110 mm

Content: 100 m

Manufacturer part #: 100189

RoHS-compliant: Yes

Type: 100189

Cable length: 100 m

Depth: 275 mm

: Copper

Weight: 4 kg

Conductor size: 1.1 mm

Insulation outer diameter: 7 mm

Insulation thickness: 4.8 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3556321 MegaSat 100189 Coax Outside diameter: 7.0 mm White 100 m

Description

The MegaSat coaxial cable stands for high requirements and combines very good electrical properties with an extremely high shielding. The coaxial cables undergo permanent controls by international standards such as quality, safety, the use of environmentally friendly materials to meet the expectations of the customer. All this guarantees top quality and a high durability.

The inner conductor is made from 100% full copper and thus offers the best possible conductivity.

The meter units are printed on the outer sheath. This makes it possible to easily and clearly separate the parts from the meter.

- Shield rating: 120 dB
- Shielding: 3-fold
- External diameter: 7.0 mm
- Outer conductor diameter: 5.5 mm
- Insulation diameter: 4.8 mm
- Inner conductor diameter: 1.1 mm CU
- Aluminium foil: 2x double coated
- Braid: 1x 128 x 0.12 al
Impedance: 75 Ω
- TÜV approved
- ISO 9001
- RoHS compliant
- Meter printed on the cable
- Cable length: 100 m.

This text is machine translated.

Features

Technical data
Suitable for Sat/BK
Shielding 120 dB
Shielding 3 way
Outer sheath: Ø 7.0 mm
Outer conductor: Ø 5.5 mm
Insulation Ø 4.8 mm
Inner conductor: Ø 1.1 mm Cu
Braid 1 × 128 × 0.12 al
2 × double layer aluminum film
Impedance: 75 Ω
Meter label on cable
Fire protection class ECA (DOP:1-E-034-00007).
Hazardous substances: None
Measuring data:
Damping at 20° C at 100 m at 800 MHz: 17 dB
Damping at 20° C at 100 m at 2150 MHz: 29 dB
Return loss at 800 MHz: More than 26 dB
Return loss at 2150 MHz: More than 23 dB
Other:
4K compatible
Full HD compatible
RoHS compliant
ISO 9001

Scope of delivery

MegaSat 120 dB full copper Trishield – 100 m coil
