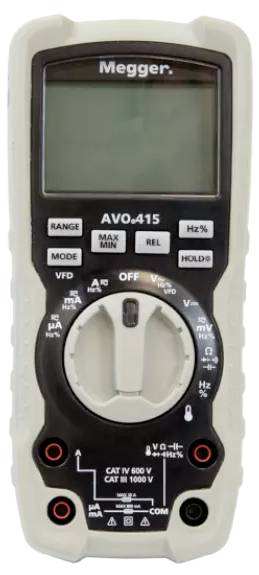

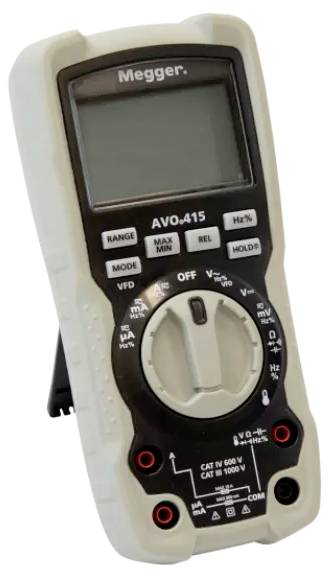

Name: Megger AVO415 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Brand: Megger
SKU: 3844949
Availability: InStock

Technical specifications

Voltage reading range DC (min.): 0.01 mV

Product type: Handheld multimeter

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 0.01 mV

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 0.1 µA

A DC reading range (max.): 10.00 A

A AC reading range (min.): 0.1 µA

Amperage reading range AC (max.): 10.00 A

Temperature: -40 - +1000 °C

Basic accuracy: 0.5 %

Measurement type (details): True RMS

Frequency range: 45 Hz up to 1 kHz

Interfaces: none

Power supply (details): 1x 9 V alkaline battery

Height: 180 mm

Width: 82 mm

Length: 55 mm

Weight: 397 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: AVO415

Display: Digital

Display (counts): 6000

Dim: (L x W x H) 55 x 82 x 180 mm

Temperature reading range (max.): 1000 °C

Temperature reading range (min.): -40 °C

: IP67

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3844949 Megger AVO415 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000

Description

More than 100 years ago the AVOmeter laid the foundation for a modern multimeter. For the first time it combined several measurement functions in one device. To date, the AVO® brand from Megger stands for precise and reliable measurement technology. To celebrate this anniversary, you'll receive the AVO415 Multimeter for just EUR100*. The true RMS multimeter provides security to CAT IV 600 V / CAT III 1000 V, a VFD mode for measurements on frequency converters and IP67 protection. Designed to make your everyday work easier - day after day.
The promotion "100YEAR REAVO415" is valid until 31.12.2026.

This text is machine translated.

Scope of delivery

Test leads, 1 m, 4 mm, not secured, right angled* (2 pieces)
Probes, 4 mm, with exposed metal* (2 pieces)
Exposed probes for CAT II measurements (2 pc)
Red and black alligator clips*
Type K multimeter adapter
K-type thermocouple
Padded case
Cap 4 mm (2 pcs.)
User manual
1 X 9 V, NEDA 1604S/IEC 6F2
