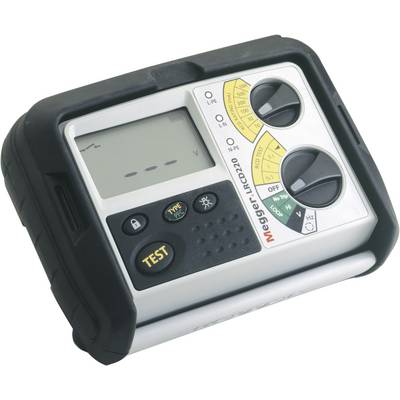

Megger LRCD220-DE-SC Combinated Loop- and FI/RCD-Tester DIN VDE 0413-6, EN6 1557-6 "
EAN:
Part number:
Item no:
Number
Total (€ 1,231.09 / piece)
€ 1,231.09
plus VAT.
Only 1 Piece(s) available
Highlights & Details
LRCD220, Combinates Loop- and FI/RCD-Tester
- Loop measurement with high test current
- Loop measurement without FI/RCD-Resolution
- FI/RCD-Test from 10 mA to 1000 mA
- Loop measurement in networks from 100 V to 480 V
- FI/RCD-Tests in networks from 100 V to 280 V
- Robust case with rubber housing IP54
- Measurement category CAT III/ 300
Technical specifications
- Loop measurement with high test current
- Loop measurement without FI/RCD Resolution
- Measurement of residual currents from 10 mA to 1000 mA
- Loop measurement in networks from 100 V to 480 V
- FI/RCD-Tests in networks from 100 V to 280 V.
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
- Interfaces
none
- Dim
(L x W x H) 148 x 203 x 78 mm
- Weight
980 g
IP54
- Reading range (VDE)
Earth fault loop impedance
Voltage
Frequency
- DIN standard
DIN EN 61557
- Display type
Digital (LCD)
- Width
203 mm
- Height
78 mm
- Length
148 mm
- Test procedure
manual
- Voltage supply
Battery
- Memory
No
- Type
LRCD220-DE-SC
- VDE standard
0413
- Features
RCD/FI testing
- Display (details)
LC-Display (3 1/2 Digits), backlit
- Power supply (details)
Batteries 8 x 1,5 V IEC LR 6 (AA) or NiMH Batteries
- Reading category
CAT III / 300 Volt
- Standards
DIN VDE 0413-6, EN6 1557-6
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 556127 Megger LRCD220-DE-SC Combinated Loop- and FI/RCD-Tester DIN VDE 0413-6, EN6 1557-6 "
Description
The Megger LRCD200 series is the latest generation of combined non-tripping loop tester and RCD test instruments that provide simple, affordable and flexible test tools for electrical contractors testing energised circuits.
Features
- Measurement category CAT III / 300 Volt
- Protection class IP 54
- Backlit LC-Display
- Voltage and frequency measurement
- Operation with batteries and rechargeable batteries possible.
Scope of delivery
- Hard shell case
- Schuko- measuring lead
- 8 Batteries
- User manual on CD.
