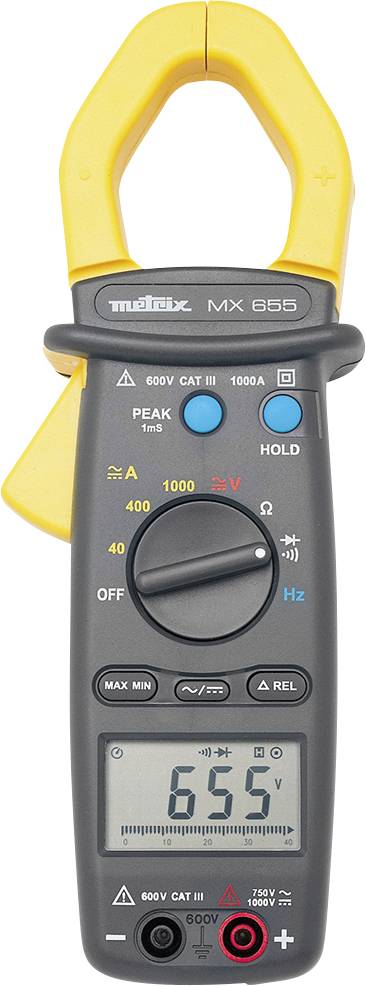

Name: Metrix MX 655 Clamp meter Digital CAT III 600 V Display (counts): 4000
Brand: Metrix
SKU: 1231636
Availability: BackOrder

Highlights & Details

MX 655 MULTIPLIER

4000 digit display
Bar graph with 42 segments
Envelope diameter 40 mm
All basic measurement functions: AC and DC current, AC and DC voltage, resistance, frequency
Acoustic continuity test, diode test
FUNCTIONS: HOLD, PEAK, MIN, MAX, REL

Technical specifications

Frequencies at currents: 20 Hz to 10 kHz
Frequencies at voltages: 10 Hz to 10 kHz
Diode test 1.7 mA
Acoustic continuity tester
Measurement type RMS

Voltage reading range DC (min.): 0.2 V

Product type: Clamp meter

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 0.2 V

V AC reading range (max.): 600 V

Amperage reading range DC (min.): 0.1 A

A DC reading range (max.): 1000 A

A AC reading range (min.): 0.05 A

Amperage reading range AC (max.): 1000 A

Reading range - resistance: 0.2 Ω - 399.9 Ω

Measurement type (details): True RMS

Power supply (details): 9 V battery

Height: 43 mm

Width: 93 mm

Length: 246 mm

Weight: 400 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V

Voltage metering: AC
DC

Current reading: AC
DC

Type: MX 655

Display: Digital

Display (counts): 4000

Dim: (L x W x H) 246 x 93 x 43 mm

Opening range of current clamps: 40 mm

Type: Encapsulation-Ø: 40 mm

Documents & Downloads

Datasheet

Datasheet 1231636 Metrix MX 655 Clamp meter Digital CAT III 600 V Display (counts): 4000

User & Safety Instructions

User & Safety Instructions 1231636 Metrix MX 655 Clamp meter Digital CAT III 600 V Display (counts): 4000

Information

Information 1231636 Metrix MX 655 Clamp meter Digital CAT III 600 V Display (counts): 4000

Description

The Metrix multimeter are equipped with all the functions of a clamp meter and a full-fledged multimeter. They are the ideal tools for every electrician and electrical technician.

The MX 655 and MX 650 models are recommended for RMS measurements of high currents up to 1000 A and voltages up to 750 V.

The multiple clamp meter MX 655 is equipped with a Hall sensor and can therefore measure AC and DC currents up to 1000 A, While the MX 650 is a pure AC measuring pliers with classical current transformer up to 1000 A AC.

This text is machine translated.

Scope of delivery

1 carrying case
1 set of test leads with test tips
1 x 9 V battery
1 user manual in 5 languages

Description

The Metrix multimeter are equipped with all the functions of a clamp meter and a full-fledged multimeter. They are the ideal tools for every electrician and electrical technician.

The MX 655 and MX 650 models are recommended for RMS measurements of high currents up to 1000 A and voltages up to 750 V.

The multiple clamp meter MX 655 is equipped with a Hall sensor and can therefore measure AC and DC currents up to 1000 A, While the MX 650 is a pure AC measuring pliers with classical current transformer up to 1000 A AC.
