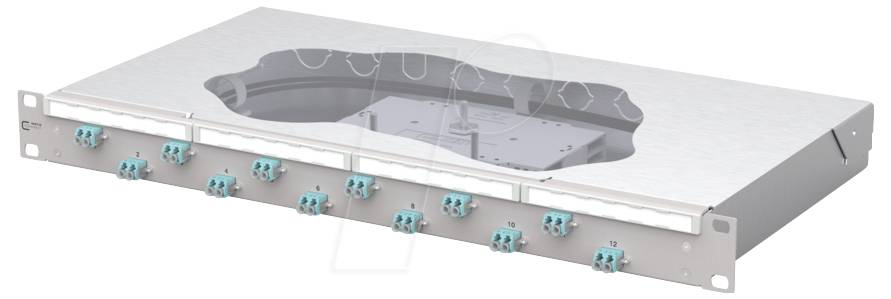

Metz Connect OpDAT fix2 Patchfeld splice 12xLC-D OM3 Patch panel 483 mm (19") Optical fiber 1 U Light grey Equipped
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Only 1 Piece(s) available
Highlights & Details
OpDAT Fix2 Patch field split 12XLC-D OM3
- Patch Panel; Patch field; Patch field; Splice box, fiber optic splicebox, LWL panel, fiber-optic box, LWL-splice box, BTR Netcom
Technical specifications
- Product type
Patch panel
- Rack size
483 mm (19")
Optical fiber
- Rack unit
1 U
- Patch panel design
Equipped
- Connections
Number of couplings - 12
Number of outbreaks front panel - 12
- Width
483 mm
- Height
44 mm
- Depth
259 mm
- Factory colour
Light grey
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3595182 Metz Connect OpDAT fix2 Patchfeld splice 12xLC-D OM3 Patch panel 483 mm (19") Optical fiber 1 U Light grey Equipped
User & Safety Instructions
User & Safety Instructions 3595182 Metz Connect OpDAT fix2 Patchfeld splice 12xLC-D OM3 Patch panel 483 mm (19") Optical fiber 1 U Light grey Equipped
Description
19", 1HE Patch field for fixed installation,
Equipped with 12xLC-D couplings and 24xLC-D OM3 pigtails,
Offset coupling arrangement for easy handling,
Pigtails inserted and removed in standard splice box with crimp splice holders,
Pigtail visually tested and plugged into couplings,
Colour coding according to IEC 60304,
Front plate with labeling field, front plate powder-coated in gray RAL 7035,
Tool-free opening of the lid,
Multiple cable input options at rear: 6xM20; 2xM25; 2xVIK mounting cut-outs
This text is machine translated.
Equipped with 12xLC-D couplings and 24xLC-D OM3 pigtails,
Offset coupling arrangement for easy handling,
Pigtails inserted and removed in standard splice box with crimp splice holders,
Pigtail visually tested and plugged into couplings,
Colour coding according to IEC 60304,
Front plate with labeling field, front plate powder-coated in gray RAL 7035,
Tool-free opening of the lid,
Multiple cable input options at rear: 6xM20; 2xM25; 2xVIK mounting cut-outs
This text is machine translated.
