Micro USB Socket MOL Micro Solutions Vertical 1051330031 Molex Content: 1 pc(s)

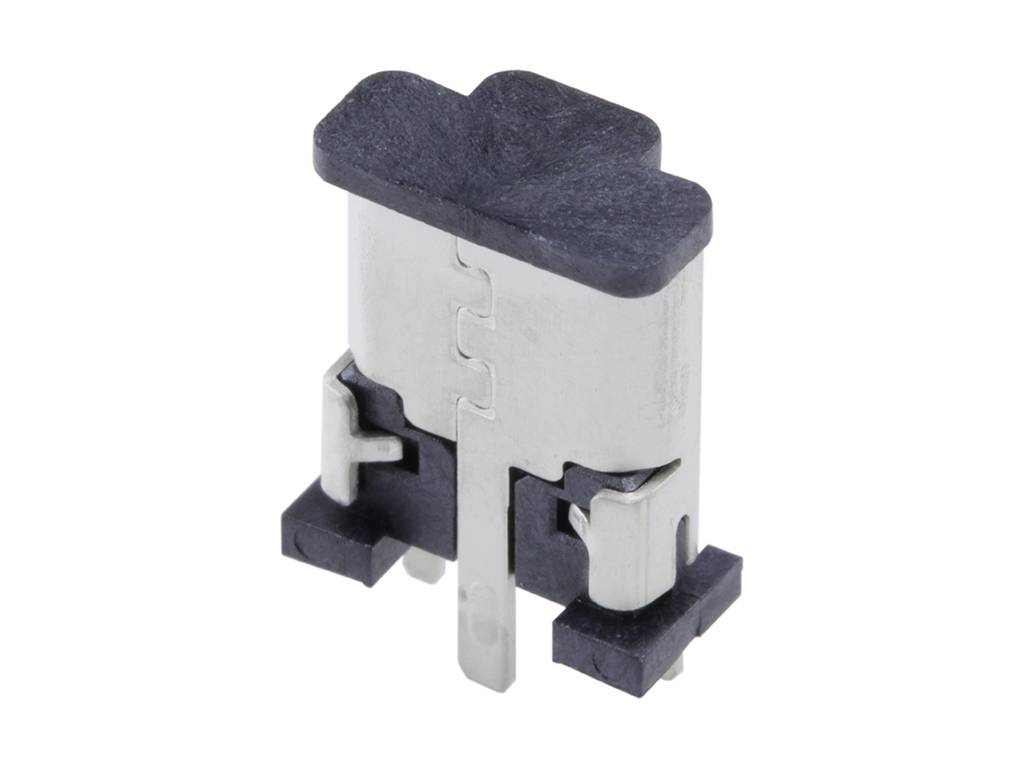

Small, metallic connector module with black plastic components, used in electronic devices for connections.
A technical drawing of an electrical connector in an isometric view, showing the contacts and housing components.
1/2
Image similar
Packaging type
Tape on Full reel
Product type
USB connector
Connector type
Socket
Number of pins
5
USB type
Micro B
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
190 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Tape on Full reel
Piece(s) (Content: )
Total (€ 0.68 / piece)
€ 0.68
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Micro USB

  • Micro-USB-B receiver with flange, vertical, surface mount, 9.80mm height, 2.30mm solder tabs, Lead-free
  • This text is machine translated.

Our service for you

Technical specifications

  • Application: Cable to PCB
  • Number of rows: 1
  • Inputs 1
  • Max. Durability Mating cycles) 10000
  • Material - coating Crimp area: Gold
  • Material - coating plug area: Gold on palladium nickel
  • Pitch – crimp range 0.65 mm
  • Grid pitch - plug-in area 0.65 mm
  • Coded to the opposite: Yes
Packaging type

Tape on Full reel

Type

MOL Micro Solutions

Product type

USB connector

Connector type

Socket

Type

Vertical

Number of pins

5

USB type

Micro B

Connection

SMT

Manufacturer part #

1051330031

Factory colour

Black

Content

1 pc(s)

Contact material

Copper alloy

Material

LCP

Nominal voltage (details)

30 V AC

Nominal current (details)

1.8 A, 1 A

RoHS-compliant

Yes

Features

encodable

Max. temperature

+85 °C

Min. temperature

-30 °C

Documents & Downloads

Datasheet

Datasheet 2901027 Micro USB Socket MOL Micro Solutions Vertical 1051330031 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2901027 Micro USB Socket MOL Micro Solutions Vertical 1051330031 Molex Content: 1 pc(s)

Description

Micro-USB B Receptacle with Flange, Vertical, Surface Mount, 9.80mm Height, 2.30mm Solder Tabs, Lead-Free
