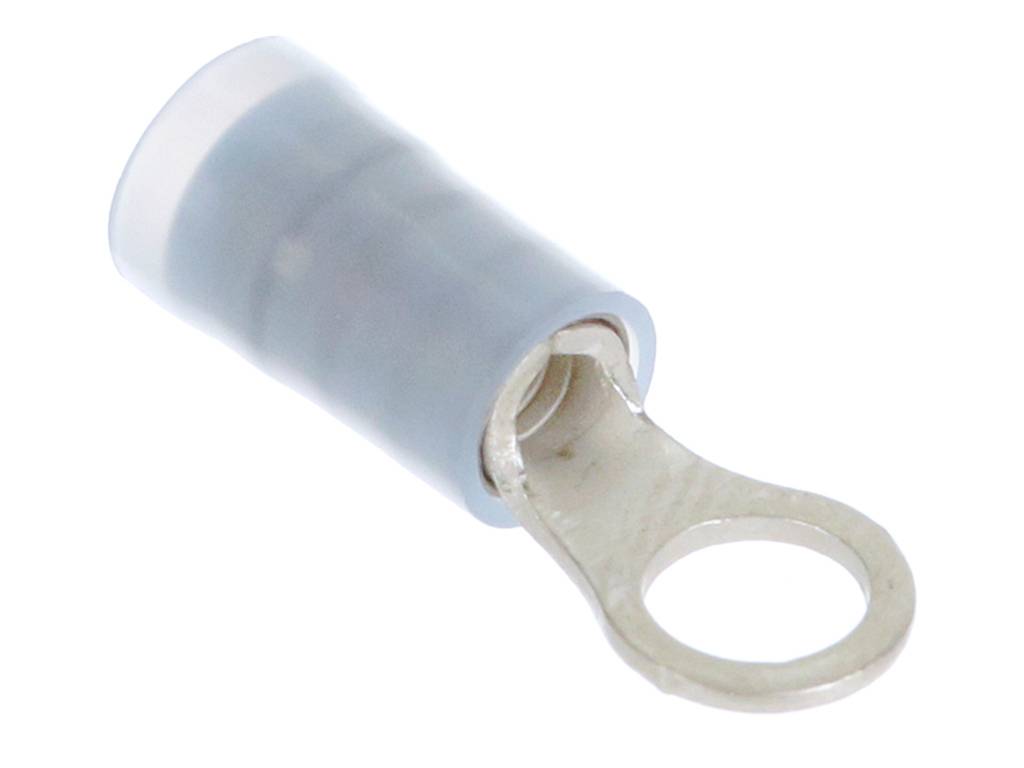

Molex 190730072 Ring terminal + crimp, tin-plated Cross section (max.)=2 mm² Hole Ø=4 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ring terminal
Thread size
M4
Hole Ø
4 mm
Content
1 pc(s)
Datasheet (PDF)
Number
Minimum order quantity: 400
Total (€ 0.26 / piece)
€ 0.34
-24 %
€ 104.00
plus VAT.
14-day return policy included
Highlights & Details
RING/SPADE TERMINALS
- 1.3 - 2 mm²
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Piece
- Product type
Ring terminal
- Thread size
M4
- Hole Ø
4 mm
- Content
1 pc(s)
- Contact material
Tin plated
- Manufacturer part #
190730072
- Type
Molex MOL Industrial Solution
- AWG max.
14
- AWG (min.)
16
- max. cross section
2 mm²
- Min. cross section
1.3 mm²
- Weight
0.84 g
- Insulation material
Nylon (NL)
- Dimensions
20.32 mm
- Cross-section range
1.3 - 2 mm²
- RoHS-compliant
Yes
- Features
+ crimp
tin-plated
- Support sleeve
Yes
- Engineering Part No
BB-823-08
- Engineering Series Name
RING AVIKRIMP SB SER
- Engineering Series No
19073
Documents & Downloads
Datasheet
Datasheet 2447675 Molex 190730072 Ring terminal + crimp, tin-plated Cross section (max.)=2 mm² Hole Ø=4 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2447675 Molex 190730072 Ring terminal + crimp, tin-plated Cross section (max.)=2 mm² Hole Ø=4 mm 1 pc(s) Piece
Circuit diagramm
Circuit diagramm 2447675 Molex 190730072 Ring terminal + crimp, tin-plated Cross section (max.)=2 mm² Hole Ø=4 mm 1 pc(s) Piece
Description
Avikrimp Ring Tongue Terminal for 14 to 16 AWG Wire, Stud Size 8 (M4), Length 20.32mm
