1/2
Image similar

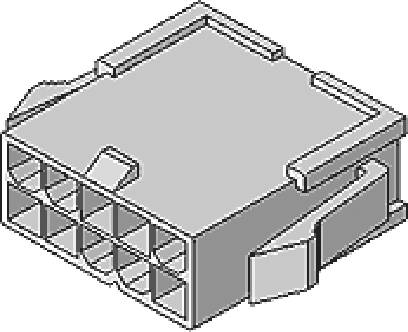

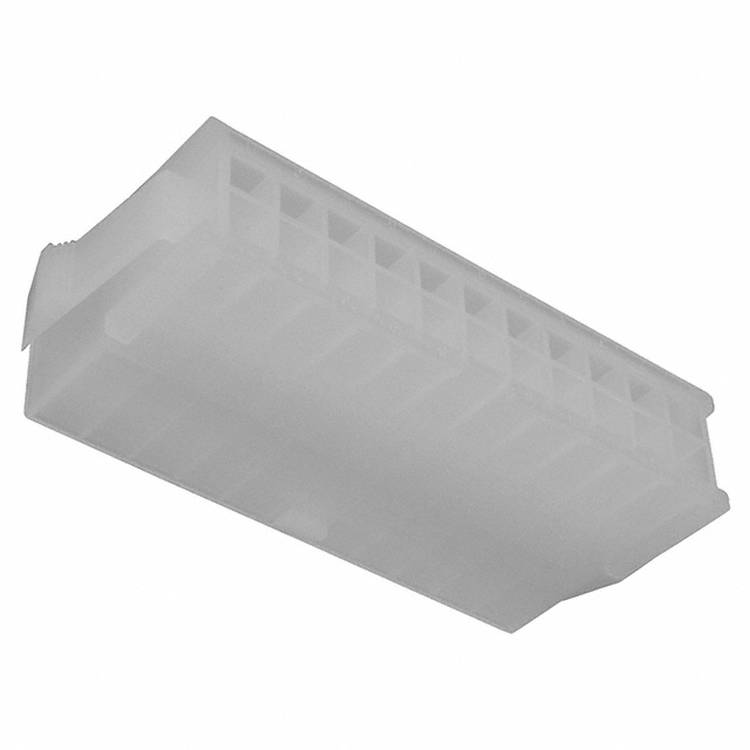

Molex Socket housing cable Total number of pins 22 Contact spacing: 4.2 mm 39012221 1 pc(s) Bag
Product type
Socket housing cable
Connector type
Plug
No. of rows
2
CS
4.2 mm
Total number of pins
22
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1.29 / piece)
€ 2.05
-37 %
€ 1.29
incl. VAT
14-day return policy included
Highlights & Details
MINI FIT
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 22
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Socket housing cable
- Connector type
Plug
- No. of rows
2
- CS
4.2 mm
- Total number of pins
22
- Nominal current
13 A
- Nominal current - rounded value
13 A
- Content
1 pc(s)
- Case material
Nylon (NL)
- Manufacturer part #
39012221
- Factory colour
Ecru
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
5559-22P
- Engineering Series Name
MINIFIT JR PLUG HSG
- Engineering Series No
05559
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2448319 Molex Socket housing cable Total number of pins 22 Contact spacing: 4.2 mm 39012221 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2448319 Molex Socket housing cable Total number of pins 22 Contact spacing: 4.2 mm 39012221 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2448319 Molex Socket housing cable Total number of pins 22 Contact spacing: 4.2 mm 39012221 1 pc(s) Bag
Description
Mini-Fit Jr. Plug Housing, Dual Row, 22 Circuits, UL 94V-2, with Panel Mounting Ears, Natural
