Name: Monitoring relay 160 - 690 V AC 2 change-overs Siemens 3UG4614-1BR20 Piece 1 pc(s)
Brand: Siemens
SKU: 502498
Availability: BackOrder

A switchboard with multiple cables, including a main switch with a rotary handle by Siemens. Colour-coded wiring below.

Technical drawing of an electronic component with dimensions: width 22.5 mm, height 120 mm, depth 92 mm. Shows details such as connections and contours.

1/2

Application

Packaging type

Piece

Product type

Monitoring relay

Functions

Phase sequence

Phase error

Asymmetry

Undervoltage

Max. operating voltage

690 V AC

Contact type

2 change-overs

Datasheet (PDF)

Dispatches on Tue 20 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 194.99 / piece)

€ 240.00

-19 %

€ 194.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Asymmetry (reference): 0 or 5 - 20%; Mounting Type: Snap-on mounting

Packaging type: Piece

Product type: Monitoring relay

Type: 3UG4614-1BR20

Functions: Phase sequence
Phase error
Asymmetry
Undervoltage

Operating voltage: 690 V AC

Min. operating voltage: 160 V AC

Max. operating voltage: 690 V AC

Operating voltage: 160 - 690 V AC

Amperage adjustment range (min.): 1 A

Amperage adjustment range (max.): 3 A

Adjustment range (amperage): 1 - 3 A

Contact type: 2 change-overs

Switching voltage (max.): 690 V AC

Electrical lifespan: 100000

Durability: 1.0E7

Connection: Screws

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 22.5 mm

Height: 92 mm

Depth: 91 mm

Dim: (L x W x H) 86 x 22.5 x 92 mm

Content: 1 pc(s)

Length: 86 mm

Type: Monitoring relay for mains and three-phase voltages

Type: 3UG4614-1BR20

Operating voltage: 160 - 690 V AC

: 22.5

: 92 mm

: 91 mm

: TRUE

: TRUE

: TRUE

: TRUE

: FALSE

: TRUE

: Screw connection

: 20 s

: 0.1 s

: 20 s

: 0.1 s

: AC

: 0

: 0

: 2

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Switching voltage (max.)

Packaging type

Functions

Contact type

Max. operating voltage

Monitoring relay 160 - 690 V AC 2 change-overs Siemens 3UG4614-1BR20 Piece 1 pc(s)

Item no:502498

Dispatches on Tue 20 Oct

Conrad Electronic

This article

690 V AC

Piece

Phase sequence

2 change-overs

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

Monitoring relay 160 - 690 V AC 1 change-over, 1 change-over Siemens 3UG4615-1CR20 Piece 1 pc(s)

Item no:502500

Fast track dispatch on Wed 14 Oct

3 Piece(s)Conrad Electronic

690 V AC

Piece

Phase sequence

1 change-over

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

Monitoring relay 24, 24 - 240, 240 V DC, V AC 1 change-over Siemens 3UG4622-1AW30 Piece 1 pc(s)

Item no:502521

Fast track dispatch on Wed 14 Oct

6 Piece(s)Conrad Electronic

240 V DC/AC

Piece

1-phase

1 change-over

240 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 184.99^*

Siemens 3UG4501-1AW30 Fill Level Monitoring Relay, Analogue, N/A

Item no:502485

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

240 V DC/AC

Piece

Fluid level monitoring

1 change-over

240 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Siemens 3UG4513-1BR20 Three Phase & Mains Voltage Monitoring Relay, Analogue, N/A

Item no:502497

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

Phase sequence

2 change-overs

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Siemens 3UG4631-1AW30 Single Phase Voltage Monitoring Relay, Digital, N/A

Item no:502508

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

1-phase

1 change-over

240 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

Siemens 3UG4641-1CS20 Single Phase Voltage Monitoring Relay, Digital, N/A

Item no:502512

Dispatches on Fri 16 Oct

60 Piece(s)Conrad Electronic

690 V AC

Piece

Power factor monitoring

1 change-over

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

Siemens 3UG4651-1AW30 Speed Monitoring Relay, Digital, N/A

Item no:502513

Dispatches on Tue 20 Oct

Conrad Electronic

RPM undershoot

1 change-over

240 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 295.00^*

Siemens 3UG4632-1AA30 Single Phase Voltage Monitoring Relay, Digital, N/A

Item no:502509

Unavailable

Conrad Electronic

1-phase

1 change-over

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 199.99^*

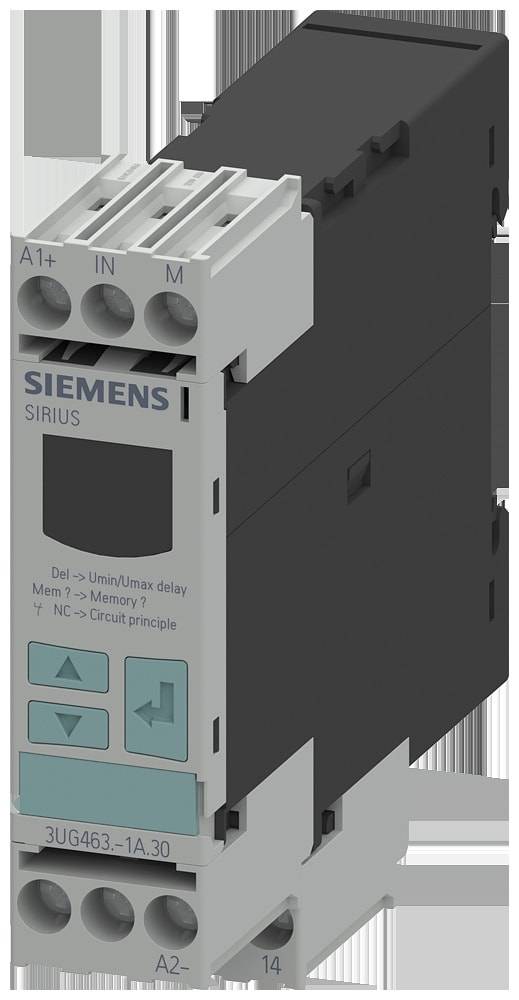

Siemens 3UG4632-1AW30 Single Phase Voltage Monitoring Relay, Digital, N/A

Item no:502511

Unavailable

Conrad Electronic

Piece

1-phase

1 change-over

240 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Documents & Downloads

Datasheet

Datasheet 502498 Monitoring relay 160 - 690 V AC 2 change-overs Siemens 3UG4614-1BR20 Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 502498 Monitoring relay 160 - 690 V AC 2 change-overs Siemens 3UG4614-1BR20 Piece 1 pc(s)

Description

The SIRIUS monitoring relay 3UG4 provide optimum protection for machinery and equipment, permanently installed to protect against over-or undervoltage, or for the complete network monitoring with portable equipment. Also, monitoring of the load of motors and the functionality of electrical loads is done by monitoring relay 3UG4 for current, cos phi and active current monitoring. The monitoring relay 3UG4 also control non-electrical quantities such as liquid levels or even the speed of motors
Special features: Due to the Wide span used by all networks in the world, permanent display of value and type of error in digital versions, all versions with removable terminals, small width.
