Müller BW 40.18 230V 50Hz Service hours counter Counter rolls
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Highlights & Details

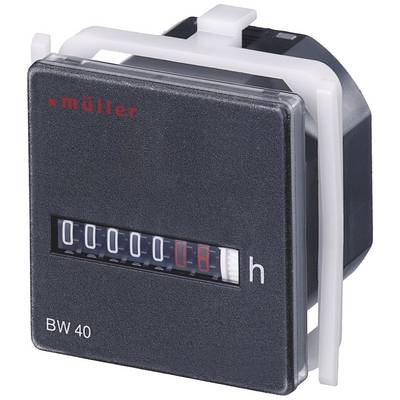

BW4018 operating hours meter
- Front panel installation 48 x 48 mm
- Low-noise
- Quick mounting with spring clip
- Assembly dimensions 45 x 45 mm
Technical specifications
- Permissible ambient temperature: -10 to +50 °C
- Voltage tolerance: ±15 %
- Counter range
99999.99
- Operating voltage
230 V/50 Hz
- Assembly dimensions
45 x 45 mm
- Type
BW 40.18 230V 50Hz
- Type
Panel mount
IP50
- Dim
(L x W x H) 38 x 48 x 48 mm
- Connections
Universal connection: Screw
Solder and AMP connector 6.3 x 0.8 mm
- Digits
7-digit
- Display (details)
Counter rolls
- Weight
57 g
- Factory colour
Black
- Product type
Service hours counter
- Width
48 mm
- Height
48 mm
- Length
38 mm
- Digit height
4.4 mm
Documents & Downloads
Datasheet
Datasheet 123432 Müller BW 40.18 230V 50Hz Service hours counter Counter rolls
User & Safety Instructions
User & Safety Instructions 123432 Müller BW 40.18 230V 50Hz Service hours counter Counter rolls
Description
The Müller BW 40 AC operating hours counter is suitable for installation in control panels and has 230 V/50 Hz connections.
Features
- Large digits
- Quick mounting with spring clip
- Additional components for other apertures
- Low-noise
- Finger-safe connections in line with VBG4
- Easy assembly
- IP 54 sealing ring
- Front panel 48 x 48 mm
- Case material: Self-extinguishing thermoplastic
- White digits, red decimals
