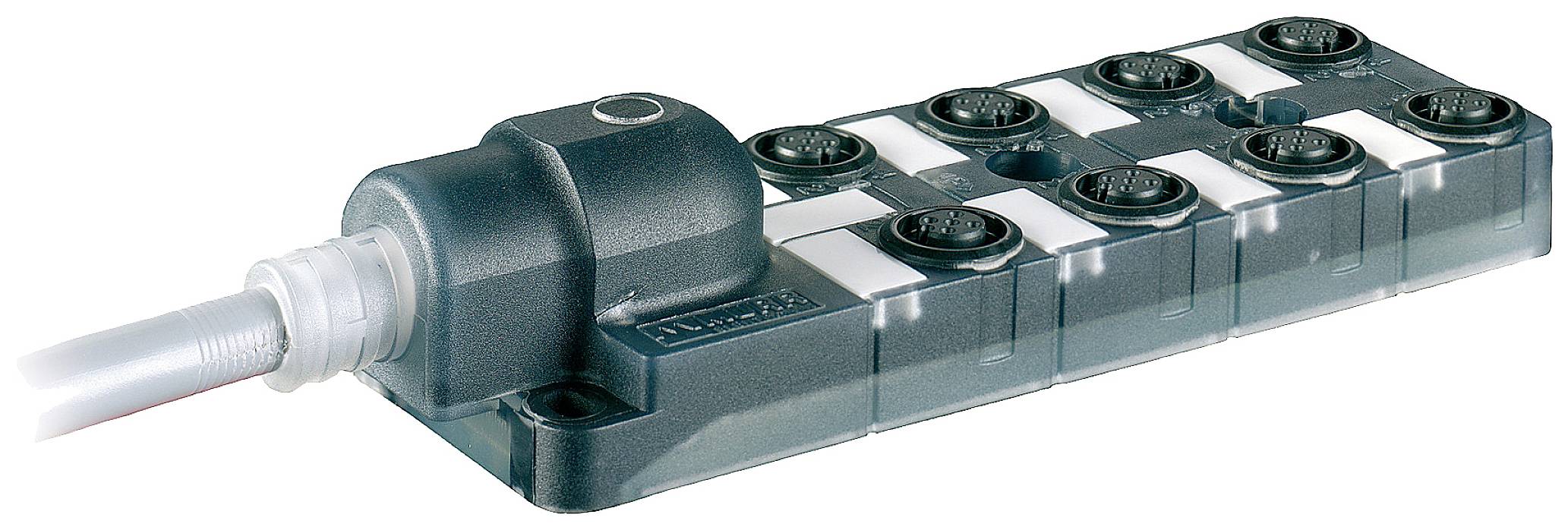

Murrelektronik 8000-88510-4521000 Sensor & actuator box (passive) M12 splitter + plastic thread 1 pc(s)
Product type
Sensor & actuator box (passive)
No. of signal spaces
16
No. of splitters
8-way
Type
8000-88510-4521000
Status indicator
LED
Datasheet (PDF)
EAN:
Part number:
Item no:
18 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 204.99 / piece)
€ 204.99
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Wire insulation: TPE (grrs, ws, rtbl, gn, wsgn, ge, brgn, gr, wsge, rs, brr, rt, wsgr, sw, grbr, vi, br, bl, gnge)
- Outside diameter 11.5 mm
- AWG: Similar AWG 20 (0.5 mm²); similar AWG 17 (1.0 mm²)
- Operating voltage: 24 V DC
- Bending radius (moving): 10× outer-Ø
- Chemical resistance: Good resistance to oil, petrol and chemicals
- Single wire Ø (conductor): 0.1 mm
- Cable number: 452
- Material (core insulation): TPE-E
- Material (conductor): Plain copper braid
- Material (sheath): PUR (UL/CSA)
- Nominal voltage 300/300 V AC
- PIN 1 (+)
- PIN 2: (NC)/(S2)
- PIN 3: (-)
- PIN 4: (NO)/(S1)
- Pin 5: (Ground)
- Test voltage: 2000 V/AC
- Drag chain values: 5 Mio
- Temperature note: Depending on the connected line
- Travel speed (drag chain): Max. 2 m/s.
- Slot locking: Screw thread (M12×1 mm)
- Resistance (conductor): Max. 39 Ω/km (0.5 mm²); max. 20 Ω/km (1.0 mm²); (20 °C)
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
16
- Type
8000-88510-4521000
- No. of splitters
8-way
- Status indicator
LED
- Signal type
PNP
IP65/67
- Max. power rating per slot
4 A
- Total current (direct supply)
13 A
- Max. temperature
+70 °C
- Min. temperature
-20 °C
- Connector cross section (max.)
1.0 mm²
- Connector cross section (min.)
0.5 mm²
- Connector type (distribution boxes)
M12 socket
- Case material
Plastic
- Total no. of pins
5
- Manufacturer part #
8000-88510-4521000
- Factory colour
Black
- Content
1 pc(s)
- Number of pins
5
- RoHS-compliant
Yes
- Power rating (total)
13 A
- Power rating per I/O
4 A
- UKCA
yes
