NetAlly LinkRunner LRAT-1500 Network tester
EAN:
Part number:
Item no:
Number
Total (€ 1,570.59 / piece)
€ 1,570.59
plus VAT.
Only 1 Piece(s) available
LinkRunner AT-1500 cable and network qualifiers
Highlights & Details
- Fast Network Validation - Network Layer 1 to Layer 7 review in a few seconds.
- AutoTest: Fully customizable test to validate connectivity and services.
- PoE validation: Tests Power over Ethernet (PoE) under load up to 90 W (TruePower™).
- Switch Discovery: Identifies the nearest switch port, name, model, and VLAN ID via LLDP/CDP/EDP.
- Automatic reporting: Automatically uploads test results to the Link-Live Cloud platform for documentation.
- Certification Meets MIL-PRF-28800F (Class 3) for shock and vibration resistance
- Link speeds: Recording from 10 Mbit/s up to 10 Gbit/s.
- Memory Approx. 8 GB for results and applications
- Charging time 5 hours (with the device switched off)
- Operating temperature: 0 - 45 °C
- Weight 0.48 kg.
- Dimensions: 10.2 cm x 19.6 cm x 4.2 cm
Technical specifications
- Product type: Site diagnostics and meter
- USB-plug USB typ-A, Mini-USB B
- Product type
Network tester
- Factory colour
Green
- Depth
41.9 mm
- Height
196.1 mm
- Width
102.1 mm
- Weight
499 g
- UKCA
not relevant
- Battery life
6 h
- Batteries included
yes
- Rechargeable battery
yes
Documents & Downloads
Datasheet
Datasheet 3762236 NetAlly LinkRunner LRAT-1500 Network tester
User & Safety Instructions
User & Safety Instructions 3762236 NetAlly LinkRunner LRAT-1500 Network tester
Description
The LinkRunner AT 1500 is the robust, portable tool for operational technicians who need fast, comprehensive validation of copper network connectivity. As the next generation Ethernet AutoTester it offers a significantly extended network view as compared to the previous models with its large touch-screen. It enables quick validation of connections, analysis of device connectivity and professional documentation of network (MAC) changes.
This text is machine translated.
This text is machine translated.
Features

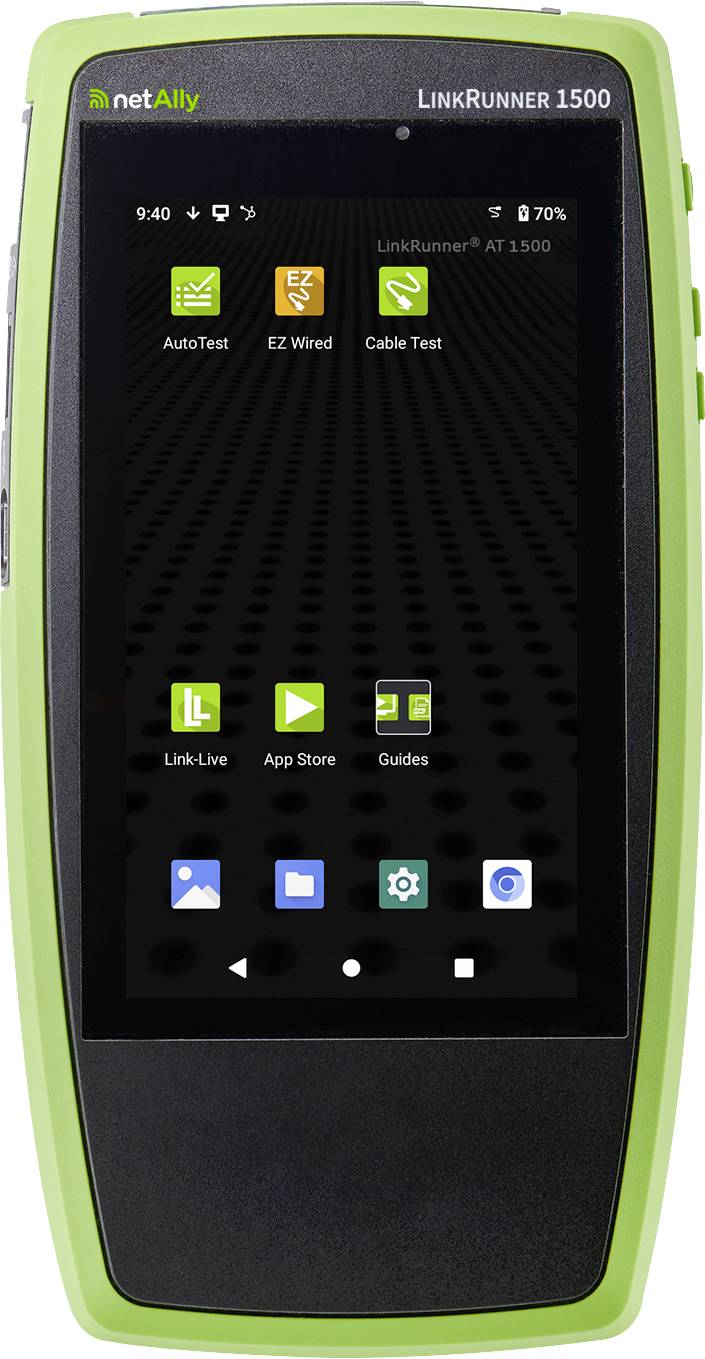

- Display: 5.0" color LCD with capacitive touch screen (720 x 1280 pixels)
- Interfaces: RJ-45 Ethernet test port, RJ-45 wiremap connector, USB type A and USB type C (power connector)
- Audio: Built-in speaker and tone generator for cable localization
- Operation: On/off button and volume control on the side

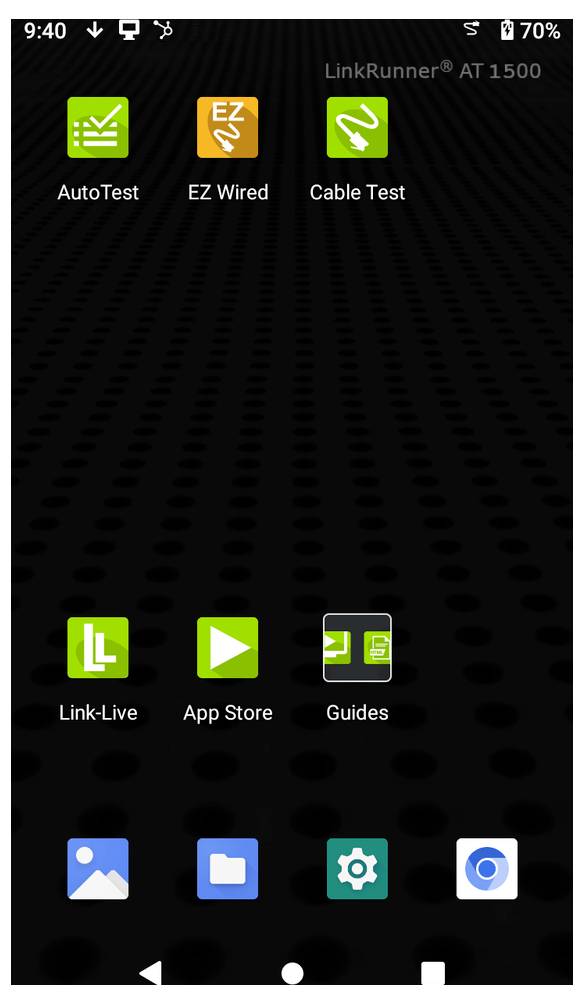

- Apps: Contains the AllyWare™ Common Technology platform with apps such as AutoTest, EZ Wired and Cable Test

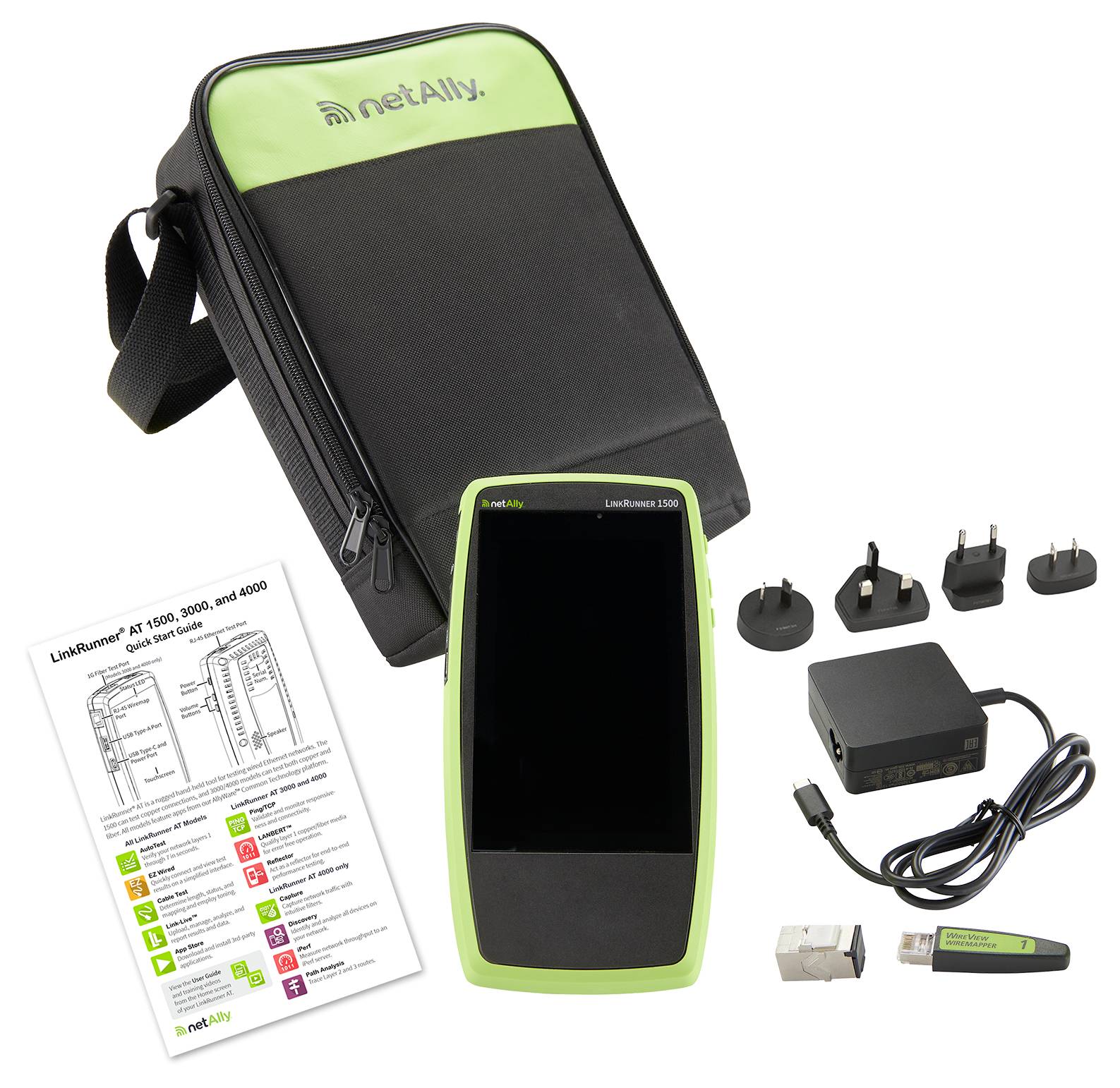

Scope of delivery
- LinkRunner AT 1500 tester
- Power supply with country-specific mains plugs (USB-C 65 W)
- WireView wire pair IDs #1
- Small soft case
- Quick guide
