Name: OBO Bettermann 2003707 Dry lining box Windproof (Ø x D) 60 mm x 46 mm 25 pc(s)
Brand: OBO Bettermann
SKU: 2525534
Availability: InStock

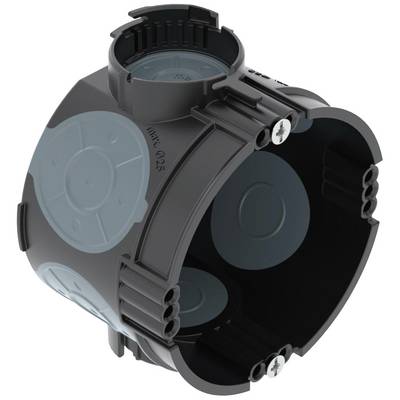

Black round junction sleeves with blue covers and screw holes, used for the installation of electrical cables.

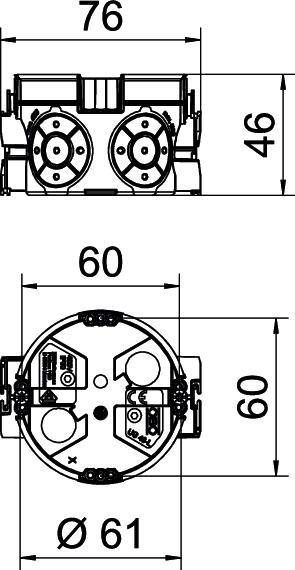

Technical drawing of an electrical component with dimensions: 76x46 mm at the top, 60x60 mm at the bottom, diameter 61 mm.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 1.92 / piece)

€ 47.99

incl. VAT

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

UP device socket UG 46-GS-L, airtight

FLUSH-MOUNTED device socket 46, with device screws, air-tight

Technical specifications

Number of introductions: 8
With device screws

Product type: Dry lining box

Features: Windproof

Mounting type: Flush-mount

Content: 25 pc(s)

Factory colour: Black

Dim: (Ø x D) 60 mm x 46 mm

Depth: 46 mm

(Ø): 60 mm

UKCA: yes

Variants(All information include VAT, plus shipping costs)

(Ø)

Content

Depth

Dim

Mounting type

Product type

OBO Bettermann 2003707 Dry lining box Windproof (Ø x D) 60 mm x 46 mm 25 pc(s)

Item no:2525534

Fast track dispatch on Thu 29 Oct

2 Set(s)Conrad Electronic

This article

60 mm

25 pc(s)

46 mm

(Ø x D) 60 mm x 46 mm

Flush-mount

Dry lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

OBO Bettermann 2003700 Dry lining box (Ø x D) 60 mm x 46 mm 25 pc(s)

Item no:2525529

Fast track dispatch on Thu 29 Oct

18 Set(s)Conrad Electronic

60 mm

25 pc(s)

46 mm

(Ø x D) 60 mm x 46 mm

Flush-mount

Dry lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.99^*

OBO Bettermann 2003701 Dry lining box (Ø x D) 60 mm x 46 mm 25 pc(s)

Item no:2525530

Fast track dispatch on Thu 29 Oct

7 Set(s)Conrad Electronic

60 mm

25 pc(s)

46 mm

(Ø x H) 60 mm x 46 mm

Flush-mount

Dry lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

OBO Bettermann 2003702 Device lining box (Ø x D) 60 mm x 66 mm 25 pc(s)

Item no:2525531

Fast track dispatch on Thu 29 Oct

10 Set(s)Conrad Electronic

60 mm

25 pc(s)

66 mm

(Ø x H) 60 mm x 66 mm

Flush-mount

Device lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

OBO Bettermann 2003703 Device lining box (Ø x D) 60 mm x 66 mm 25 pc(s)

Item no:2525532

Fast track dispatch on Thu 29 Oct

6 Set(s)Conrad Electronic

60 mm

25 pc(s)

66 mm

(Ø x H) 60 mm x 66 mm

Flush-mount

Device lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

OBO Bettermann 2003722 Device lining box (Ø x D) 60 mm x 46 mm 10 pc(s)

Item no:2525541

Fast track dispatch on Thu 29 Oct

4 Set(s)Conrad Electronic

60 mm

10 pc(s)

46 mm

(Ø x D) 60 mm x 46 mm

Flush-mount

Device lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

OBO Bettermann 2003706 Dry lining box Windproof (Ø x D) 60 mm x 46 mm 25 pc(s)

Item no:2525533

Unavailable

Conrad Electronic

60 mm

25 pc(s)

46 mm

(Ø x D) 60 mm x 46 mm

Flush-mount

Dry lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

OBO Bettermann 2003708 Device lining box Windproof (Ø x D) 60 mm x 66 mm 25 pc(s)

Item no:2525535

Unavailable

Conrad Electronic

60 mm

25 pc(s)

66 mm

(Ø x H) 60 mm x 66 mm

Flush-mount

Device lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

OBO Bettermann 2003709 Device lining box Windproof (Ø x D) 60 mm x 66 mm 25 pc(s)

Item no:2525536

Unavailable

Conrad Electronic

60 mm

25 pc(s)

66 mm

(Ø x D) 60 mm x 66 mm

Flush-mount

Device lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

OBO Bettermann 2003714 Dry lining box With mounting flanges (Ø x D) 60 mm x 46 mm 25 pc(s)

Item no:2525544

Unavailable

Conrad Electronic

60 mm

25 pc(s)

46 mm

(Ø x H) 60 mm x 46 mm

Flush-mount

Dry lining box

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 73.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2525534 OBO Bettermann 2003707 Dry lining box Windproof (Ø x D) 60 mm x 46 mm 25 pc(s)

Description

Flush-mounted device socket with air-tight membrane inserts, for use in masonry with a minimum installation depth of 46 mm.
4 x 3 Screw dome
2 pre-assembled device screws
Two-sided coupling connection with bayonet lock
4 combi pipe entries Ø 20 and 25 mm
2 inserts up to Ø 20 mm in the connection socket
2 inserts up to Ø 12 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
