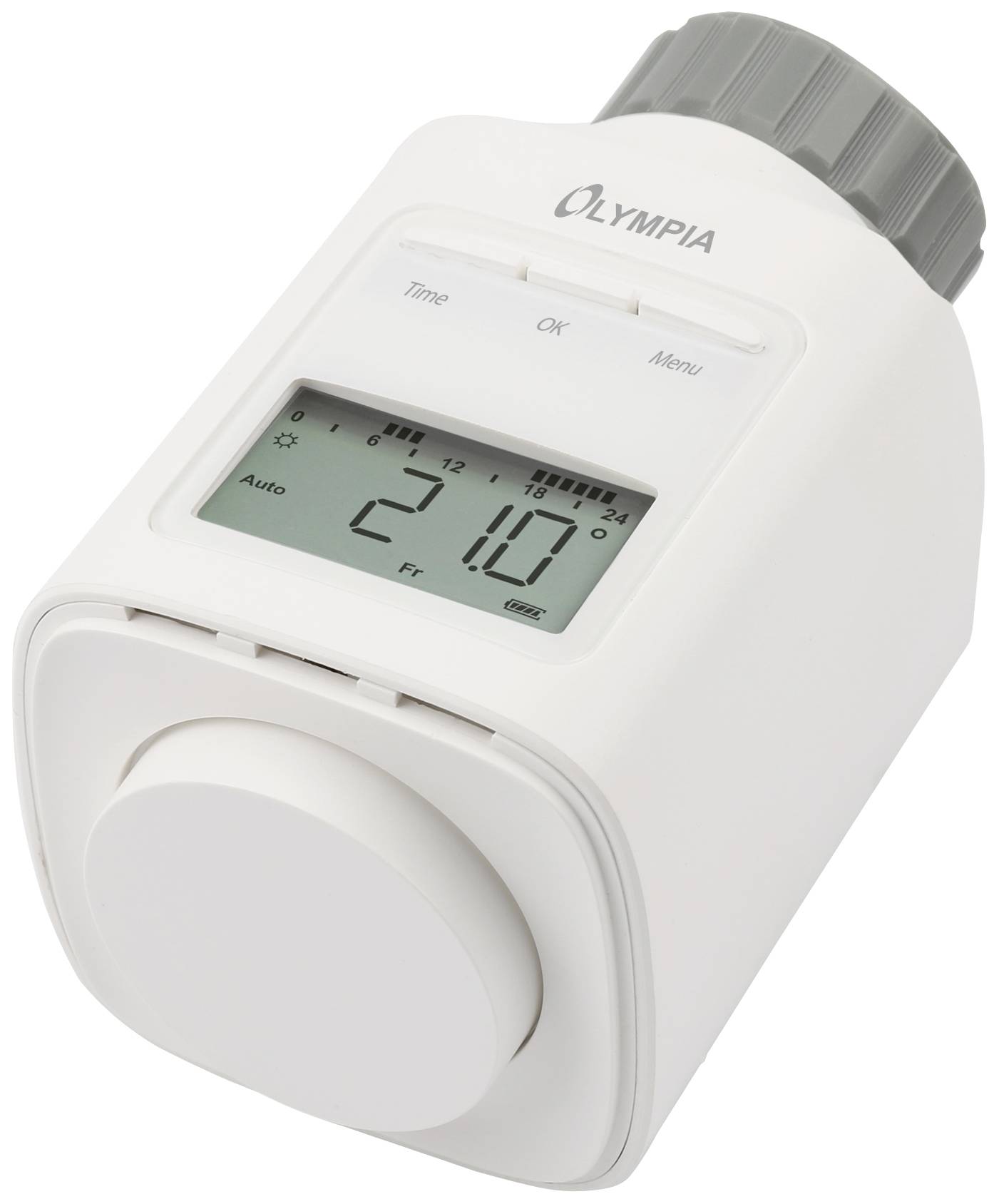

An electronic thermostat displays the room temperature of 21 degrees Celsius on its screen. Above the display are buttons for Time, OK, and Menu.

An electronic thermostat displays the room temperature of 21 degrees Celsius on its screen. Above the display are buttons for Time, OK, and Menu.

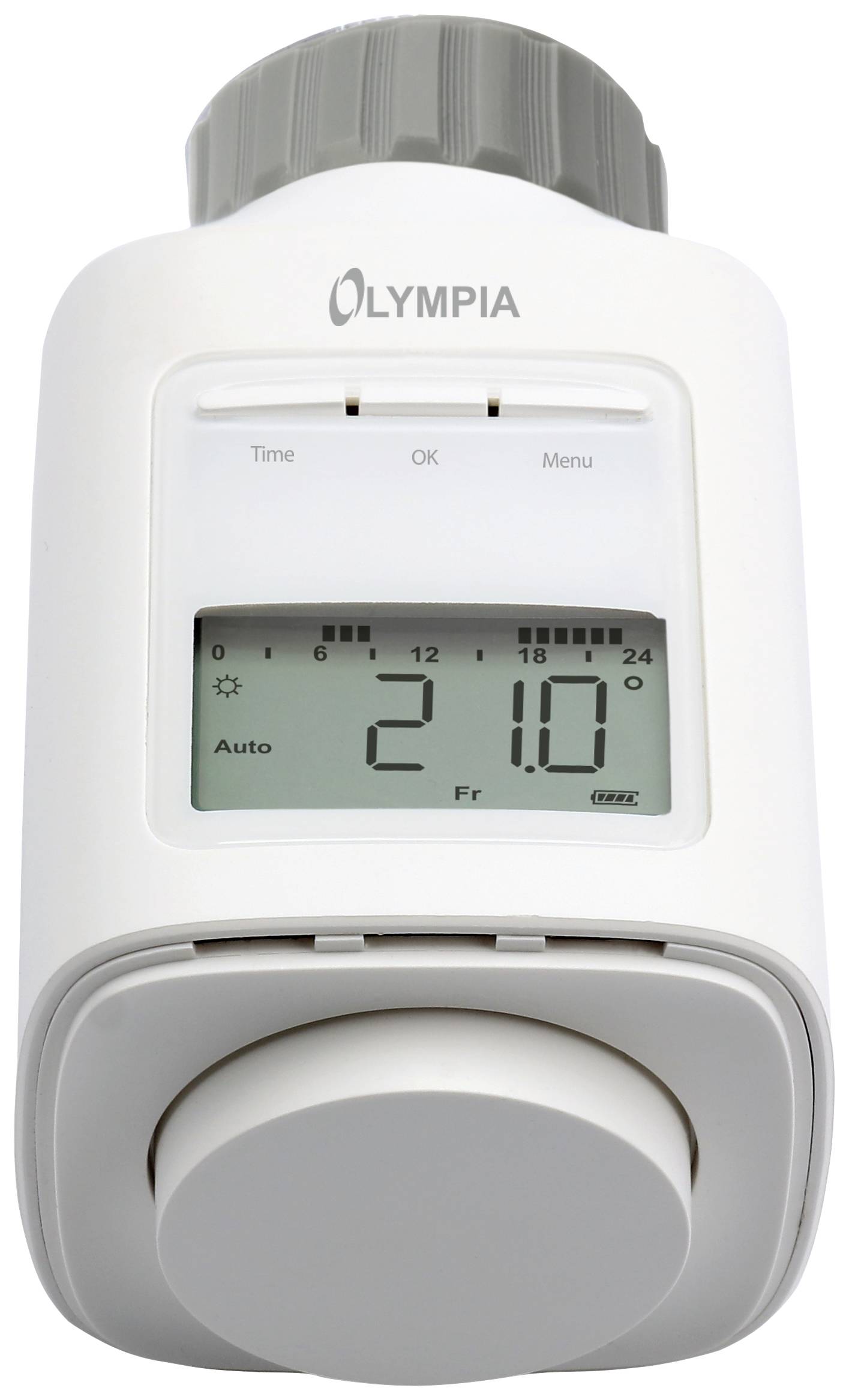

Digital thermostat with display showing '21.0' degrees Celsius. Buttons for time, OK and menu. White casing with grey control dial on top.

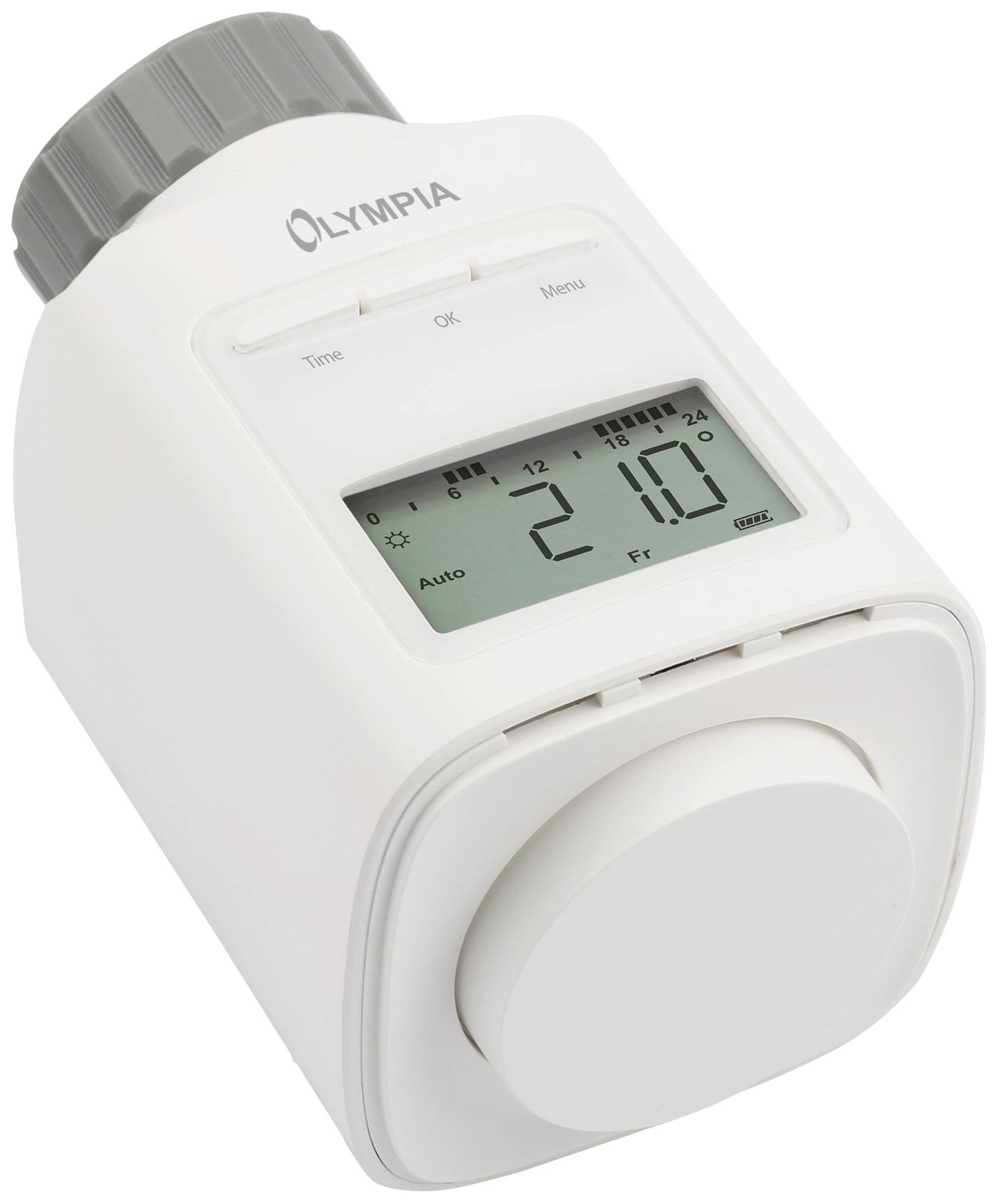

Electronic radiator thermostat, displaying 21.0 degrees Celsius. Large rotary dial at the bottom, buttons for time setting at the top.

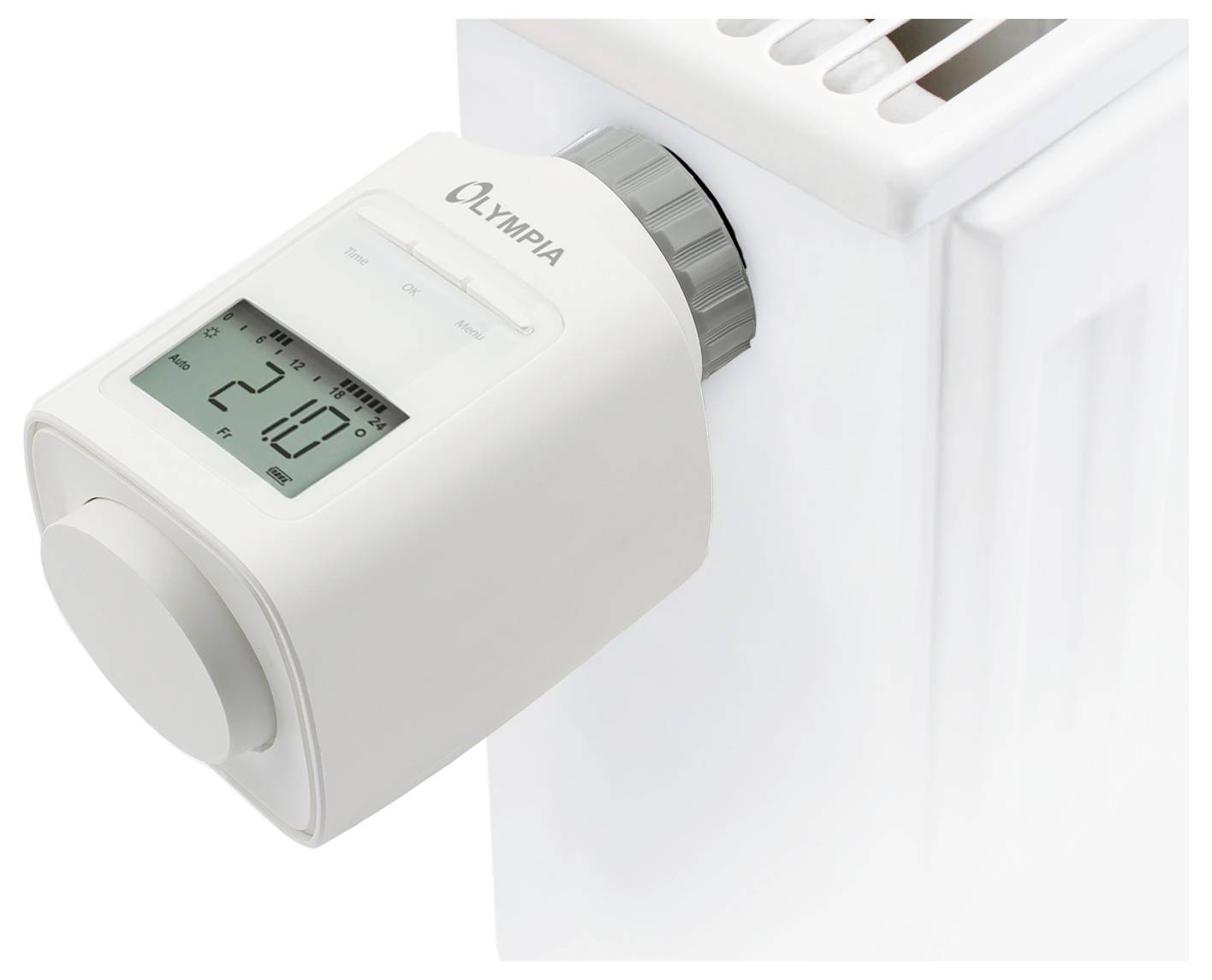

A programmable electronic radiator thermostat is displaying a set temperature of 21 degrees Celsius.

Packaging for an Olympia radiator thermostat. Contains a digital display and a rotary control. Text: 'Saves up to 30% on heating costs'.

'Radiator thermostat by Olympia in packaging. Simple to install without opening the heating water circuit.'

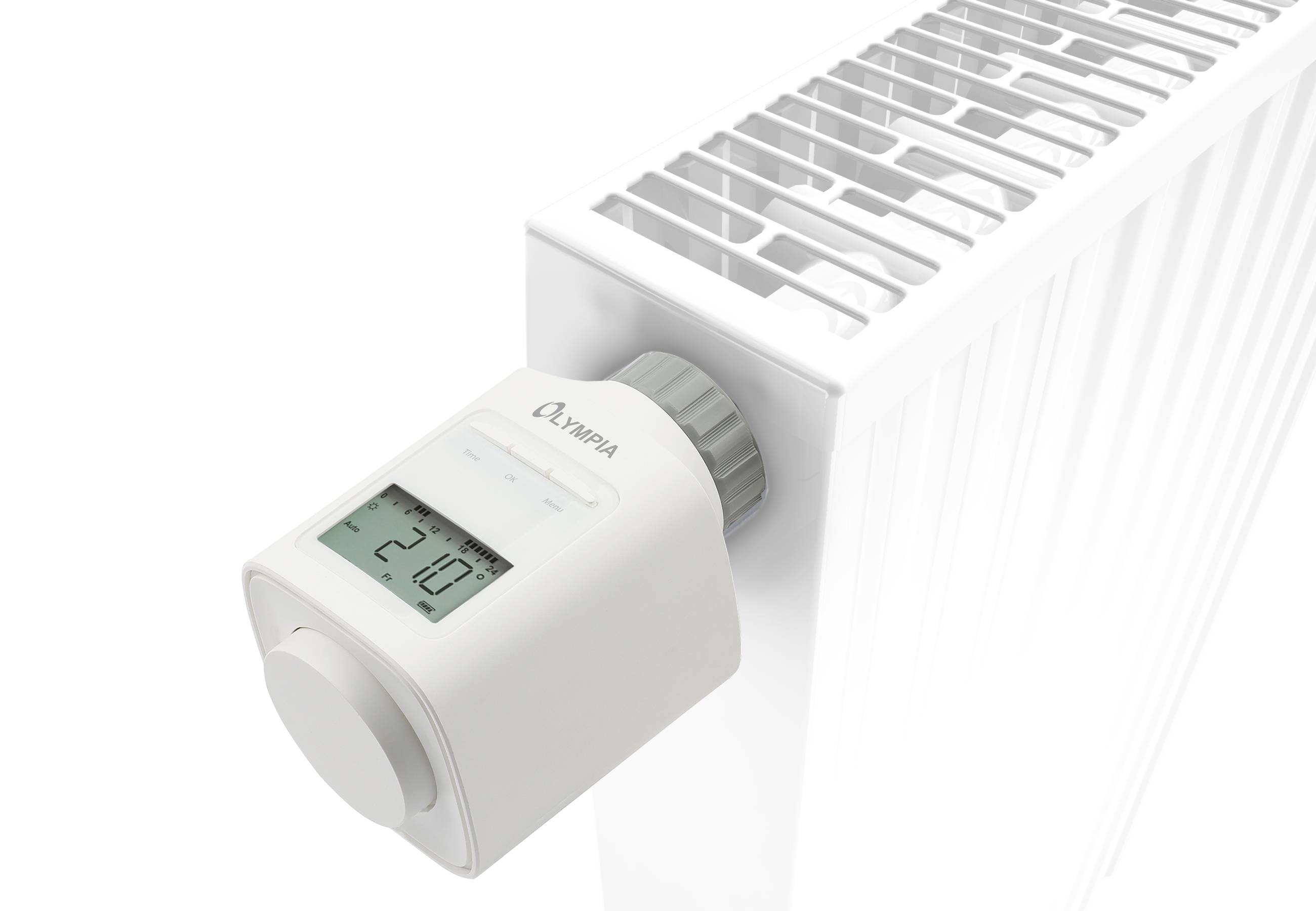

A white radiator with a digital thermostat shows a set temperature of 21 degrees Celsius.

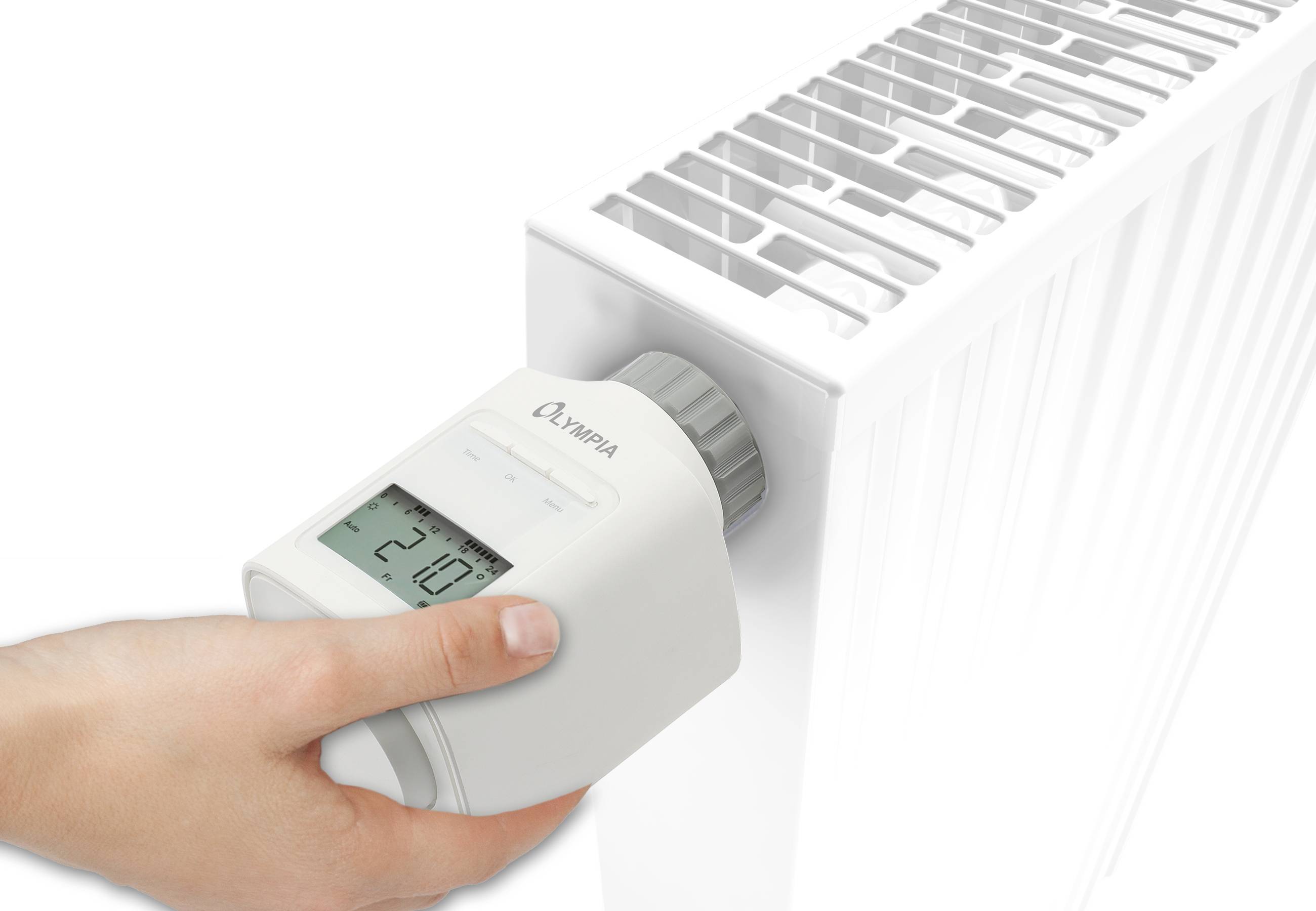

A hand is turning a radiator thermostat, set to 21 degrees Celsius.

1/9

Olympia

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Olympia HT 430-23A radiator thermostat

Saves you up to 30% on your heating billsTemperature profile with up to 9 intervals can be setBoost function for quick heatingNot larger than a standard thermostat headSilent operation

Technical specifications

Product type: Thermostitc radiator valve

Operation type: electronical

Switching cycle: 24h mode
7 day mode

No. of daily switching programs: 9

Operating voltage: 3 V

Compatible with: Heaters

Frost protection: Yes

Factory colour: White

Height: 60 mm

Depth: 94 mm

Width: 58 mm

Dim: (W x H x D) 58 x 60 x 94 mm

Connections (home appliances): M30 x 1.5

Content: 1 pc(s)

Weight: 0.234

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2749359 Olympia 73036 HT 430-23A Thermostitc radiator valve electronical

User & Safety Instructions

User & Safety Instructions 2749359 Olympia 73036 HT 430-23A Thermostitc radiator valve electronical

Description

Olympia HAS 430-23A energy-saving heating controller - heat sink thermostat for regulating the room temperature.

This text is machine translated.

Features

9 Heating-/saving time can be setEasy and intuitive operationValve protection with valve protectionBattery life-span up to 2 years (including 2 x AA-batteries)Well readable LCD-displayEasy to Set UpThread connection M30 x 1.5 mmCompatible with: Heimeier, MNG, Honeywell-Braukmann, Oventrop, Locks, Comap, Valf Sanayii, Idmar, Jaga, Junkers, Pegel, R.B.M., Watts, Danfoss RA heart adapter etc. (incl. 3 adapters: RA, RAV, RAVL)Up to 9 switching intervalsFrost protectionHoliday functionLime protectionDetects open windowsAdjustable control lockAutomatic summer/winter time.

Scope of delivery

1 x energy-saving heating control
3 x adapter (RA/RAV/RAVL)
2 x AA mignon batteries
User manual.

Description

Olympia HAS 430-23A energy-saving heating controller - heat sink thermostat for regulating the room temperature.

This text is machine translated.

Features

9 Heating-/saving time can be setEasy and intuitive operationValve protection with valve protectionBattery life-span up to 2 years (including 2 x AA-batteries)Well readable LCD-displayEasy to Set UpThread connection M30 x 1.5 mmCompatible with: Heimeier, MNG, Honeywell-Braukmann, Oventrop, Locks, Comap, Valf Sanayii, Idmar, Jaga, Junkers, Pegel, R.B.M., Watts, Danfoss RA heart adapter etc. (incl. 3 adapters: RA, RAV, RAVL)Up to 9 switching intervalsFrost protectionHoliday functionLime protectionDetects open windowsAdjustable control lockAutomatic summer/winter time.

Scope of delivery

1 x energy-saving heating control
3 x adapter (RA/RAV/RAVL)
2 x AA mignon batteries
User manual.
