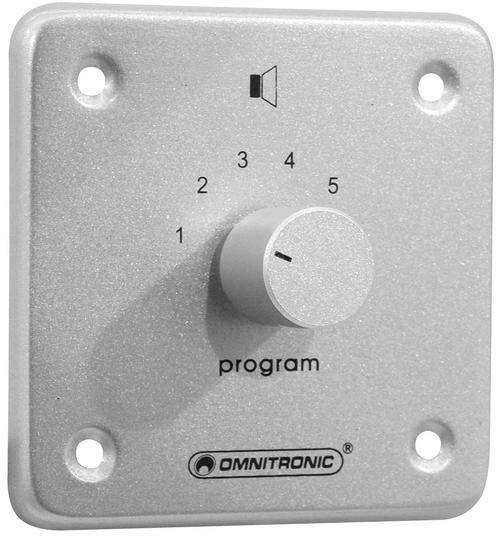

Omnitronic 80711073 Recess-mount PA program selector Silver
EAN:
Part number:
Item no:
Number
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Highlights & Details
Omnitronic ELA-PROGRAM Picker, mono sil

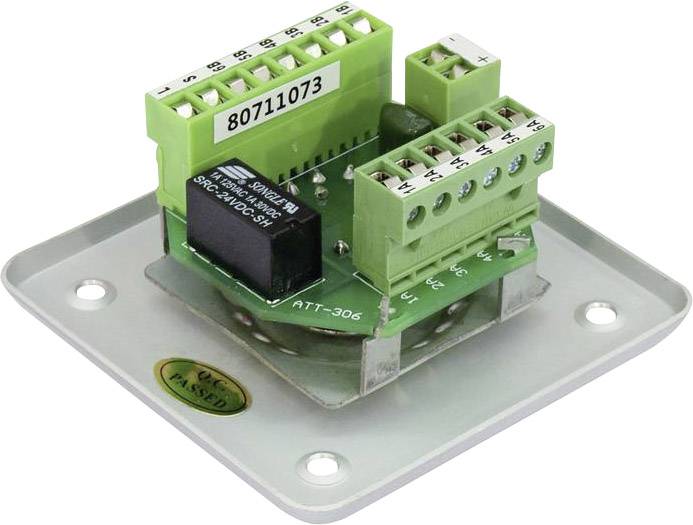

- Built-in program selector with 24 V internal receiver relay
- This text is machine translated.
Technical specifications
- Internal reception relay 24 V DC
- Dimensions 80 x 80 x 67
- Weight: 190 g
- Product type
PA program selector
- Factory colour
Silver
- Mounting type
Recess-mount
- Dim
(W x H x D) 90 x 85 x 90 mm
- No. of programmes
6
- No. of zones
1-zone
- Weight
100 g
- Width
90 mm
- Height
85 mm
- Depth
90 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313316 Omnitronic 80711073 Recess-mount PA program selector Silver
Description
Features
- Built-in program selector with 24 V internal receiver relay

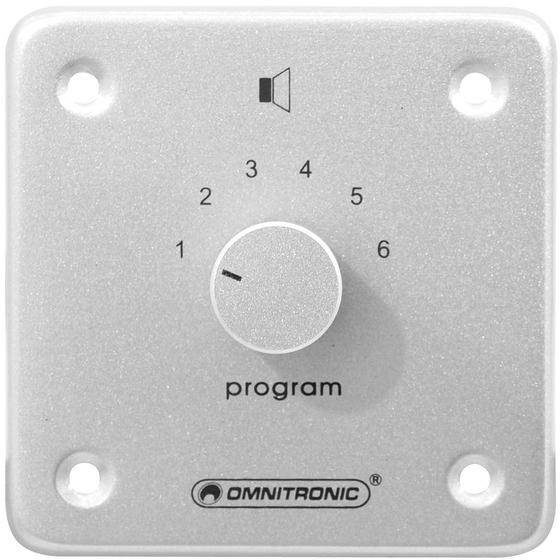

- Switches one of 6 signal sources to a loudspeaker output
- Suitable for 100 V audio technology or other signals
- Front plate and button made of aluminum
- Built-in 24 V internal receiver relay

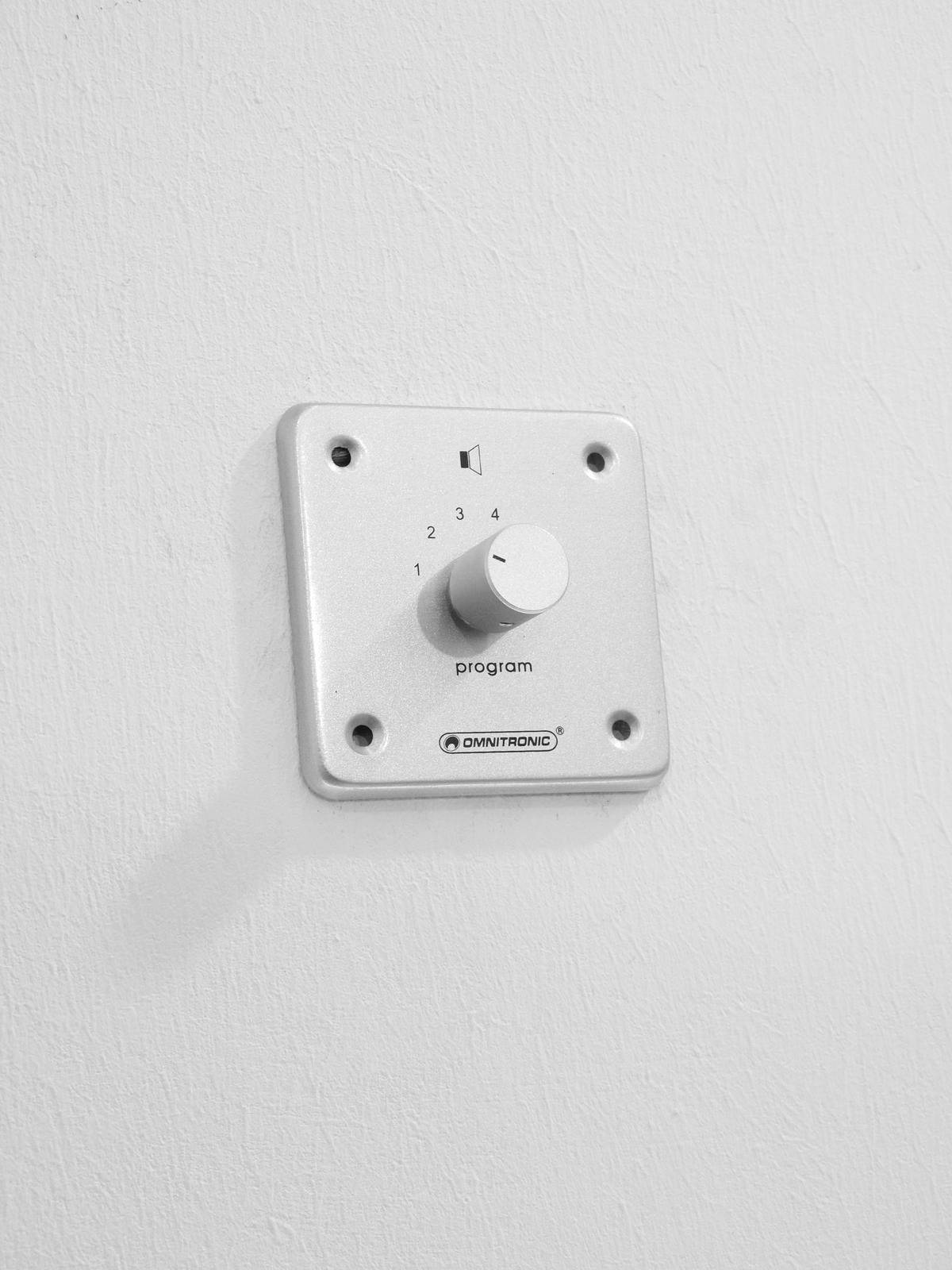

- Flush mounting in any commercially available 60er switch box
- Surface mounting with separately available ELA AP housing
- Installation depth 35 mm

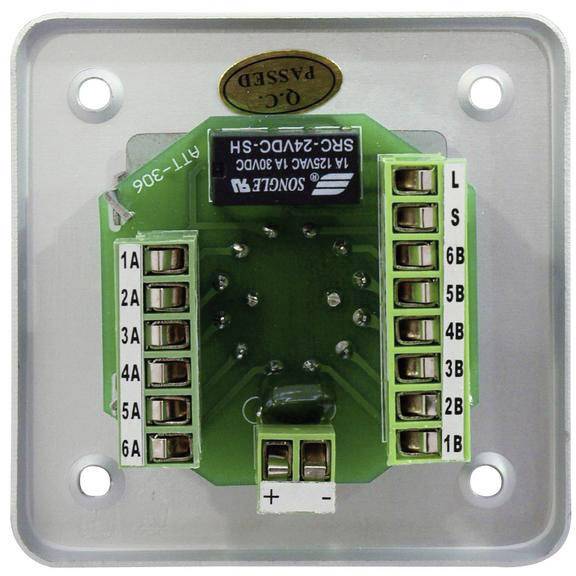

- Screw-plug connection
- Available colors: White, black, silver
