Omnitronic 80711004 Recess-mount PA volume control (mono) White

A white volume control knob with a scale and the label 'Volume', with the 'Omnitronic' logo underneath.
An electrical transformer with terminals for 'IN', 'OUT' and '24V', positioned on a metal plate. CE mark visible.

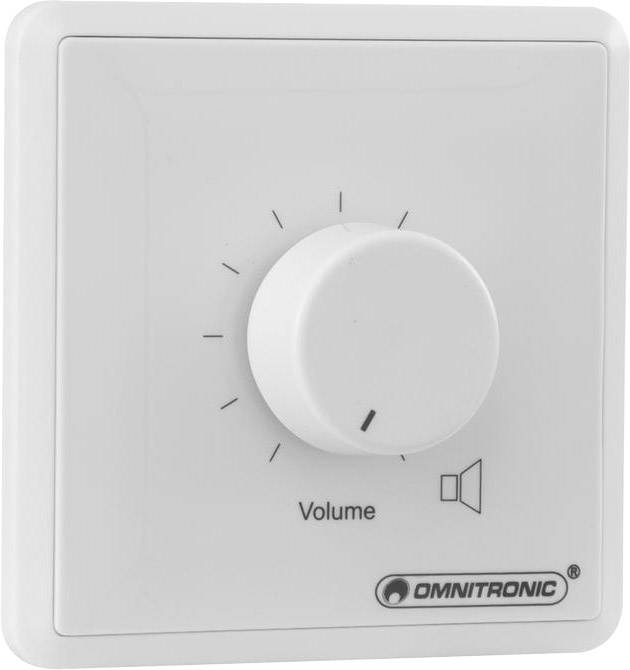

A white volume control panel mounted on the wall, featuring the word 'Volume' and a speaker symbol. The 'OMNITRONIC' brand logo is positioned in the bottom right corner.

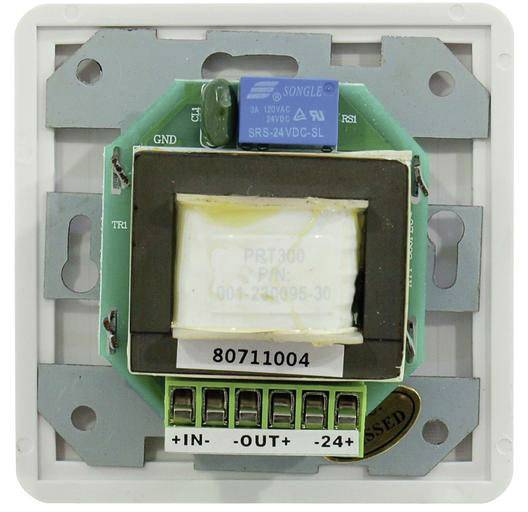

An electrical circuit module with a blue relay on top, a large coil in the centre, and connections for +IN, -OUT, +24V.
1/4
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
50 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 34.99 / piece)
€ 34.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Omnitronic ELA LS-regulator, 30 W mono white

  • Built-in volume controller with 24 V internal receiver relay
  • This text is machine translated.

Technical specifications

  • Nominal load capacity 30 W.
  • Frequency range 50-18,000 Hz
  • Internal reception relay 24 V DC
  • Dimensions 80 x 80 x 67
  • Weight: 200 g
Product type

PA volume control (mono)

30 W

Factory colour

White

Mounting type

Recess-mount

Dim

(W x H x D) 90 x 85 x 90 mm

No. of zones

1-zone

Weight

300 g

Width

90 mm

Height

85 mm

Depth

90 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313135 Omnitronic 80711004 Recess-mount PA volume control (mono) White

Description

Features

  • Built-in volume controller with 24 V internal receiver relay
  • Audio transformer for 100 V transmission technology
  • Attenuation in 11 steps
  • Front plate and button made of white plastic
  • Flush mounting in any commercially available 60er switch box
  • Surface mounting with separately available ELA AP housing
  • Installing depth 45 mm
  • Screw-plug connection
