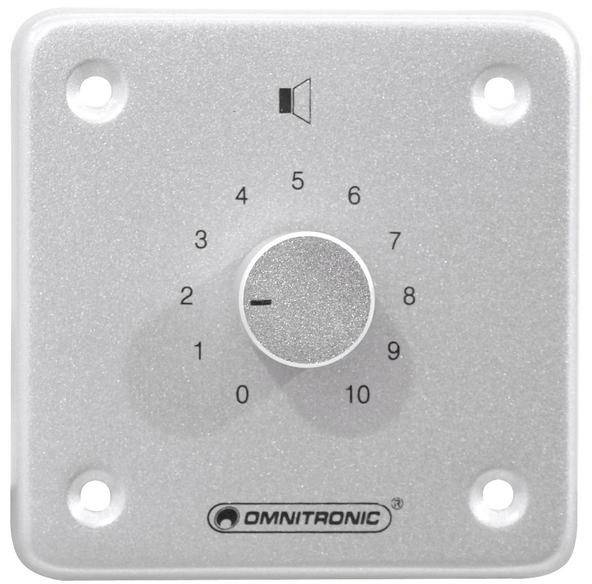

Wall-mounted volume control with a scale from 0 to 10 and 'OMNITRONIC' label.

Wall-mounted volume control with a scale from 0 to 10 and 'OMNITRONIC' label.

Electronic Component: A green circuit board with multiple connections and a transformer mounted on it, secured to a metal plate.

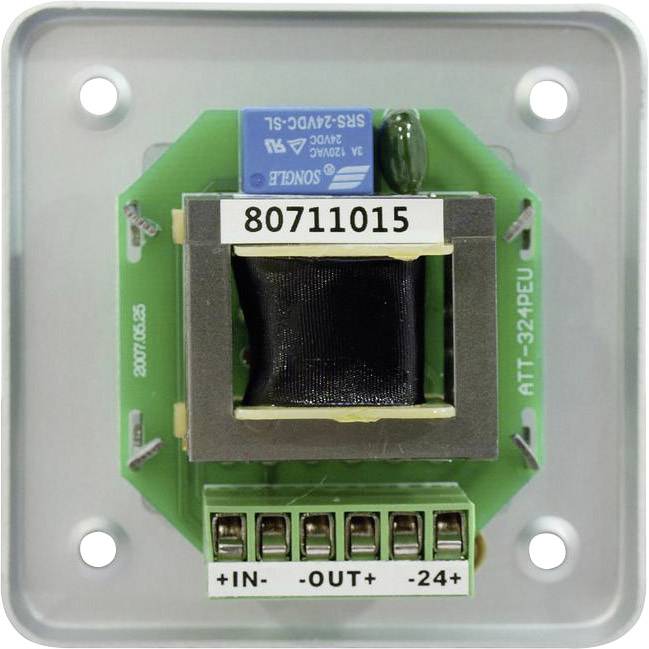

'Electronic component with green circuit board, five terminals at the bottom, blue relay module on top, and white code label in the centre.'

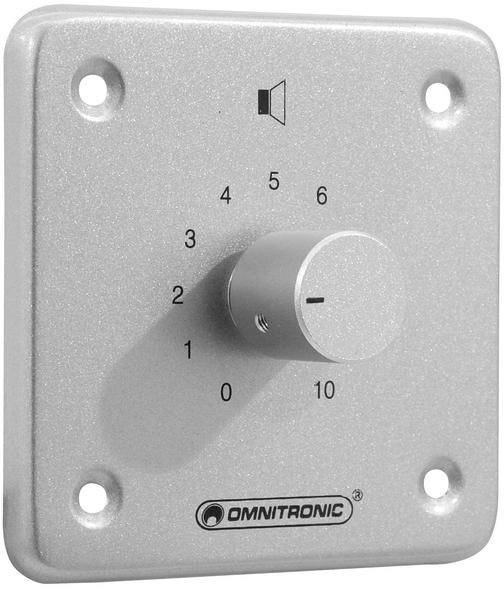

Volume control with a scale from 0 to 10, symbolised by a speaker icon. Silver wall plate with four screw holes.

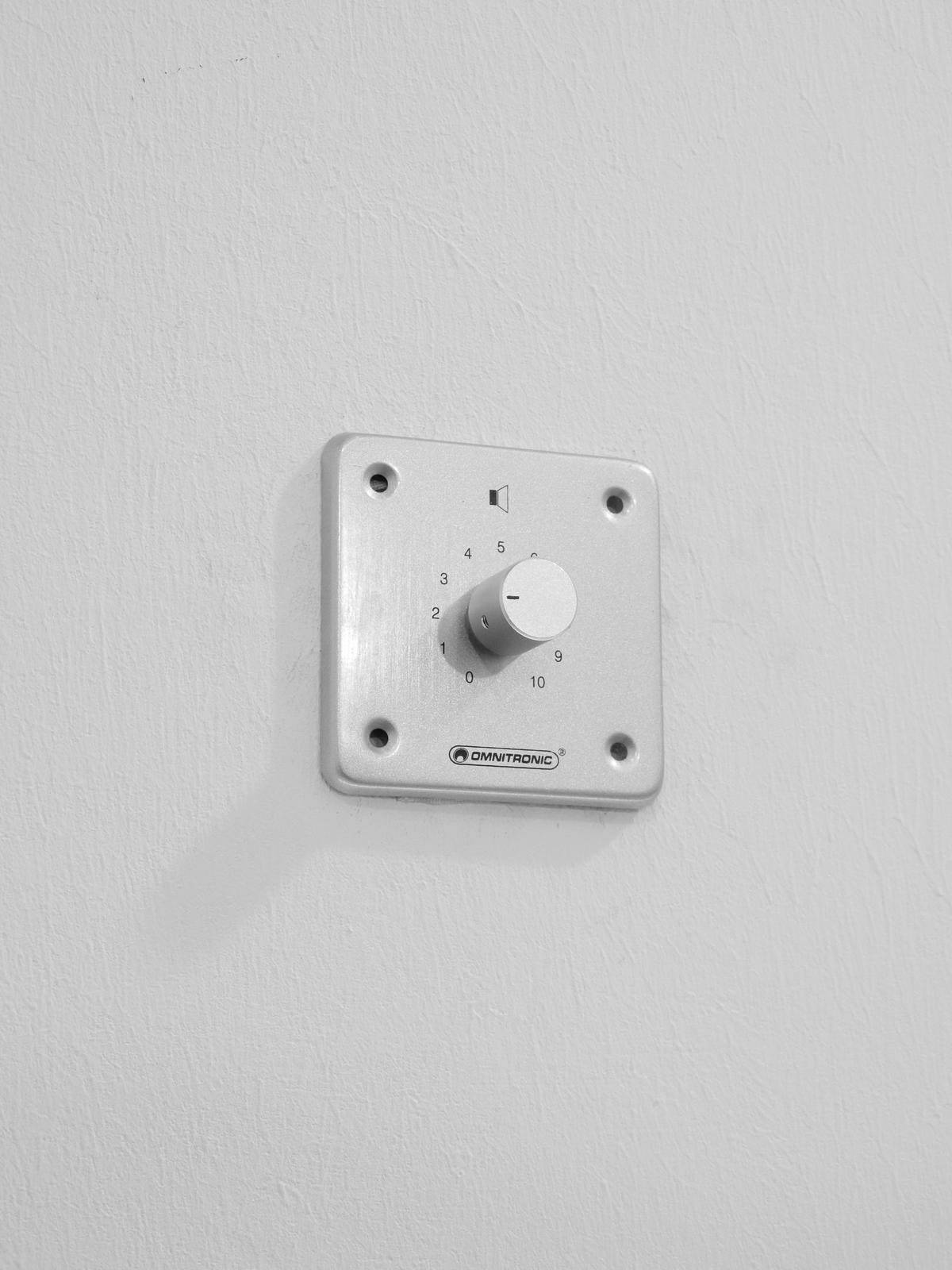

A white rotary dial on the wall with numbers ranging from 0 to 10, potentially used for temperature or volume control.

1/5

Omnitronic

Dispatches on Mon, 28 Sep

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 14.28 / piece)

€ 14.28

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Omnitronic ELA LS-regulator, 10 W mono sil

Built-in volume controller with 24 V internal receiver relay
This text is machine translated.

Technical specifications

Nominal load capacity 10 W
Frequency range 50-18,000 Hz
Internal reception relay 24 V DC
Dimensions 80 x 80 x 67
Weight: 190 g

Product type: PA volume control (mono)

: 10 W

Factory colour: Silver

Mounting type: Recess-mount

Dim: (W x H x D) 90 x 850 x 90 mm

No. of zones: 1-zone

Weight: 200 g

Width: 90 mm

Height: 850 mm

Depth: 90 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313314 Omnitronic 80711015 Recess-mount PA volume control (mono) Silver

Description

Features

Built-in volume controller with 24 V internal receiver relay
Audio transformer for 100 V transmission technology
Attenuation in 11 steps
Front plate and button made of aluminum
Flush mounting in any commercially available 60er switch box
Surface mounting with separately available ELA AP housing
Installing depth 45 mm
Screw-plug connection.
