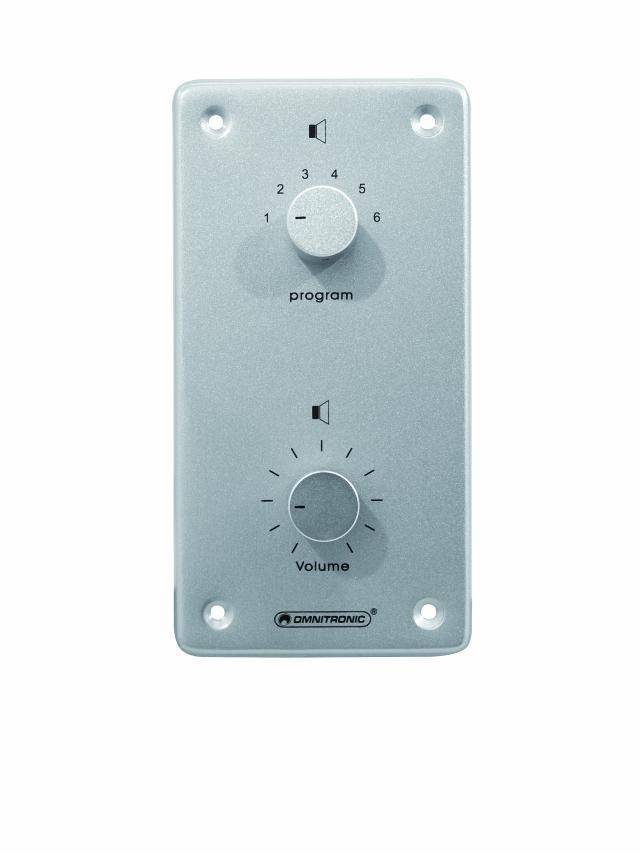

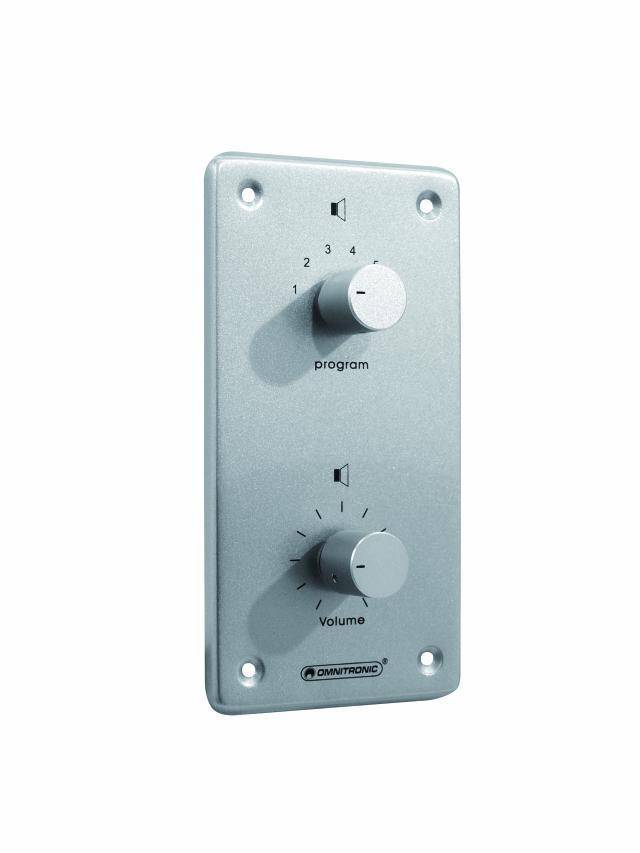

Omnitronic 80711095 Recess-mount PA volume control and selector Silver, Aluminium
EAN:
Part number:
Item no:
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Highlights & Details
Omnitronic PA SPEAKER control/prog voters 10 W/s

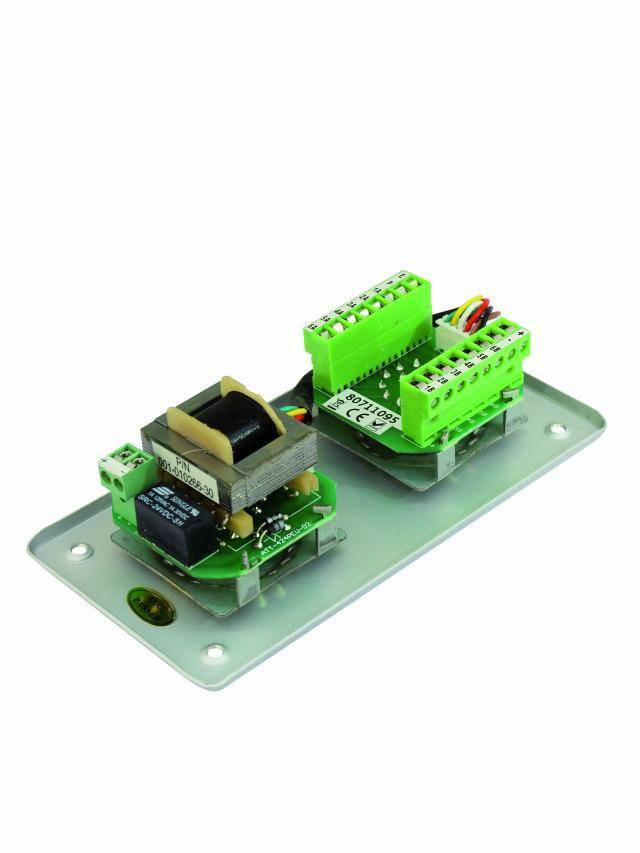

- Built-in high-volume controller and the program voters with 24-V-duty reception relay
Technical specifications
- Frequency range: 50-18,000 Hz
- Nominal load capacity: 10 W
- Mandatory reception relay: 24 V DC
- Dim
(W x H x D) 80 x 154 x 67 mm
- Factory colour
Silver
Aluminium
- Depth
67 mm
- Height
154 mm
- Width
80 mm
- Mounting type
Recess-mount
10 W
- Weight
300 g
- Product type
PA volume control and selector
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313317 Omnitronic 80711095 Recess-mount PA volume control and selector Silver, Aluminium
Description

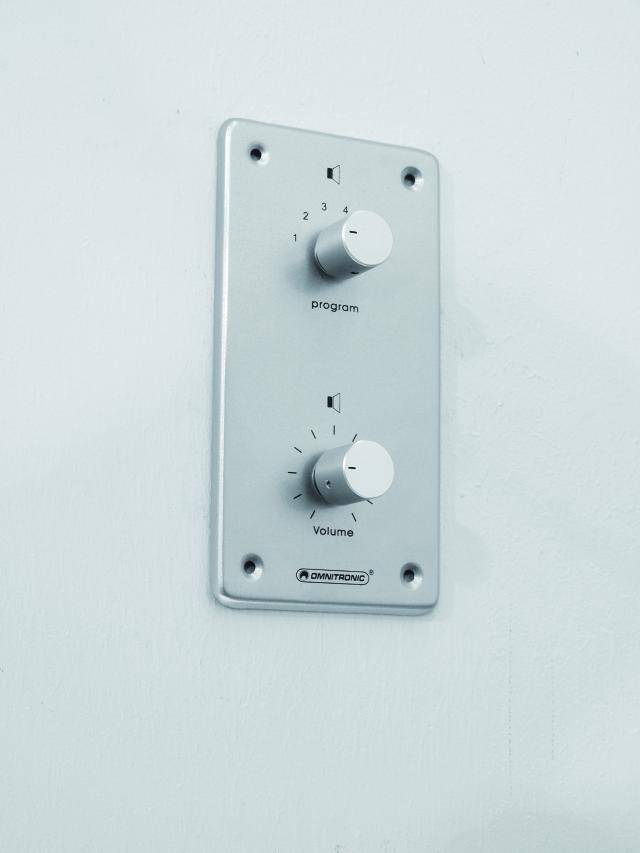

Built-in high-volume controller and the program voters with 24-V-duty reception relay · Combination of ELA program selector for 6 signal sources and PA volume control · Suitable for 100V audio technology or other signals · Front panel and button made of aluminum · Built-in 24-V-duty reception relay · Slowdown in 11 steps · Flush-mounted in any commercially available 60-double switch box · Surface mounting with separately available ELA AP-housing · Installing depth 45 mm · Screw plug connection
