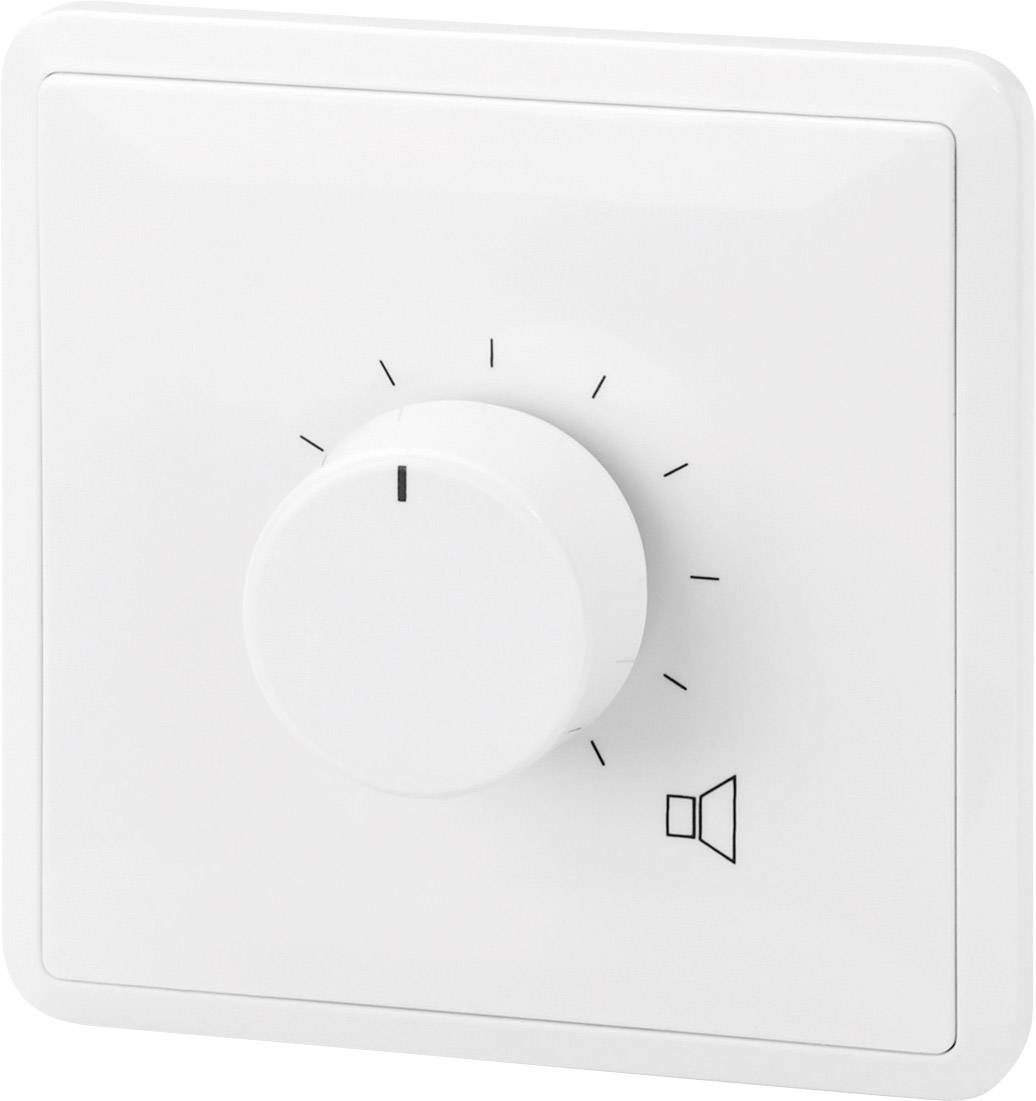

Monacor Recess-mount PA volume control White
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 33.99 / piece)
€ 33.99
incl. VAT
14-day return policy included
Highlights & Details
Monacor ATT-306PEU ELA attenuator
- Slowdown in 10 levels. Level 0 is off
- For 100-V transformer technology
- Front panel and button from snow-white plastic
Technical specifications
- Mandatory reception: yes
- Mounting depth: 45 mm
- Surface-mount housing: ATT-300
- Frequency range 50 - 18 000 Hz
- Product type
PA volume control
- Factory colour
White
- Mounting type
Recess-mount
- Dim
(W x H x D) 80 x 80 x 67 mm
- Weight
190 g
- Width
80 mm
- Height
80 mm
- Depth
67 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 314150 Monacor Recess-mount PA volume control White
User & Safety Instructions
User & Safety Instructions 314150 Monacor Recess-mount PA volume control White
Description
Mounted PA Volume control with 24-V-duty reception relay.
This text is machine translated.
This text is machine translated.
Features
- Flush mounting in standard 60-switch boxes.
- Surface mounting with matching, optionally available casing ATT-300.
- Screw plug connection.
