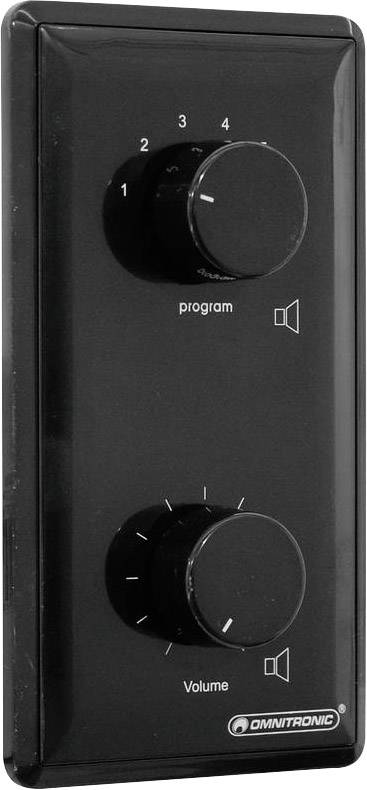

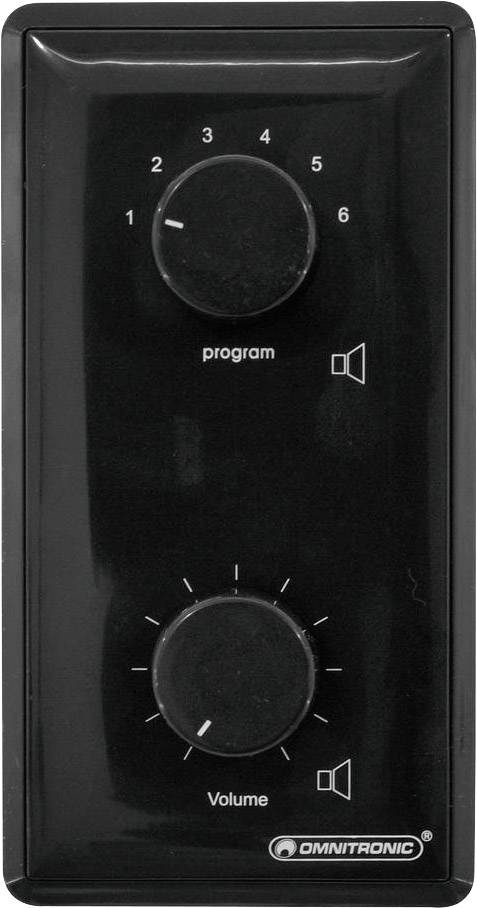

Omnitronic 80711088 Recess-mount PA program selector Black
EAN:
Part number:
Item no:
Number
Total (€ 17.99 / piece)
€ 17.99
incl. VAT
14-day return policy included
Highlights & Details
Omnitronic ELA-LS-Controller/Prog-Dialer 5 W/sw
- Built-in volume control and program selector with 24 V internal receiver relay
- This text is machine translated.
Technical specifications
- Frequency range 50-18,000 Hz
- Nominal load capacity 5 W.
- Internal reception relay 24 V DC
- Dimensions 80 x 154 x 67
- Weight: 300 g
- Product type
PA program selector
- Factory colour
Black
- Mounting type
Recess-mount
- Dim
(W x H x D) 165 x 70 x 90 mm
- No. of programmes
6
- No. of zones
1-zone
- Weight
300
- Width
165 mm
- Height
70 mm
- Depth
90 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313162 Omnitronic 80711088 Recess-mount PA program selector Black
Description
Features
- Built-in volume control and program selector with 24 V internal receiver relay
- Combination of ELA program selector for 6 signal sources and ELA volume control
- Suitable for 100 V audio technology or other signals
- Front plate and buttons made of black plastic

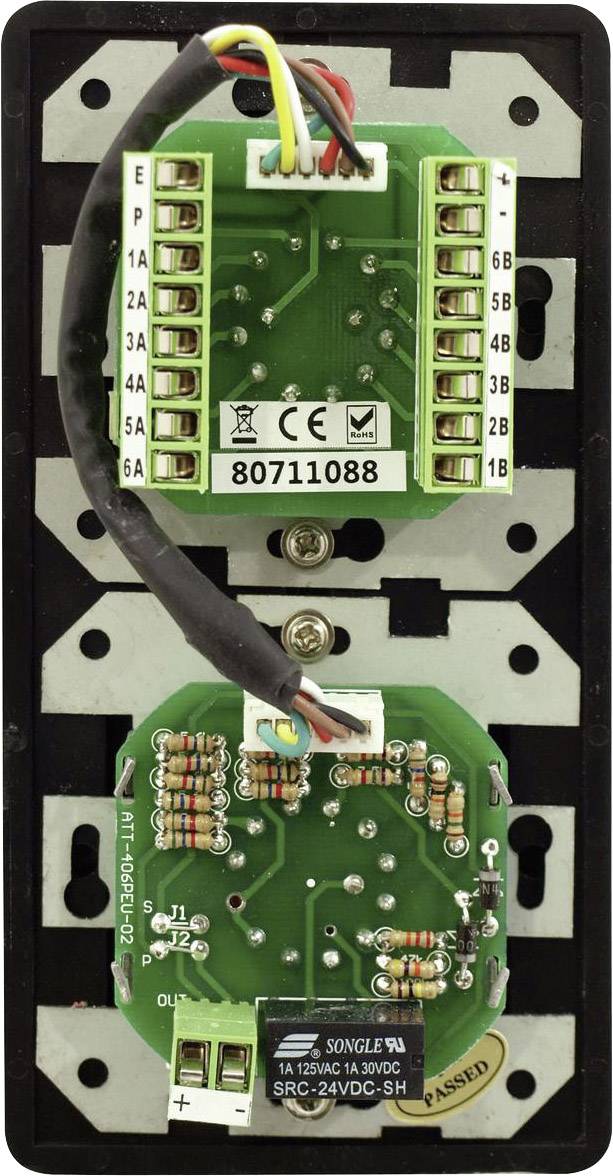

- Built-in 24 V internal receiver relay
- Attenuation in 11 steps
- Flush mounting in any commercially available 60er double switch socket
- Surface mounting with separately available ELA AP housing
- Installing depth 45 mm
- Screw-plug connection.
