Name: Osram Automotive BATTERYcharge 901 OEBCS901 Charger, Automatic charger 6 V, 12 V 1 A
Brand: Osram Automotive
SKU: 2613273
Availability: InStock

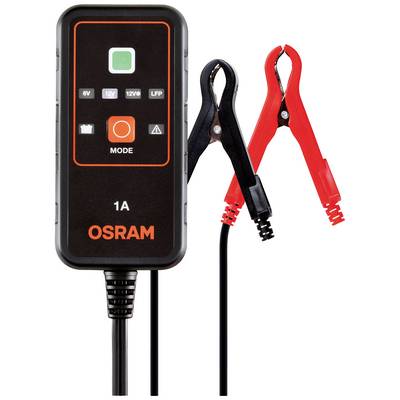

A battery charger with two crocodile clips in black and red. The display shows various modes for 6V, 12V and 12V LFP.

A black power adapter with EU plug and cable, side view. It has a ribbed casing for better grip.

Black power adapter with Euro plug, shown from the side.

A black power supply for European plug sockets with cable connection.

Osram Battery Charger Packaging for 6V/12V 1A, featuring an illustration of the device and clamps, displaying key features and warranty details.

Osram BATTERYcharge 901 Battery Charger with Clips, Suitable for Cars and Motorcycles, 6V/12V, 1A. Packaging Shows Application Instructions.

Osram Battery Charger with Display and Clamps. Supports 6V and 12V Batteries. Suitable for Gel, AGM, LFP.

Black control interface of a battery charger with a glowing green indicator, various voltage modes, and a 'MODE' button.

A black OSRAM charger with orange lettering is lying on a surface. A cable is connected to it.

'Close-up of a battery charger with 6V, 12V, 12V AGM and LFP modes. A green and a red light along with mode and warning symbols are visible.'

A black OSRAM charger displays battery charging modes for 6V, 12V, 12V/8A and LFP. Display illuminates green, with a "MODE" button.

Black power adapter with Euro plug and ribbed casing, side view. Suitable for charging electronic devices.

A car with its bonnet open is connected to a charging point. The charger is wall-mounted and in operation.

A hand connects a black jump lead to a car battery. A red cable is connected on the right side of the image.

A hand is holding an OSRAM charging control unit in front of a wall socket. Several buttons are visible. The scenario could relate to an electric vehicle.

An Osram battery charger is plugged into a wall socket. In the foreground, blurry red clips are visible.

A charger is plugged into a socket, while clamps are attached to a car battery, possibly for charging.

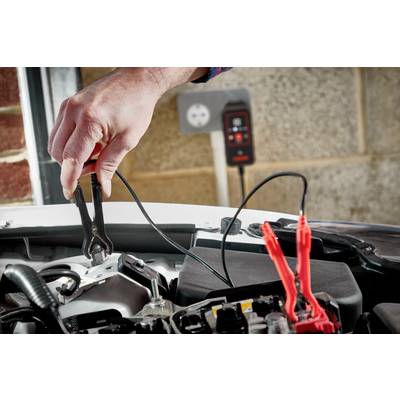

A hand is holding a jump lead clip on a car battery, with a second clip already connected. A charger is visible in the background.

1/20

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Intelligent battery charge 901 charger

Compatible with stop/start function
9Stufen charging procedure for lead acid batteries
7Stufen lithium charging profile
Bad weather charging mode
LC screen
Polarity reversal and short-circuit protection
Automatically sets to long-term maintenance mode
This text is machine translated.

Technical specifications

Product type: Charger

Dim: (L x W x H) 55.9 x 40 x 109.90 mm

Battery voltage: 6 V
12 V

Operating voltage: 220 - 240 V

Recommended battery capacity at 12 V max.: 25 Ah

Recommended battery capacity at 12 V min.: 4 Ah

Suitable for: VRLA AGM
PbCa
SLA
Lead acid
VRLA AGM
Lithium

Weight: 330 g

Features: Suitable for start-stop systems
Battery test
Refresher/regenerator
Battery tester
Charge monitoring
Multiple charging modes

Battery charging function: 9 settings & 7 levels

Charging current at 12 V: 1 A

Charging current at 6 V: 1 A

Width: 40 mm

Height: 109.90 mm

Length: 55.9 mm

: IP65

Cable length: 1.25 m

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2613273 Osram Automotive BATTERYcharge 901 OEBCS901 Charger, Automatic charger 6 V, 12 V 1 A

Warranty Terms

Warranty Terms 2613273 Osram Automotive BATTERYcharge 901 OEBCS901 Charger, Automatic charger 6 V, 12 V 1 A

Description

The OSRAM Battery Charger 901 is an intelligent 1A charging and battery maintenance device for 6V and 12V vehicles such as motorcycles and most smaller vehicles. At the push of a button a 7-stage charging cycle is started for lithium batteries and a 9-stage charging cycle is started for lead-acid/AGM batteries.Simply connect with the knowledge that the charger charges and maintains your vehicle battery: It automatically switches to long-term maintenance mode, as soon as the battery is fully charged. Features a digital display for simplifying the charging process and a number of safety functions including polarity reversal protection and short-circuit protection.

This text is machine translated.

Features

1A Charging power: Provides voltage for charging smaller battery sizesPlug directly into a 230 V outlet: Suitable for long-term maintenance of the batteryFor 6V and 12V vehicles with up to 1.2 liters capacity: Specially designed for motorcycles and smaller vehiclesLED display: Easy reading of the charging status of the batteryStart/Stop compatible: 7-stage charging cycle for lithium batteries and 9-stage cycle for lead-acid/AGM for safe charging

Scope of delivery

With 6 bits. Terminals and O-ring connectors

Description

Features

1A Charging power: Provides voltage for charging smaller battery sizesPlug directly into a 230 V outlet: Suitable for long-term maintenance of the batteryFor 6V and 12V vehicles with up to 1.2 liters capacity: Specially designed for motorcycles and smaller vehiclesLED display: Easy reading of the charging status of the batteryStart/Stop compatible: 7-stage charging cycle for lithium batteries and 9-stage cycle for lead-acid/AGM for safe charging
