Buy Osram Automotive Working light 12 V, 24 V LEDriving® Cube PX3500 Ultra Wide LEDPWL 102-UW Wide angle close range illumin

OSRAM LED headlights with four luminous lenses in a robust, square housing. Suitable for powerful illumination.

Black square LED light with four light segments. The manufacturer name 'OSRAM' is centrally positioned on the front side.

LED work light by OSRAM with robust housing, suitable for vehicles; on the right, the packaging with product details and application examples.

Osram LED Work Light PK3500 pictured on black cardboard, displaying lumens, light distance and application areas such as construction and agricultural machinery.

Product packaging for OSRAM LEDriving Cube PX3500 Ultra Wide. Shows an LED light with 3500 lumens and application image with excavator.

Exploded view diagram of a technical device with multiple components: frame, filter, seal, housing, fixing screws.

A black, technical device with vertical ribs, connections and screw points, potentially part of an electronic system.

A square LED work light from OSRAM with four illuminating segments and a robust mounting bracket.

A bright square light in the centre of a grey background, radiating forwards and illuminating the surroundings.

'Two square LED work lights by OSRAM. One shows the front with four lenses, the other the side with mounting.'

A black, rectangular electronic device with a ribbed casing, mounted on a metal bracket. Front view.

A metallic, black device with a ribbed structure and mounting element. Could be part of a technical or industrial equipment.

A square spotlight with the 'OSRAM' label in the centre, mounted on a metal bracket with screw fixings.

A square, illuminated device with 'OSRAM' written in the centre, emitting white light.

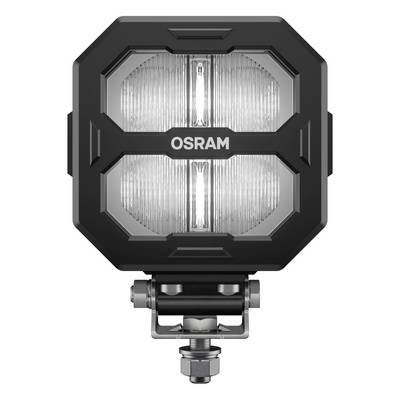

A square LED work light by Osram with four lenses and a robust housing, suitable for vehicles and work areas.

'OSRAM' LED Work Light, square, black with metal base, suitable for industrial applications or vehicle lighting.

Black, square device with ribbed structure and connections on the sides. Mounted with two metal bolts, likely an electronics enclosure.

A black, robust electronic device with metallic mountings and connections; possibly a radio transceiver.

Technical drawing of a rectangular object with dimensions: width 117.10 mm, depth 64.16 mm, and height 113.42 mm.

1/20

Fast track dispatch on Fri, 11 Sep

10 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 82.34 / piece)

€ 82.34

plus VAT.

Only 10 Piece(s) available

Report legal concerns

Highlights & Details

Osram Automotive Working light 12 V, 24 V LEDriving® Cube PX3500 Ultra Wide LEDPWL 102-UW Wide angle close range illumination (W x H x D) 68.4 x 113.42 x 117.1 mm 3500 lm 6000 K

Ultra-wide radiation characteristic: For an especially wide-area and especially wide light distributionMatrix portfolio: Vehicle-specific lighting design can be individually combined. Mix & match Vary and combineIP & IK Protection Classes: Tested and validated in a DIN-certified environmental simulation laboratory with regard to extreme external influences such as water, dust, impact, heat, Cold, permanent vibrations and much moreEfficient reflector lens design with powerful OSRAM LEDs. Three mounting options available: Standard/flexible, heavy-duty mounting and direct mountingAdditional working headlights without ECE approval for use as working headlights are approved according to StVZO §52 (7) for use on every vehicle. However, they must not be switched on while driving; furthermore, individual special regulations and laws of the countries outside of Germany must be observed.

Technical specifications

Dim: (W x H x D) 68.4 x 113.42 x 117.1 mm

Product type: Working light

Fastening method: Screw mount

Bulb type: LED (monochrome)

Operating voltage: 12 V
24 V

Weight: 700 g

: 33 W

: 6000 K

Total luminous flux: 3500 lm

Width: 68.4 mm

Height: 113.42 mm

Depth: 117.1 mm

Lenses for: Wide angle close range illumination

ECE type approval labels: R10

Mounting site: front
rear
lateral

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2798474 Osram Automotive Working light 12 V, 24 V LEDriving® Cube PX3500 Ultra Wide LEDPWL 102-UW Wide angle close range illumin

Warranty Terms

Warranty Terms 2798474 Osram Automotive Working light 12 V, 24 V LEDriving® Cube PX3500 Ultra Wide LEDPWL 102-UW Wide angle close range illumin

Description

Professional light for professional workWith the portfolio of the OSRAM LED-driving Professional Series PX work lights, it is now possible to find exactly the right lighting for a variety of special professional tasks and applications. The total of 16 working headlights are excellent with maximum optical efficiency, effectiveness and homogeneous light distribution. The modular series focuses on the most important aspects of working light usage: Lighting, performance, quality, shape, durability, Functionality and thus can also result in increased safety at work for you and others. The optimal factors can be selected and prioritized for each corresponding application; thus a complete vehicle-specific lighting set-up can be put together with these work lights, which is perfectly applicable to the respective individual requirements and requirements. The headlights are suitable for 12V and 24V vehicles and there are a total of four radiation characteristics - Flood, Spot, Wide and Ultra Wide - as well as four power levels - 1500lm, 2500lm, 3500lm and 4500lm - available for each lamp. In addition, they can be mounted in three different ways: Direct mounting, flexible standard mounting and heavy-duty mounting – here too OSRAM has developed specially designed brackets and also a cable with DT-connector. The Professional Series has been validated in accordance with the highest IP and IK protection classes IP6K8 and IP6K9K and CISPR25 Class 5 and can therefore meet the highest OE standards and requirements of the automotive industry. OSRAM provides a 5 year warranty on these products.Additional working headlights without ECE approval for use as working headlights are approved according to StVZO §52 (7) for use on every vehicle. However, they must not be switched on while driving; furthermore, individual special regulations and laws of the countries outside of Germany must be observed.Exact conditions under www.osram.de/am-garantie

This text is machine translated.
