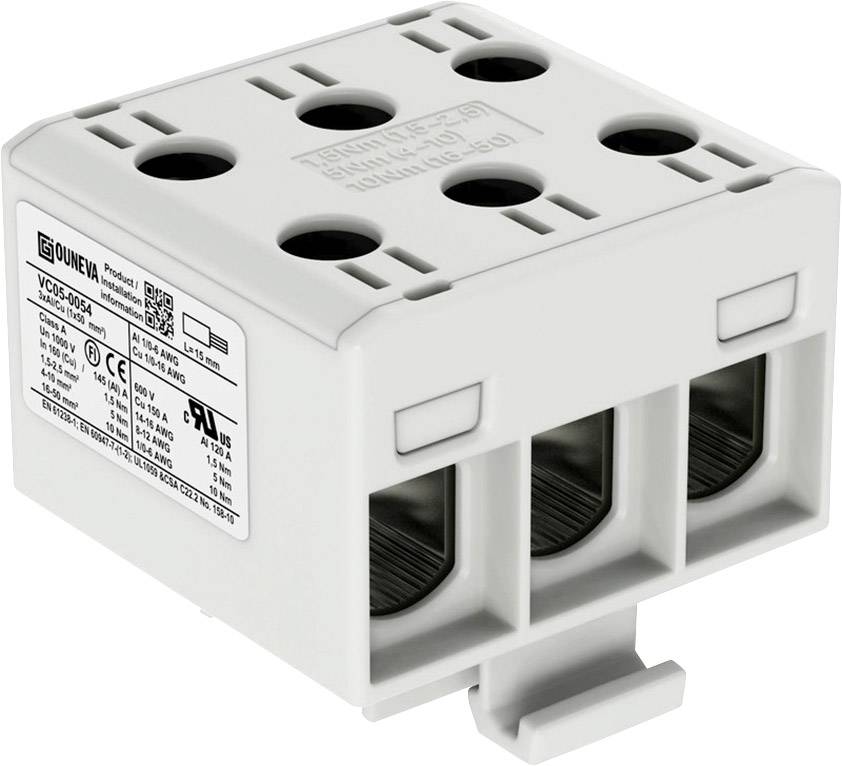

Ouneva Group VC05-0054 Distribution block Screws Grey 1 pc(s)
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
160 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 14.99 / piece)
€ 14.99
incl. VAT
14-day return policy included
Highlights & Details
- VC05-0054
Technical specifications
- Product type
Distribution block
- Connection
Screws
- Cross section (flexible) (min.)
1.50 mm²
- Cross section (flexible) (max.)
50 mm²
- Cross section (inflexible) (min.)
1.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- Number of pins
3
- Factory colour
Grey
- Nominal current
160 A
- Nominal current - rounded value
160 A
- Nominal voltage
1000 V
- Manufacturer part #
VC05-0054
- Content
1 pc(s)
- Type
VC05-0054
- RoHS-compliant
Yes
- Connector colour
Grey
- Insulation material
Polyamide
- Fitting type (details)
Top hat DIN rail mounting
- Temperature range
+80 °C
Documents & Downloads
Datasheet
Datasheet 2255408 Ouneva Group VC05-0054 Distribution block Screws Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2255408 Ouneva Group VC05-0054 Distribution block Screws Grey 1 pc(s)
